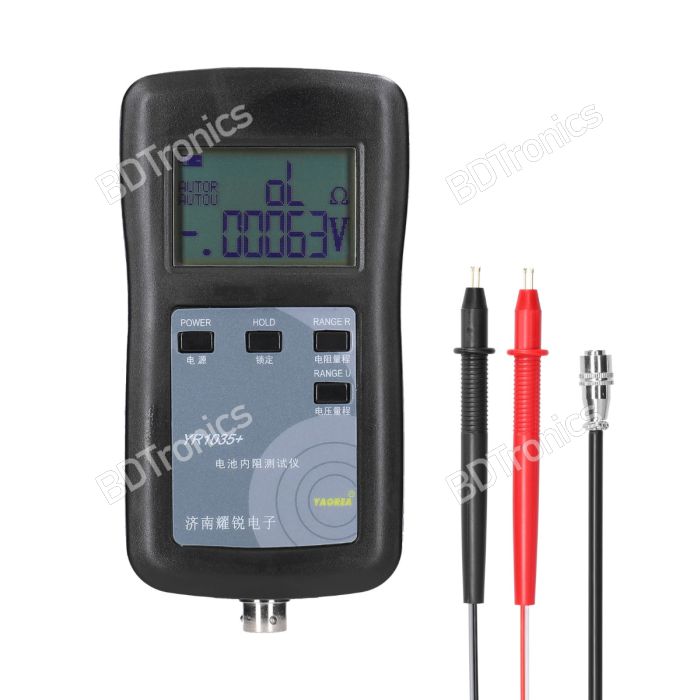

YR1035+ Precision Battery Internal Resistance Test Instrument

YR1035+ multimeter, battery internal resistance tester is a true four-wire internal resistance tester, which can test internal resistance and voltage value at the same time. It can measure resistance ranges from .01 milliohm to 200ohm accurately and displays result on the screen.

In stock

SKU PRD-00001197
Delivery Info
truck-fast
Inside Dhaka: 1-2 days
Express (Dhaka): 24 hours
Order before 12.00PM
Outside Dhaka: 2-3 days
hand-holding-dollar
Cash on delivery all over BD
Quality
award
100% authentic product
circle-check
Quality product guaranteed
Service
repeat
7 days easy return
credit-card
Safe & secure payment

Customer Reviews

Price
star star star star star
Quality
star star star star star
Value
star star star star star
জোস মিটার emoji-happy
Review by
কয়েকদিন আগে আমি মিটারটি হাতে পেলাম। সবকিছু ঠিকঠাক মত পাইছি। ব্যাটারি নিয়ে কাজের জন্য এই মিটারের তুলনা নেই। অনেক দিন থেকে খুজি পেয়েছি। প্রইসটা রিজনেবল.
Price
star star star star star
Quality
star star star star star
Value
star star star star star
Good tester emoji-happy
Review by
product ta original. lithium battery test korlam .6milli Ohm resistance dekhasse.. areka .3milliohm. reading accurately disse. sobai nite paren
Price
star star star star star
Quality
star star star star star
Value
star star star star star
precise reading emoji-happy
Review by
This tester is working as expected. Reading is precise. It can work upto a sub milliohm level accurately. Very handy and useful.

3 Item(s)

Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

Product Details

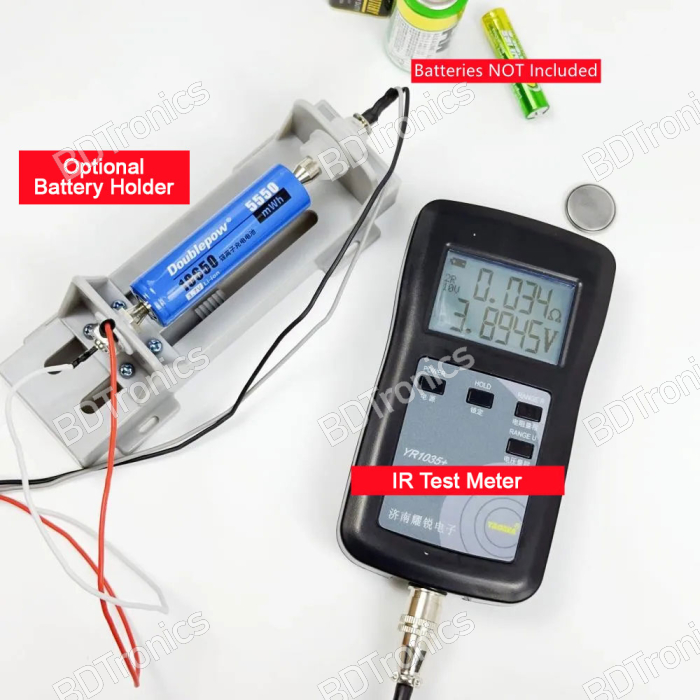

This tester is suitable for battery matching, battery performance testing, battery screening, assessment of battery condition and lifetime, etc. It can measure Lead acid, Li-ion (Lithium ion), LiPo (Lithium polymer), LiFePO4 (Lithium ion phosphate), Alkaline, Dry Cell battery, Nickel Metal Hydride (NiiMH), Nickel Cadmium (NiCd), Button Cell, etc.

It's widely used by the Solar, IPS, UPS industries, etc. This is a must have tool for the individuals/ companies who work with batteries.



Features:

  • True 4-wire AC sinusoidal measurements effectively refrain the effects of test leads and contact resistance.
  • Two function interfaces, battery sorting function.
  • Built-in rechargeable battery can be charged via USB cable/ mobile phone charger. It has low power consumption + multiple power saving options.
  • The test range is up to 200 ohms with a minimum resolution of 0.01 milliohms and less than 5 milliohms.
  • Press HOLD to enable the ZR function to measure internal resistance as low as 0.30-0.50 milliohms.
  • Handmade, the appearance of the right side is overly cautious.
  • True four-wire 1KHz AC sinusoidal battery internal resistance meter ranges from .01 milli ohms to 200 ohm.
  • It can measure Lead acid, Li-ion (Lithium ion), LiPo (Lithium polymer), LiFePO4 (Lithium ion phosphate), Alkaline, Dry Cell battery, Nickel Metal Hydride (NiiMH), Nickel Cadmium (NiCd), Button Cell, etc.
  • The ZR function measures interneal resistance below 5 ohms more precisely.



Technial Specifications:

  • Material: ABS
  • Color: black
  • Battery: 1 * lithium battery, 2000mAh (included)
  • Accuracy format: ±([accuracy percentage]+[least significant digit])
  • Range: 20mΩ/ 200mΩ/ 2Ω/ 20Ω/ 200Ω
  • Maximum resolution: 0.01mΩ/ 0.1mΩ/ 1mΩ/ 10mΩ/ 0.1Ω
  • Accuracy: 0.7%+7/ 0.5%+5/ 0.5%+5/ 0.5%+5/ 0.6%+5
  • Display mode: 22.00mΩ (when ZR function is enabled)/ 220.0mΩ/ 2.200Ω/ 22.00Ω/ 220.0Ω
  • In the range of 5%-95% of the gear, when it is not within this range (less than 5% of the range of the gear range, or greater than 95% of the range of the gear range), the error may be greater than the above accuracy.
    Voltage measurement: ±(% reading +% range)
  • Range: 1V/ 10V/ 100V
  • Maximum resolution: 0.00001V/ 0.0001V/ 0.001V
  • Accuracy: 0.15+0.015/ 0.15+0.010/ 0.15+0.015
  • Display mode: .99999V/ 9.9999V/ 99.999V
  • Positive and negative symmetry error ±(0.012% + 5 words)
  • Temperature drift within normal use temperature (10℃-40℃) 100ppm/℃
  • Maximum voltage between any terminals: 100V
  • Display: internal resistance figures: 2000 counts Voltage figures: 99999 counts update 4 times per second
  • Temperature: working: 10℃-40℃, storage: -20℃-60℃ internal resistance temperature coefficient: 0.1 * (prescribed accuracy)/℃ (<18℃ or >28℃)
  • Power consumption:
    <60mA (200mΩ and above range, when the power is 3.7V, the backlight is off)
    <120mA (20mΩ range, when the power is 3.7V, the backlight is off)
    <10mA (enter low power consumption mode)
    0mA (shutdown)Package size: 120 * 60 * 40mm / 4.7 * 2.4 * 1.6in
  • Package weight: 320g / 11.3ounce



Packing List:

  • 1 x Tester
  • 1 x Pair of Probes
