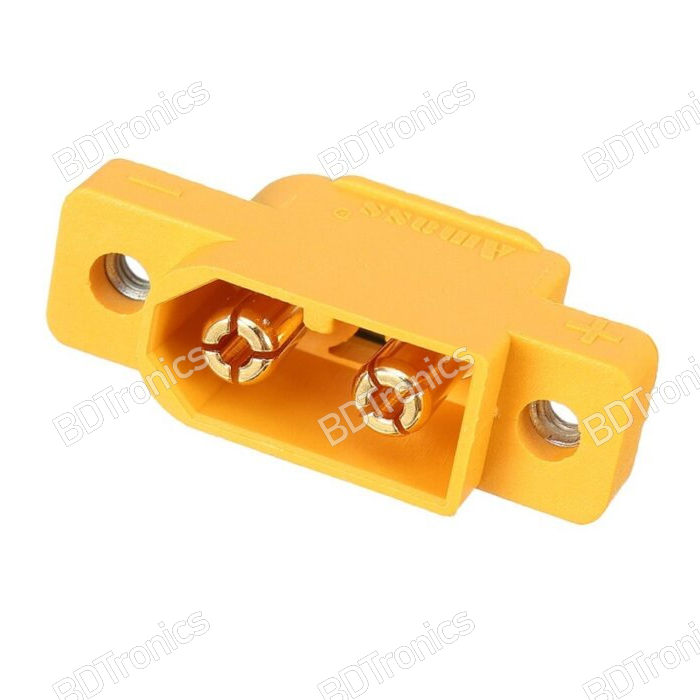

XT60E-M Panel Mountable XT60 Male Connector designed for secure panel mounting in high current DC power applications including FPV drones, RC vehicles, robotics, battery systems, power distribution boards, and DIY electronics projects. Strong mechanical mounting structure with M3 screw holes ensures stable installation even in high vibration environments such as drones, RC cars, electric vehicles, and industrial electronics.

Manufactured using heat resistant PA66 nylon housing and gold plated brass contacts to ensure low resistance electrical connection, efficient current transfer, and long service life. XT60E-M panel mount connector widely used for LiPo battery connections, DC power distribution systems, charger interfaces, power modules, robotics platforms, and embedded electronics systems.

XT60E-M panel mount XT60 male connector available from BDTronics Bangladesh for electronics engineers, drone builders, robotics developers, and hobbyists who require reliable high current connectors for permanent installations.

The compact design allows easy installation on battery enclosures, power distribution boards, charger panels, power supply housings, robotics systems, and embedded control units. Gold plated contacts ensure minimal voltage drop and reliable power delivery even under heavy current load.

BDTronics supplies genuine XT60E-M panel mount connectors suitable for high reliability power systems used in drones, battery packs, robotics, electric vehicles, DIY power projects, and embedded electronics development.

Features:

• Panel Mount Design with M3 Screw Holes for secure installation

• XT60 Male Connector Interface compatible with standard XT60 female connectors

• High Current Low Resistance Power Connection

• Heat Resistant Nylon Housing (PA66) for durability and electrical insulation

• Gold Plated Brass Contacts for high conductivity and minimal voltage drop

• Strong Mechanical Stability for vibration resistant installation

• UL94 V-0 Flame Retardant Material for improved safety

• Reliable connection for LiPo battery power systems

• Suitable for drones, RC vehicles, robotics, battery packs, power modules

• Compact size ideal for embedded electronics and power distribution panels

• Long lasting connector designed for repeated connections

• Easy panel mounting on battery boxes, power supply cases, robotics chassis

• High temperature tolerance suitable for demanding environments

Applications:

• FPV Drone Power Connection

• RC Car and RC Aircraft Battery Connector

• LiPo Battery Charging Ports

• Robotics Power Distribution Systems

• Electric Vehicle Battery Systems

• DIY Electronics Power Modules

• Battery Pack Output Connector

• Embedded Power Supply Systems

• Portable Power Systems

• Solar Battery Systems

• Industrial Electronics Power Interface

Installation and Usage Guide:

• Cut a mounting hole on panel or enclosure according to connector size

• Align the XT60E-M mounting holes with the panel holes

• Fix the connector using M3 screws for stable installation

• Solder the power wires to the gold plated brass terminals

• Ensure correct polarity during soldering for safe operation

• Connect compatible XT60 female connector from battery or power source

• Verify secure connection before applying high current load

• Suitable for DC battery connections and power distribution systems

Specifications:

• Model: XT60E-M

• Connector Type: Panel Mount XT60 Male Connector

• Housing Material: Heat Resistant Nylon (PA66)

• Contact Material: Gold Plated Brass

• Wiring Method: Solder / Welded Connection

• Flame Retardant Rating: UL94 V-0

• Operating Temperature: -20°C to 120°C

• Mounting Hole Size: M3

• Connector Dimensions: 27mm × 16mm × 8mm

• Weight: 3g

Package Includes:

• 1 × XT60E-M Mountable XT60 Male Connector
