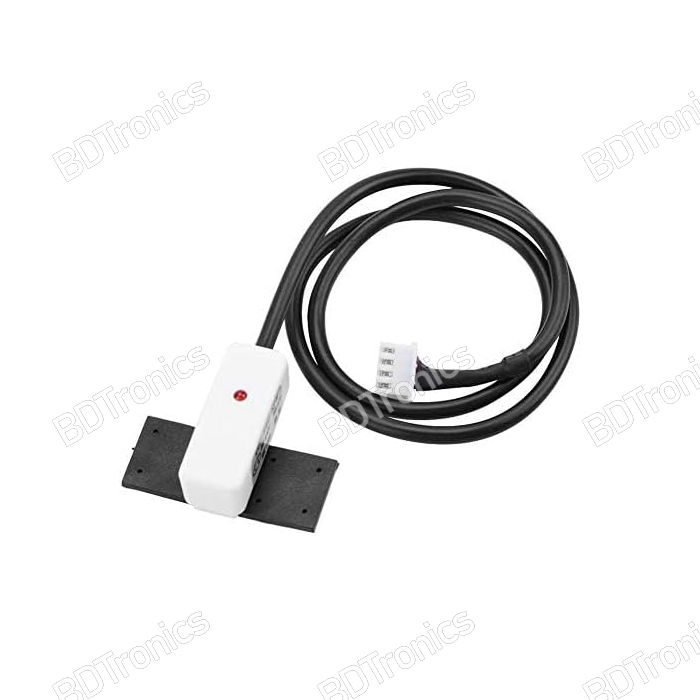

The XKC-Y26-V non-contact liquid level sensor is an intelligent induction-based level detection solution designed for accurate liquid level monitoring without direct contact with the liquid. Using advanced signal processing technology and a high-speed processing chip, this sensor overcomes vessel wall thickness limitations and enables true non-contact detection through non-metal containers. It is ideal for sealed vessels, tanks, and pipelines where drilling holes is not possible or not desired. Widely used in industrial, automation, and safety-critical applications in Bangladesh, this sensor supports toxic liquids, strong acids, bases, and high-pressure environments.

Features:

• True non-contact liquid level detection

• No need to drill holes in the container

• Suitable for sealed and high-pressure vessels

• Works with various liquid types including corrosive liquids

• No special requirement for container material

• High reliability and stable output

• Simple installation without affecting production

• High and low digital output signal

• Compact size with low power consumption

• Waterproof and dustproof design

Specifications:

• Product Model: XKC-Y26-V

• Input Voltage: DC 5V – 24V

• Power Consumption: 5mA

• Output Signal: High and Low

• Output Voltage (High Level): Vin

• Output Voltage (Low Level): 0V

• Output Current: 1mA – 100mA

• Response Time: 500ms

• Ambient Temperature: 0°C – 85°C

• Operating Humidity: 5% – 100%

• Material: ABS Plastic

• Waterproof Rating: IP65

• Sensor Size: 18mm x 13mm x 11mm

• Cable Length: 45cm

• Level Detection Error: ±1.5mm

• Applicable Tube Diameter: ≥10mm

Sensitivity & Wall Thickness Compatibility:

• Tube Diameter ≥100mm: Wall Thickness 20±2mm

• Tube Diameter 80–100mm: Wall Thickness 15±2mm

• Tube Diameter 60–80mm: Wall Thickness 12±2mm

• Tube Diameter 40–60mm: Wall Thickness 7±1mm

• Tube Diameter 30–40mm: Wall Thickness 5±1mm

• Tube Diameter 20–30mm: Wall Thickness 3±1mm

• Tube Diameter 10–20mm: Wall Thickness 1.5±0.5mm

Applications:

• Water level detection systems

• Industrial liquid tanks and vessels

• Chemical processing plants

• Acid and alkali liquid monitoring

• Automation control systems

• Smart water management systems

• Home appliances and dispensers

• Medical and laboratory equipment

• Food and beverage liquid containers

• High-pressure sealed tank monitoring

How to Use:

• Clean the outer surface of the container wall

• Attach the sensor to the outside of the non-metal container

• Secure it firmly using the provided fastening strap

• Connect the power supply within DC 5–24V range

• Read the digital output signal from the output wire

• High output indicates liquid presence, low indicates absence

• Install sensors at required high or low level positions for control

Installation & Usage Instructions:

• Ensure container material is non-metallic

• Avoid air gaps between sensor and container wall

• Do not install on curved surfaces beyond recommended diameter

• Keep sensor surface clean for accurate detection

• Avoid installation near strong electromagnetic interference

• Suitable for long-term continuous operation

Package Includes:

• 1 x XKC-Y26-V Non-Contact Liquid Level Sensor

• 1 x Fastening Strap
