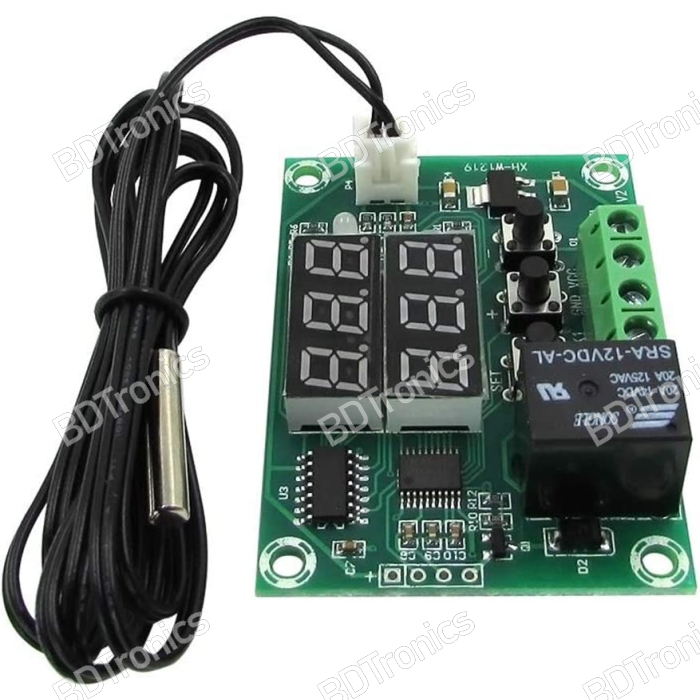

The XH-W1219 Digital Thermostat Temperature Controller Module is a high-precision device designed for controlling temperature in heating and cooling applications. Equipped with a waterproof NTC10K probe and dual LED display, it offers accurate readings and flexible control. Ideal for incubators, aquariums, refrigerators, heating systems, and other DIY electronics projects requiring precise temperature management in Bangladesh.

Features:

• Dual LED display shows current temperature and set value simultaneously.

• High-precision temperature control with 0.1°C resolution.

• Wide control range from -50°C to 110°C for versatile applications.

• Relay output up to 10A for controlling heating or cooling devices.

• Includes NTC10K waterproof temperature sensor, cable length 0.5m.

• High-temperature alarm range: -49°C to 110°C with visual and audio alerts.

• Configurable return difference (0.1–30°C) to prevent frequent switching.

• Delay start function (0–10 minutes) suitable for compressor cooling applications.

• Temperature calibration (-10°C to 10°C) ensures accurate readings.

• Compact size: 60mm x 43mm x 16mm, easy to integrate into projects.

• Factory reset function for quick restoration of default settings.

How to Use:

• Connect the module to a 12V DC power supply.

• Attach the NTC10K waterproof sensor to the area or device you want to monitor.

• Set the temperature control mode: H for heating, C for cooling.

• Configure the return difference (P1) to avoid frequent switching.

• Calibrate the temperature (P2) if the sensor reading differs from actual temperature.

• Set delay start time (P3) to protect compressors in cooling applications.

• Define high-temperature alarm threshold (P4) to trigger alert in case of overheating.

• Press and hold + and - buttons for 3 seconds to restore factory settings if needed.

• Use the relay output to control connected heating or cooling devices safely.

Specifications:

• Model: XH-W1219

• Power Supply: DC12V

• Relay Current: 50mA

• Control Range: -50°C to 110°C

• Control Precision: 0.1°C

• Measuring Input: NTC10K waterproof sensor L=0.5m

• High Temperature Alarm: -49°C to 110°C

• Input Voltage: DC12V

• Output Type: Relay output 10A (max)

• Return Difference Setting: 0.1–30°C

• Delay Start: 0–10 minutes

• Temperature Calibration: -10–10°C

• Size: 60mm x 43mm x 16mm
