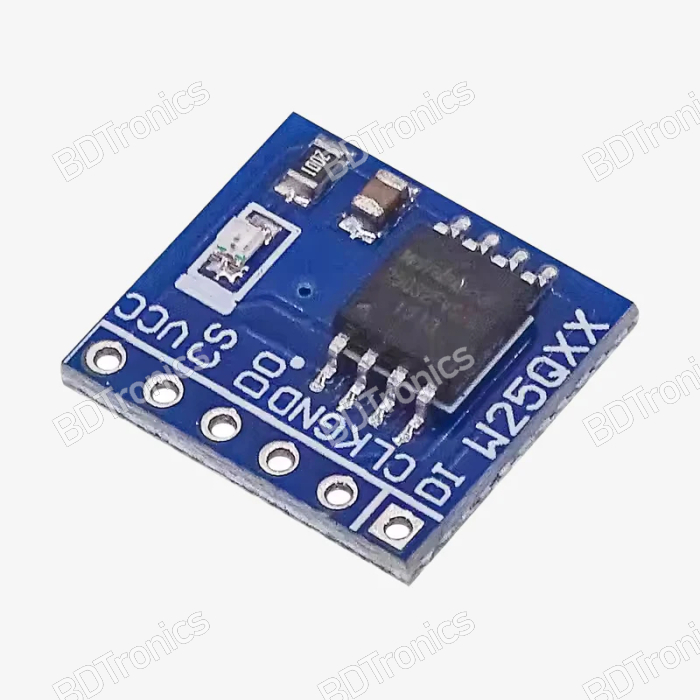

The W25Q32 Flash Storage Module is a high-speed, non-volatile memory module designed for embedded systems, microcontroller projects, IoT devices, data logging applications, firmware storage, configuration memory, and industrial electronics. Featuring the reliable W25Q32 NOR Flash memory chip, this module offers 32Mbit (4MB) storage capacity with fast SPI communication, making it ideal for projects requiring external memory expansion.

The module supports Standard SPI, Dual SPI, and Quad SPI communication modes, enabling rapid data transfer and efficient storage operations. With low power consumption, long data retention, and high program/erase endurance, the W25Q32 is widely used in Arduino, ESP32, ESP8266, STM32, Raspberry Pi, FPGA, and other embedded development platforms.

Its compact design and stable performance make it suitable for firmware storage, bootloader memory, configuration files, sensor data logging, graphics storage, and various memory-intensive applications.

Features:

• High-quality W25Q32 NOR Flash memory chip

• 32Mbit (4MB) storage capacity

• Fast SPI serial communication interface

• Supports Standard SPI, Dual SPI, and Quad SPI modes

• High-speed read operations up to 104MHz

• Non-volatile memory storage

• Low power consumption

• Long-term data retention

• High reliability and durability

• Compact module design

• Easy integration with microcontrollers

• Suitable for firmware and bootloader storage

• Supports data logging applications

• Stable and efficient memory performance

• Compatible with popular development platforms

Featured by BDTronics

BDTronics supplies quality-tested memory modules, sensors, development boards, embedded electronics, and automation components for students, hobbyists, engineers, and industrial users. The W25Q32 Flash Storage Module is selected for dependable memory expansion, high-speed communication, and long-term storage reliability.

Specifications:

• Model: W25Q32 Flash Storage Module

• Memory Type: NOR Flash

• Storage Capacity: 32Mbit (4MByte)

• Communication Interface: SPI (Serial Peripheral Interface)

• SPI Modes: Standard SPI, Dual SPI, Quad SPI

• Operating Voltage: 2.7V – 3.6V DC

• Maximum Read Speed: Up to 104MHz

• Program/Erase Endurance: 100,000 Cycles

• Data Retention: Up to 20 Years

• Power Consumption: Low Power

• Storage Type: Non-Volatile Memory

• Module Type: External Flash Memory Expansion Module

How It Works:

• The W25Q32 stores data even when power is removed.

• Communication is performed through the SPI interface.

• The microcontroller sends read and write commands to access memory locations.

• Data can be stored, modified, erased, and retrieved as required.

• Supports high-speed data transfer for firmware and large file storage applications.

Pin Configuration:

• VCC: Power Supply (2.7V–3.6V)

• GND: Ground

• CS: Chip Select

• CLK: SPI Clock

• MOSI (DI): Master Out Slave In

• MISO (DO): Master In Slave Out

• WP: Write Protect

• HOLD: Pause Communication Control

How to Use:

• Connect the module to a compatible SPI-enabled microcontroller.

• Supply 3.3V power to the module.

• Connect SPI pins (CS, CLK, MOSI, MISO).

• Use SPI flash libraries or firmware drivers.

• Initialize the memory device in software.

• Read, write, erase, and manage data through SPI commands.

• Store firmware, configuration files, sensor logs, or application data.

• Verify data integrity after programming operations.

Applications:

• Firmware storage

• Bootloader memory

• Embedded systems

• Arduino projects

• ESP32 applications

• ESP8266 development

• STM32 projects

• Raspberry Pi interfaces

• FPGA designs

• Data logging systems

• IoT devices

• Smart home controllers

• Industrial automation systems

• Configuration data storage

• Sensor data recording

• Graphics and font storage

• Portable electronics

• Consumer electronics

• Educational electronics projects

• Industrial control systems

Advantages:

• High storage capacity

• Fast SPI communication

• Low power consumption

• Long data retention period

• High write endurance

• Compact and lightweight design

• Easy microcontroller integration

• Reliable non-volatile memory

• Supports advanced SPI modes

• Cost-effective memory expansion solution

Package Includes:

• 1 × W25Q32 32Mbit Flash Storage Module
