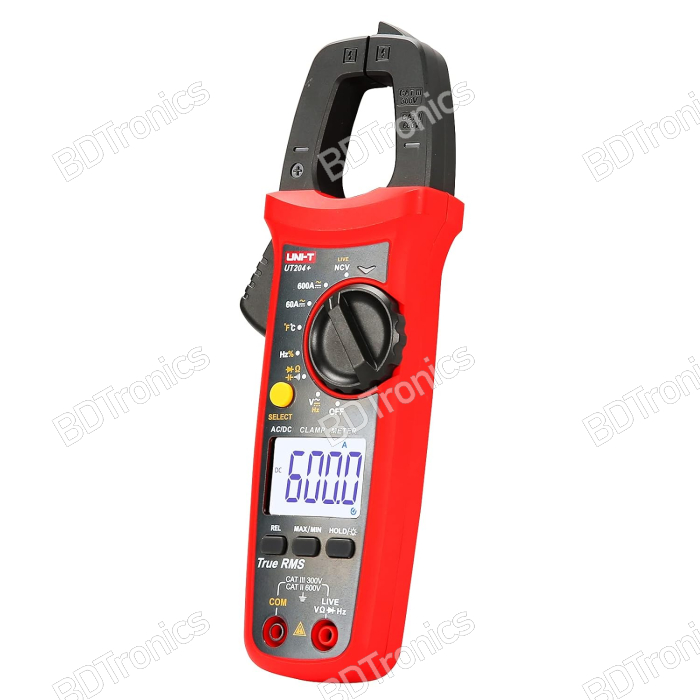

UNI-T UT204+ Digital Clamp Meter 600V 600A AC-DC Current Voltage Resistance Tester Multimeter
Order before 12.00PM
The UNI-T UT204+ Digital Clamp Meter is a versatile and advanced measuring instrument used for testing electrical parameters such as AC/DC current, voltage, resistance, and temperature. Here are the detailed features and specifications of the UNI-T UT204+:
Features:
- Clamp Meter Functionality: Allows non-contact current measurement using the clamp jaw, ideal for measuring AC current without breaking the circuit.
- True RMS Measurement: Provides accurate readings of AC voltage and current, regardless of waveform distortions.
- Auto Ranging: Automatically selects the appropriate measurement range, simplifying operation.
- Backlit LCD Display: Large, clear display with backlight for easy reading in low light conditions.
- Data Hold Function: Freezes the displayed reading for easy recording.
- Low Battery Indication: Alerts the user when the battery is low to avoid erroneous readings.
- Overload Protection: Protects the meter from damage due to excessive input.
- Temperature Measurement: Equipped with a thermocouple for measuring temperature.
- NCV (Non-Contact Voltage Detection): Detects the presence of voltage without making direct contact with the conductor.
Specifications:
| Parameter | Range | UT204+ |
| AC current (A) | 600A | ±(2.5%+5) |
| DC current (A) | 600A | ±(2.5%+5) |
| AC voltage (V) | 600V | ±(0.8%+5) |
| AC voltage frequency(Hz) | 10Hz~60kHz | ±(0.5%+2) |
| DC voltage (A) | 600V | ±(0.5%+2) |
| Resistance (Ω) | 60MΩ | ±(0.8%+2) |
| Capacitance (F) | 60mF | ±(4%+5) |
| Temperature (℃) | -40℃~1000℃ | ±(1.5%+5) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+4) |
| Features | ||
| Display count | 6000 | |
| Auto range | √ | |
| Jaw opening | 28mm | |
| True RMS | √ | |
| NCV | √ | |
| Live wire test | √ | |
| Continuity test | √ | |
| Diode | √ | |
| MAX/MIN | √ | |
| Relative mode | √ | |
| Zero mode | √ | |
| Data hold | √ | |
| Low battery indication | √ | |
| Auto power off | √ | |
| General Characterisitics | ||
| Power | 1.5V battery (R03) x 2 | |
| Display | 37mm x 25mm | |
| Product color | Red and grey | |
| Product net weight | 235g | |
| Product size | 215mm x 63mm x 36mm | |
| Standard accessories |
|
|
Additional Information:
- Jaw Opening: Up to 28mm, suitable for measuring the current of thick cables.
- Power Supply: 2 x 1.5V AAA batteries.
- Dimensions: 220mm x 75.6mm x 40mm.
- Weight: Approximately 220g (including battery).
- Safety Rating: CAT II 600V, CAT III 300V.
The UNI-T UT204+ Digital Clamp Meter is widely used by electricians, HVAC technicians, and hobbyists for its reliability, ease of use, and comprehensive measurement capabilities.
