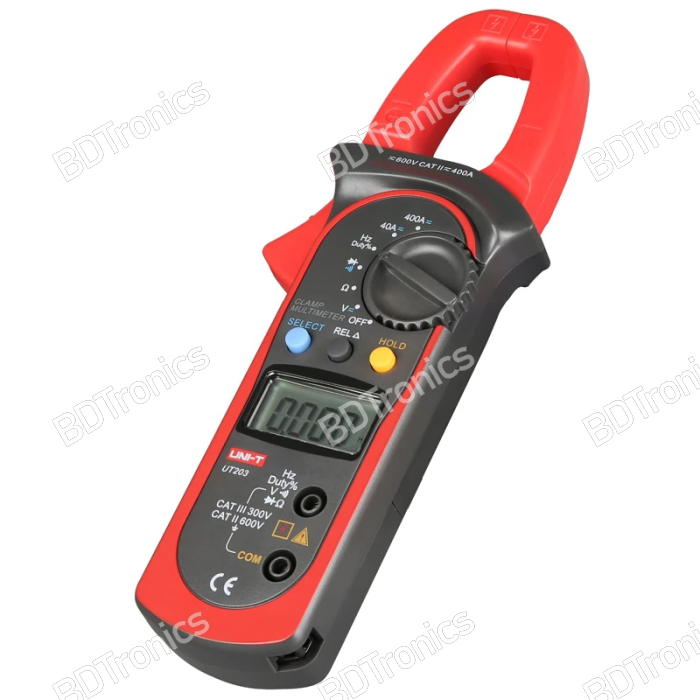

UNI-T UT203 Digital Clamp Meters

Digital clamp meter UNI-T UT203 is a reliable and low consumption AC clamp multimeter. Digital clamp meter UNI-T UT203 measures AC and DC voltage, AC current, DC current, resistance and temperature, also performing diode check and continuity test. UNI-T's UT203 is a 400A digital clamp meter. Its features include duty ratio, AC/DC current and voltage measurement.This digital clamp meter has overload protection.

Features:

• Measuring functions:
• AC/DC voltage
• AC current
• Resistance
• Temperature
• Diode check
• Continuity test
• Auto ranging
• Data hold function
• Sleep mode
• Full icon display
• Low battery display
• Maximum value hold
• 28 mm maximum jaw diameter
• Measurement update speed 3 times/second
• Compact and comfortable design
• Relative mode for capacitance zeroing and offset adjustment
• Auto range
• Data hold/auto power off
• 3/s sampling rate
• Low battery prompt, over-range prompt and auto polarity display
• Compliance with safety requirements IEC61010, CAT II 600 V / CAT III 300 V

Specifications:

• Measuring: AC Current, AC voltage, DC voltage, Resistance,Temperature
• DC Voltage: 400mV / 4V / 40V / 400V / 600V, Accuracy: +/- (0.8%+1)
• AC Voltage: 4V / 40V / 400V / 600V, Accuracy: +/- (1%+5)
• DC Current: 40A / 400A, Accuracy: +/- (2%+3)
• AC Current: 40A / 400A, Accuracy: +/- (2.5%+5)
• Resistance: 400 Ohm / 4 kOhm / 40 kOhm / 400 kOhm / 4 MOhm / 40 MOhm, Accuracy: +/- (1%+2)
• Frequency: 10Hz - 1MHz, Accuracy: +/- (0.1%+3)
• Duty cycle: 0.1% ~ 99.9%

General Charasterstics:

• Power: 9V bat. (6F22)
• Product size: 210 x 75.6 x 30mm
• Product weight: 200g

Package Includes:

• Clamp meter UNI-T UT203 (1 pc.)

• Test lead (1 pc.)

• Carrying case (1 pc.)

• Batteries (1 pc.)

• User manual (1 pc.)
