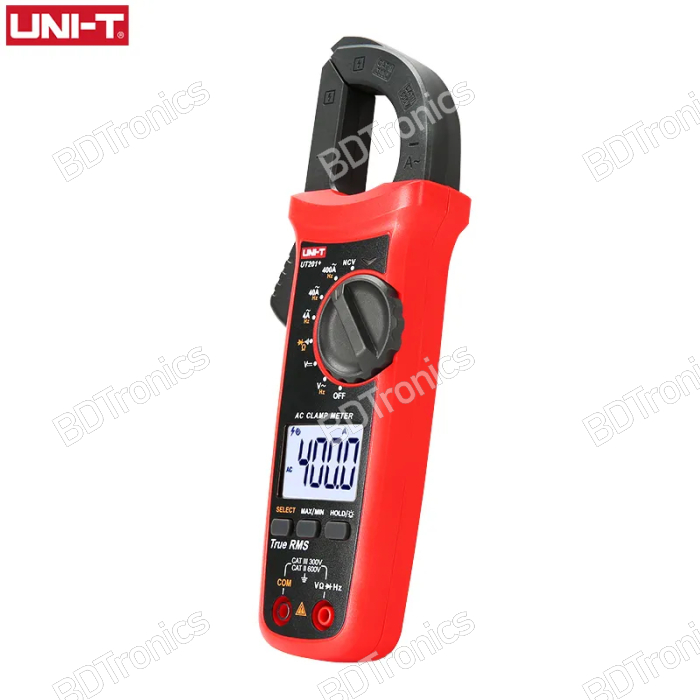

UNI-T UT201+ Digital Clamp Meter 600V AC-DC Voltage 400A AC Current Voltage Resistance Tester Multimeter
In stock
Order before 12.00PM
Customer Reviews
UNI-T UT201+ is a True RMS clamp meter which measures AC and DC voltage, AC current, resistance, continuity, and also may be used for diodes checking.
Features:
- Functions:
- AC current;
- AC/DC voltage;
- resistance;
- continuity test;
- diode test.
- True RMS measurement.
- Audio visual NCV detection.
- Large LCD.
- Full-featured false detection protection for up to 600 V energy surges; overvoltage and overcurrent alarm functions.
- The power consumption of the meter is about 1.8 mA. The circuit has an automatic power saving function. The consumption in sleep state is <11 μA, which extends the battery life to 400 hours.
- Low battery indication.
- Automatic power of after 15 of no-operation (function can be turned off).
- Data hold function.
- Max/Min mode.
Technical Specifications:
| Function | Range | Accuracy |
|---|---|---|
| AC Current | 4 A | ±(4%+10) |
| 40 A / 400 A | ±(2%+10) | |
| AC Voltage | 4 V | ±(1%+5) |
| 40 V / 400 V / 600 V | ±(0.8%+5) | |
| DC Voltage | 400 mV | ±(0.7%+3) |
| 4 V | ±(0.5%+2) | |
| 40 V / 400 V / 600 V | ±(0.7%+3) | |
| Resistance | 400 Ω | ±(1%+2) |
| 4 kΩ / 40 kΩ / 400 kΩ | ±(0.8%+2) | |
| 4 MΩ / 40 MΩ | ±(2%+5) | |
| General Specifications | ||
| Display | 4099 count LCD | |
| Max. jaw opening | 28 mm in diameter | |
| Drop test | 1 m | |
| Power | 1.5V battery AAA × 2 pcs. | |
| Dimensions | 215 × 63.5 × 36 mm | |
| Weight | 248 g (with batteries) | |
