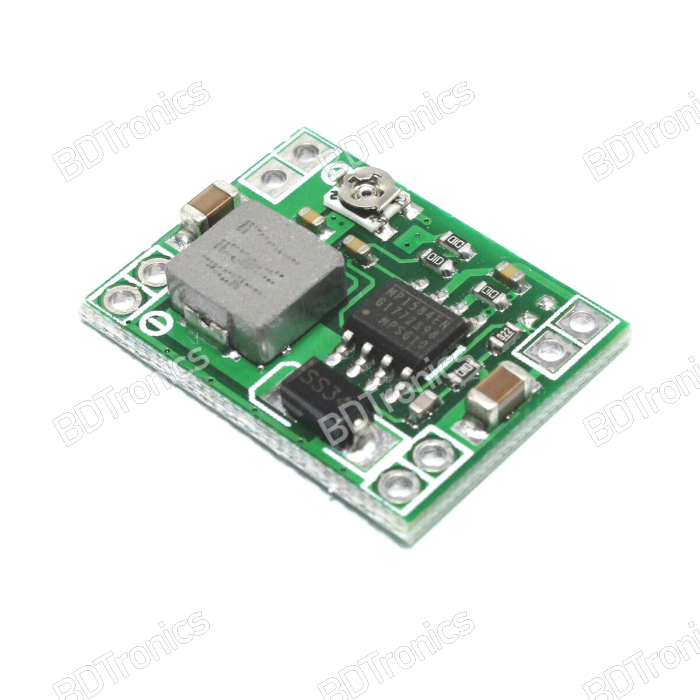

DC-DC Adjustable Buck Converter Module MP1584EN 3A

This DC/DC step-down voltage converter is based on MP1584, it converts input voltage between 4.5V and 28V into a smaller voltage between 0.8V and 18V, capable of driving a 3A load with excellent line and load regulation.

Out of stock

SKU PRD-00000027

This product is out of stock. Are you interested about this product?

Delivery Info
truck-fast
Inside Dhaka: 1-2 days
Express (Dhaka): 24 hours
Order before 12.00PM
Outside Dhaka: 2-3 days
hand-holding-dollar
Cash on delivery all over BD
Quality
award
100% authentic product
circle-check
Quality product guaranteed
Service
repeat
7 days easy return
credit-card
Safe & secure payment
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

Product Details

Feature:

  • Wide 4.5V to 28V Operating Input Range
  • Up to 92% Efficiency
  • Programmable Switching Frequency from 100kHz to 1.5MHz
  • High-Efficiency Pulse Skipping Mode for Ceramic Capacitor Stable
  • Internally Set Current Limit without a Current Sensing Resistor
  • Cycle-by-Cycle Over Current Protection
  • Input Under Voltage Lockout
  • Specification
  • Input Voltage: 4.5V-28VDC
  • Output Voltage: 0.8V-18VDC
  • Continuous Output Current: Max. 3A
  • Peek Output Current: 4A
  • Max. Efficiency: 92%
  • Output Ripple: <30mV
  • Switching Frequency: 100kHz to 1.5MHz
  • Operating Temperature: -40℃ to +85℃
  • Dimensions: 22mm*17mm*4mm(l*w*h)
arrow-down
Show More
