NEO-M8N GPS Module GYGPSV1-8M is optimized for cost-sensitive applications, while NEO-M8N/M8Q provides the best performance and easier RF integration. The NEO-M8N offers high performance also at low power consumption levels. The future proof NEO-M8N includes an internal Flash that allows future firmware updates. This makes NEO-M8N perfectly suited to industrial and automotive applications.

The NEO-M8 series of concurrent GNSS modules are built on the high performing M8 GNSS engine in the industry proven NEO form factor.NEO-M8N provides the best performance and easier RF integration. The NEO-M8N offers high performance also at low power consumption levels. The future-proof NEOM8N includes an internal Flash that allows future firmware updates. This makes NEO-M8N perfectly suited to industrial and automotive applications.

Features:

The ceramic antenna provides a very strong signal

• • With LED indicator lamp
  • The default baud rate: 9600.
  • With data backup battery.
  • LED signal indicator.
  • Compatible with various flight controller module.
  • EEPROM save the configuration parameter data when power-down.
  • Assistance AssistNow GNSS Online
  • AssistNow GNSS Offline (up to 35 days)
  • AssistNow Autonomous (up to 6 days)
  • OMA SUPL & 3GPP compliant
  • Oscillator TCXO
  • Built-in RTC crystal
  • Anti-jamming Active CW detection and removal.
  • Extra onboard SAW band pass filter
  • Memory Flash
  • Supported antennas Active and passive
  • Odometer Traveled distance
  • Data-logger For position, velocity, and time

Wiring:

• • Vcc: Input Voltage Supply
  • Gnd: Ground
  • RX/TX: Serial TTL pins
  • UFL Connector: For connecting antenna
  •

Applications:

GPS application

• • Smart phone and tablets
  • Navigation systems
  • Drones
  • Hobby projects

Package Includes:

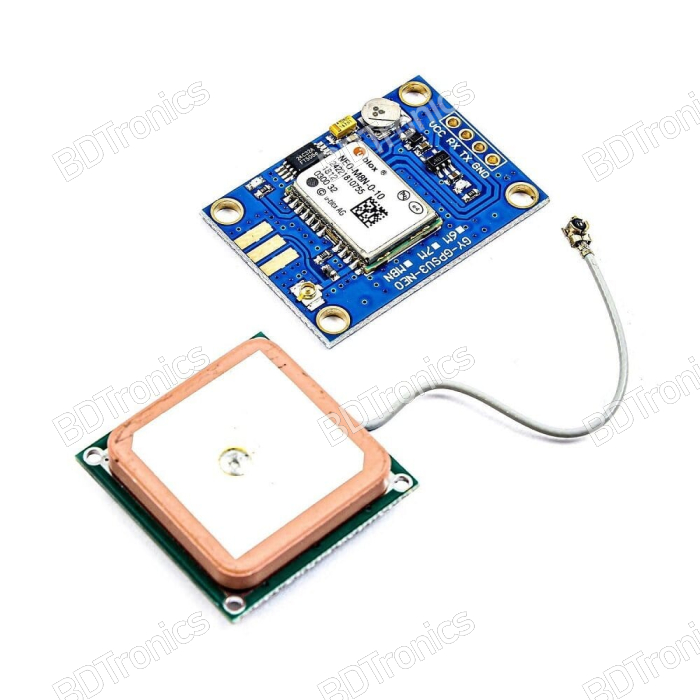

1 x UBlox Neo 8M GPS Module

• • 1 x GPS Antenna with UFL Connector
