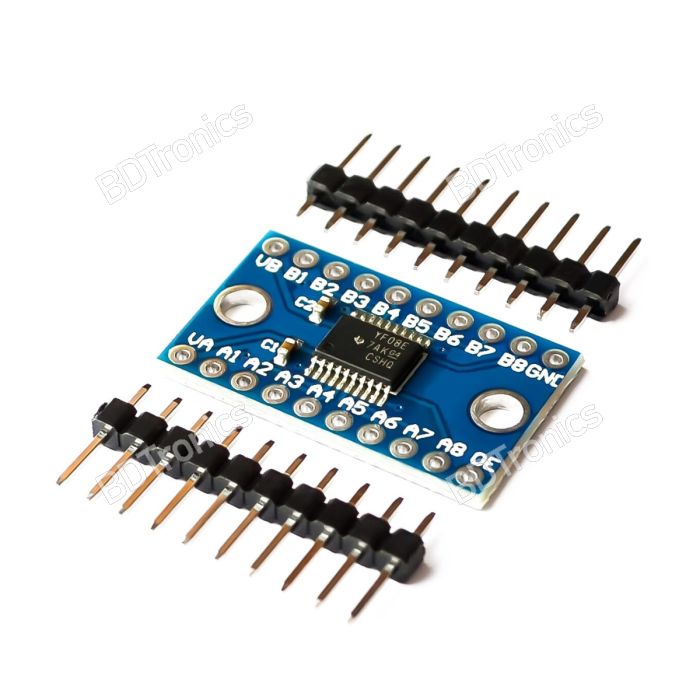

TXS0108E 8 Channel High Speed 110Mbps Bi-Directional Logic Level Converter

TXS0108E Bi-Directional Logic Level Converter Module is a high speed (110Mbps) Full-duplex 8-bit Bidirectional logic level translator. The level converter has the capability of converting the logic level of 8-pins on the high side to 8-pins on the low side and vice versa. It also has a serial interface compatible with I2C/UART/SPI ports.

In stock

SKU PRD-00000032
Categories: Prototyping
Delivery Info
truck-fast
Inside Dhaka: 1-2 days
Express (Dhaka): 24 hours
Order before 12.00PM
Outside Dhaka: 2-3 days
hand-holding-dollar
Cash on delivery all over BD
Quality
award
100% authentic product
circle-check
Quality product guaranteed
Service
repeat
7 days easy return
credit-card
Safe & secure payment
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

Product Details

Technical Specifications:

  • 8-bit/ 8 Channel non-inverting level translator
  • Input Voltage supply: VCCA - 1.4-3.6V DC; VCCB - 1.65-5.5V DC
  • No power-supply sequencing required; VCCA or VCCB can be ramped first
  • High speed (110Mbps)
  • No direction-control signal needed



Left Side

Left Side pin Description

Right Side Pins

Right Side pin Description

VA(VCCA)

1.4-3.6V Supply Voltage

VB(VCCB)

1.65-5.5V Supply Voltage

A1

LV/HV Signal 1

B1

HV/LV Signal 1

A2

LV/HV Signal 2

B2

HV/LV Signal 2

A3

LV/HV Signal 3

B3

HV/LV Signal 3

A4

LV/HV Signal 4

B4

HV/LV Signal 4

A5

LV/HV Signal 5

B5

HV/LV Signal 5

A6

LV/HV Signal 6

B6

HV/LV Signal 6

A7

LV/HV Signal 7

B7

HV/LV Signal 7

A8

LV/HV Signal 8

B8

HV/LV Signal 8

OE

Output Enable

GND

Ground

arrow-down
Show More

You might also be interested in...

Fotek PL-05N NPN NO DC 10-30V Inductive Proximity Sensor
Special Price BDT 545.00 Regular Price BDT 599.00
Logic Level Shifter Bi-Directional 4 Channel
Special Price BDT 160.00 Regular Price BDT 165.00
SN04-N 5mm NPN NO DC10-30V Inductive Proximity Sensor Switch
BDT 495.00

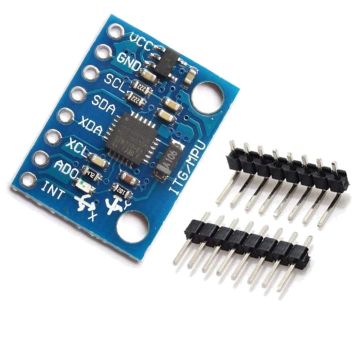

GY-521 MPU-6050 3 Axis Gyroscope + Accelerometer Module
Special Price BDT 204.00 Regular Price BDT 226.00
PCF8574 IO Expansion Board (I/O Expander with I2C)
Special Price BDT 185.00 Regular Price BDT 280.00

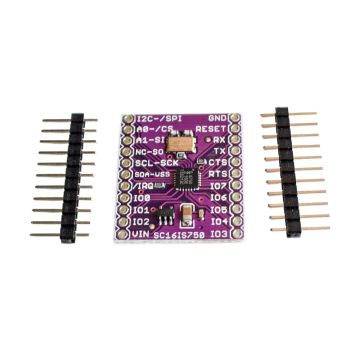

SC16IS750 I2C-Bus/SPI Interface to Single Channel High Performance UART
BDT 385.00
ESP32-WROOM-32D WiFi Bluetooth SMD Chipset
BDT 480.00

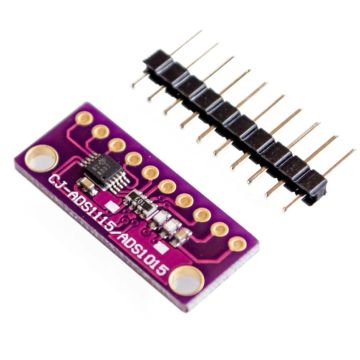

ADS1115 16 Bit 4 channels Analog to Digital Converter Module
