Features:

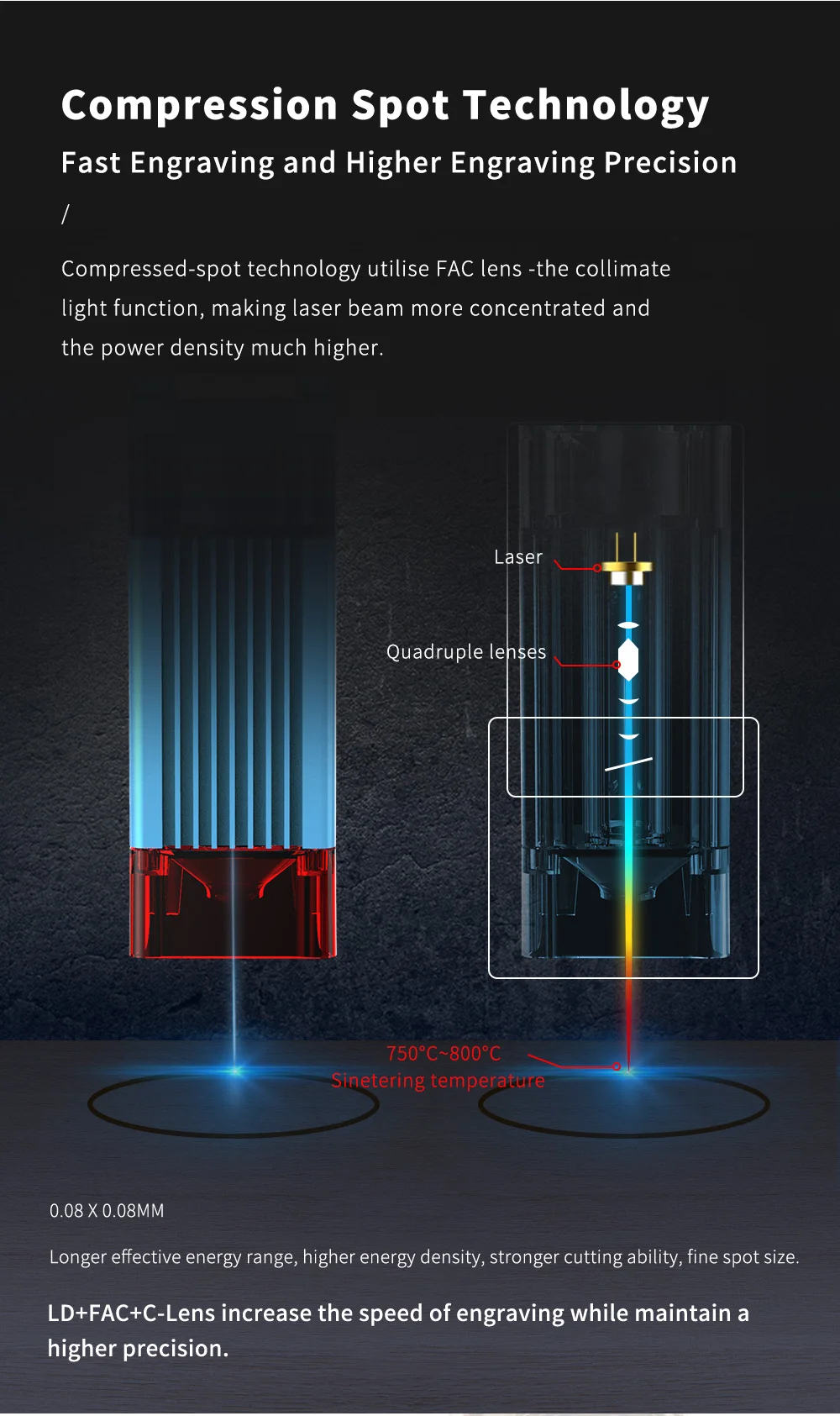

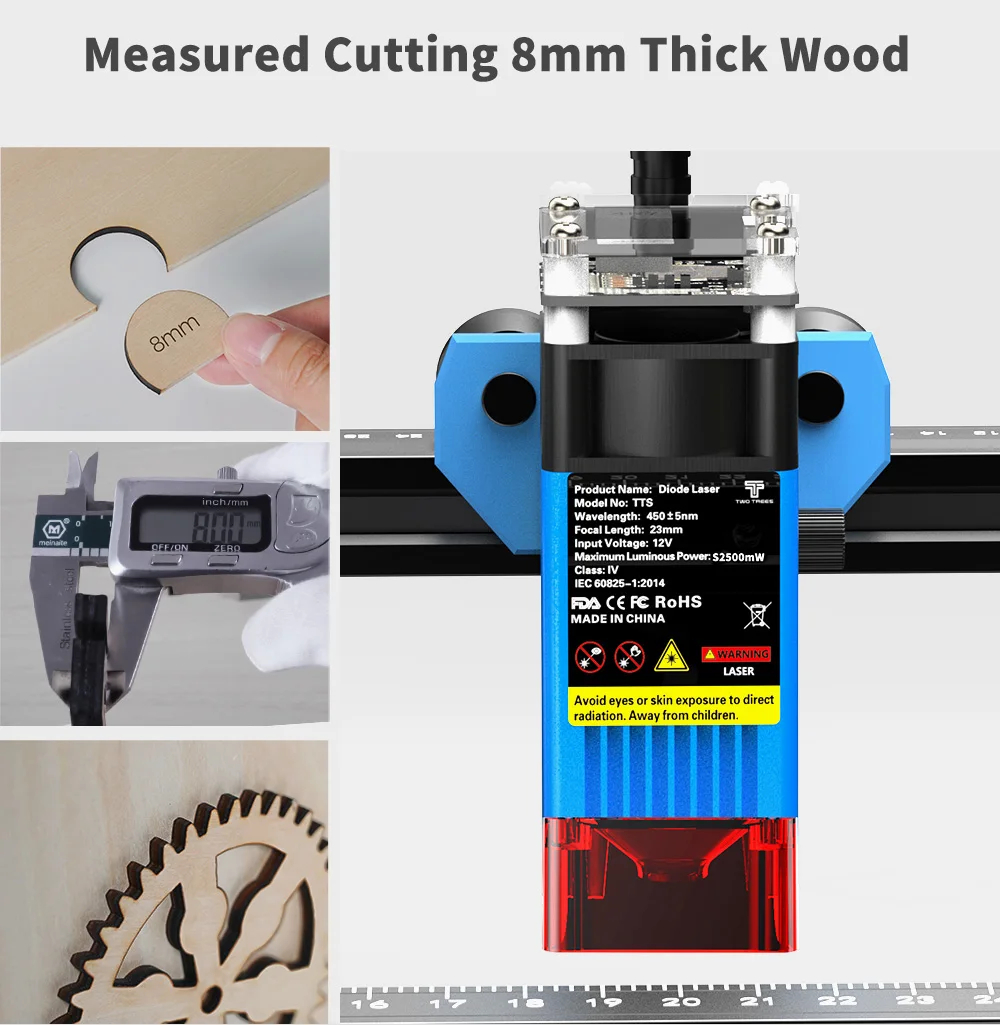

• Latest Laser Beam Shaping Technology: TTS-55 uses the latest 5.5W (40W power) laser beam shaping technology diode laser, it has an ultra-fine 0.08mm sharp laser focus, with super cutting penetration and precision, can cut up to 8mm thick wood, 5mm acrylic, carve ceramics and stainless steel.
• Fast focus design: Combines a fixed focus lens and a knob to adjust the height. You just need to turn the knob to focus. Equipped with a fixed focus column, which makes it very easy to use.
• Easy assembly structure: Aluminum profile structure design, double Y-axis motors make the machine work more stably and improve the engraving accuracy. 60% pre-assembled, assembly can be completed in 30 minutes.
• Square measuring ruler: X-axis and Y-axis contain precise scale lines, which is convenient for you to measure the size of engraving objects quickly.

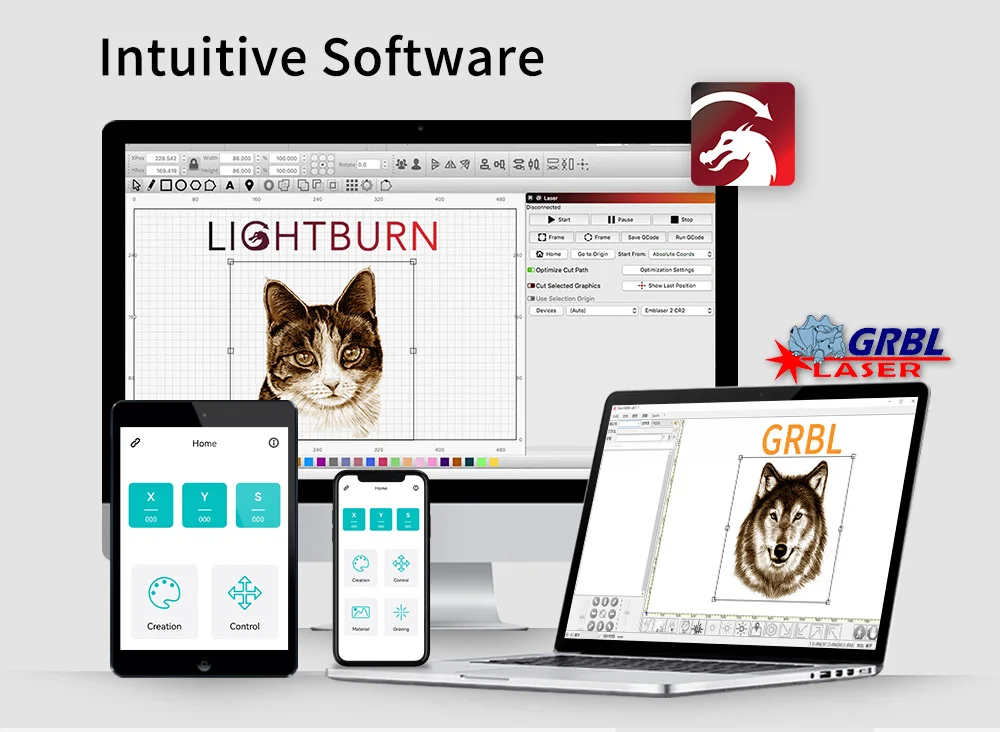

• Wide Compatibility: Support mobile APP control, wifi connection, USB connection, offline USE，The machine is compatible with various mature engraving software, such as LaserGRBL, LightBurn, Benbox, GrblController, LiteFire, supports PWM mode engraving, supports Windows Mac system, and engraving file format Support JPG, PNG, DXF, SVG, G-code, NC, BMP, etc.
• Safe Design: The laser filter cover filters 98% of the ultraviolet light to the eyes. The motherboard has a separate control switch.

Machine Parameters:

• Model: TTS25 / TTS55
• Machine Weight: 3kg
• Engraving Range: 300 * 300mm
• Laser Wavelength: 445 ± 5nm
• Engraving Accuracy: 0.1mm
• Engraving Speed: 10000mm / min
• Software Support System: MAC, Windows
• Machine Material: Aluminum Profile + Plastic Parts
• Power Supply: 12V 4A DC
• Control Board: LTS esp32 Motherboard (32bit)
• Laser Power: 2.5w/5.5w (optional)
• Input Power: 15w/40w (optional)
• Software Identification File Format: NC, BMP, JPG, PNG, Gcode, Etc
• Supporting software: Lasergrbl (Windows system), Lightburn (General)
• Power type: European standard / American Standard (Optional)
• Languages Supported By The Software: Chinese, English, Italian, French and German
• Working Environment: Temperature 5-40 ℃, Humidity 20-60%
• Engraving Mode: USB Online, TF Card (Application Program, Web Page Control)
• Carving Materials: Wood, Plastic, Paper, Leather, Sponge Paper, Alumina, Etc
• Engraving Mode: Graphic Engraving, File Engraving, Scanning Engraving, Contour Engraving And Pixel Engraving
