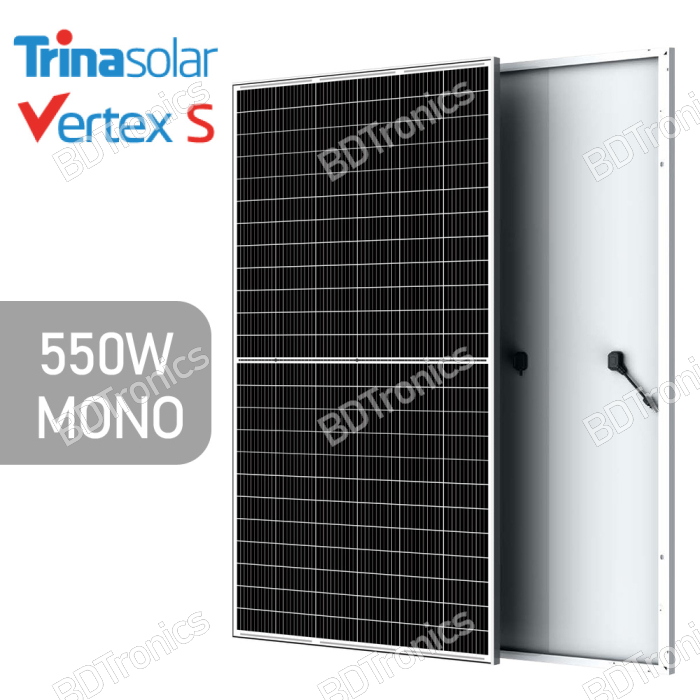

Product Details / Trina Solar 550 Watt Monocrystalline Solar Panel
Based on Trina Solar's leading multi-busbar technology, Vertex modules incorporate 210mm silicon wafers, non-destructive cutting and high-density interconnect technologies, allowing over 550W power output and up to 21% module efficiency. With low-voltage and higher module string power output, the new Vertex series unlocks huge potential for further reducing balance-of-system costs and LCOE.
Features:
- High customer Value
- Lower LCOE (Levelized Cost of Energey), reduced BOS (Balance of System) cost, shorter payback time.
- Lowest guranteed first year and annual degradation;
- Designed for Compatibility with Existing mainstream system components
- Higher return on investment
- High power upto 550W
- Up to 21.2% module efficiency with high densitity interconnect technology
- Multi-busbar technology for better light trapping effect, lower series resistance and improved currect collection
- High reliablity
- Minimized micro-cracks with innovative non-destrutive cutting technology
- Ensured PID resistance through cell process and module material control
- Mechanical performance up to 5400Pa positive load and 2400Pa negative load
- High energy yield
- Excellent IAM (Incident Angle Modifier) and low irridiation performance, validated by 3rd party certifications
- The unique design provides optimied energy production under inter-row shading conditions
Lower temperature co-efficient (-0.34%) and operating temperature
Mechanical Data
|
||||
Model:
|
TSM-550DE19
|
|||
Cell type:
|
210mm, monocrystalline
|
|||
Cell number:
|
110 (5*22)
|
|||
Dimensions:
|
2384*1096*35 mm
|
|||
Weight:
|
28.6 KG
|
|||
Front glass:
|
3.2mm thickness, low iron tempered glass.
|
|||
Backsheet:
|
White TPT
|
|||
Junction box:
|
IP68 Rated, 3 diodes
|
|||
Frame:
|
silver anodized aluminum alloy
|
|||
Connector:
|
MC4 Compatible
|
|||
Cable:
|
4.0mm², (+) 270mm, (-) 100mm
|
|||
Standard Test Conditions:
|
AM1.5 100MW/cm 25°C
|
Electrical Data
|
|||||
Rated Power Watt- Pmax (W)
|
535W
|
540W
|
545W
|
550W
|
555W
|
Maximum Power Voltage- Vmpp (V)
|
31.0
|
31.02
|
31.04
|
31.06
|
32.08
|
Maximum Power Current- Impp (A)
|
17.28
|
17.33
|
17.37
|
17.40
|
17.45
|
Open Circuit Voltage- Voc (V)
|
37.3
|
37.5
|
37.7
|
37.9
|
38.1
|
Short Circuit Current- Isc (A)
|
18.36
|
18.41
|
18.47
|
18.52
|
18.56
|
Module Efficiency (%)
|
20.5
|
20.7
|
20.9
|
21.0
|
21.2
|
Power Output Tolerance (W)
|
0 ~ +3
|
||||
STC
|
Irradiance 800W/m², Ambient temperature 20℃,Wind speed 1m/s
|
||||
Operational Temperature
|
-40~+85℃
|
||||
Maximum System Voltage
|
1500VDC
|
||||
Max Series Fuse Rating
|
20A
|
Request Stock
General Questions
What is the price of the Trina Solar 550 Watt Monocrystalline Solar Panel in Bangladesh?
The latest price of Trina Solar 550 Watt Monocrystalline Solar Panel in Bangladesh is BDT 24,750.00 . You can buy the Trina Solar 550 Watt Monocrystalline Solar Panel at the best price on BDTronics.com or contact us via phone.
Where to buy Trina Solar 550 Watt Monocrystalline Solar Panel in Bangladesh?
You can buy Trina Solar 550 Watt Monocrystalline Solar Panel online by ordering on our website or directly collect by visiting our store in person. We provide home delivery service all over BD with cash on delivery and online payment method. It usually takes 1-2 days to deliver inside Dhaka and 2-3 days outside Dhaka.
