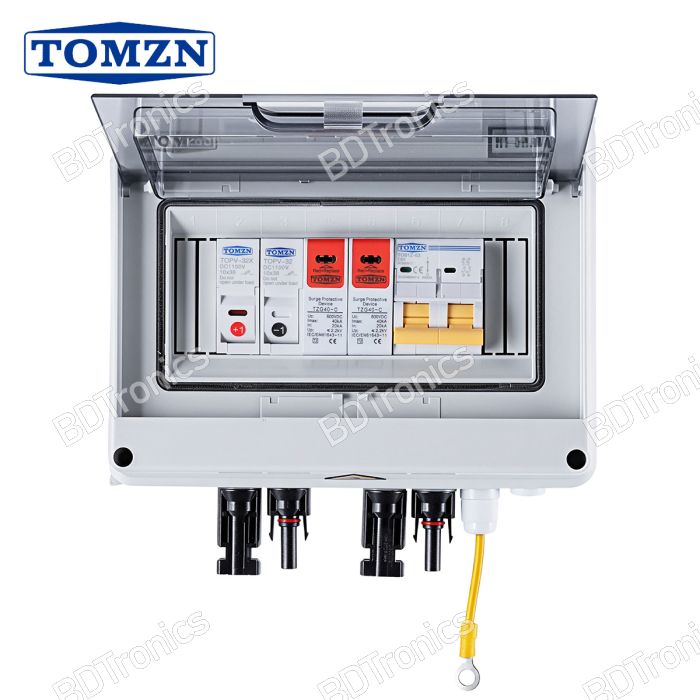

The TOMZN HT 8WAY IP65 Photovoltaic Distribution Box is a professional DC solar combiner box designed to provide complete protection and distribution for photovoltaic (PV) systems, battery energy storage systems, DC charging stations, and industrial DC power applications. With its IP65 waterproof enclosure, integrated DC MCB, fuse protection, and surge protection device (SPD), this combiner box ensures reliable and safe DC power distribution in both indoor and outdoor environments.

Designed with a 1 Input 1 Output configuration, the distribution box supports 600VDC systems with selectable current ratings from 16A to 63A. The integrated three-in-one protection system combines overload protection, short-circuit protection, and lightning surge protection into a compact enclosure, reducing installation complexity while improving system safety.

The rugged weatherproof enclosure protects electrical components from dust, moisture, and water jets, making it ideal for rooftop solar installations, off-grid solar systems, battery storage systems, and industrial DC distribution panels. BDTronics supplies genuine TOMZN photovoltaic distribution boxes in Bangladesh for residential, commercial, and industrial solar power installations.

Features:

• Professional IP65 waterproof photovoltaic distribution box

• Designed for 600VDC solar PV systems

• 1 Input 1 Output DC combiner box configuration

• Integrated DC Circuit Breaker (MCB) for overload and switching protection

• Built-in DC Fuse Protection for branch circuit short-circuit protection

• Integrated DC Surge Protection Device (SPD) against lightning and transient overvoltage

• Supports 16A, 20A, 25A, 32A, 40A, 50A, and 63A current ratings

• Compact HT 8WAY enclosure for neat installation

• UV-resistant and weatherproof enclosure suitable for outdoor installations

• Protects solar panels, batteries, inverters, and DC equipment

• Ideal for residential, commercial, and industrial photovoltaic systems

Specifications:

• Brand: TOMZN

• Model: TOPV8HT-1-1-600V

• Product Type: Photovoltaic Distribution Box / Solar Combiner Box

• Enclosure Type: HT 8WAY

• Rated Voltage: 600VDC

• Rated Current Options:

  • 16A

  • 20A

  • 25A

  • 32A

  • 40A

  • 50A

  • 63A

• Number of Poles: 2P

• Connection Mode: 1 Input / 1 Output

• Protection:

  • DC Circuit Breaker (MCB)

  • DC Fuse

  • DC Surge Protection Device (SPD)

• Enclosure Protection Rating: IP65

• Installation: Indoor & Outdoor

• Application: DC Solar Distribution

Optional Smart WiFi Circuit Breaker Compatibility

TOB9L-63WIFI (2P Smart WiFi Circuit Breaker)

• 2 Pole design

• Disconnects both Live (L) and Neutral (N)

• Leakage protection supported

• No temperature monitoring function

TOB9-63WIFI (1P Smart WiFi Circuit Breaker)

• 1 Pole design

• Disconnects Live (L) only

• Built-in temperature monitoring

• No leakage protection

Applications

• Solar photovoltaic (PV) systems

• Solar panel combiner boxes

• Battery energy storage systems

• Hybrid solar inverter installations

• Off-grid solar power systems

• On-grid solar installations

• DC charging stations

• Industrial DC distribution

• Telecom DC power systems

• Renewable energy projects

Installation Instructions

• Mount the distribution box securely on a wall or suitable surface.

• Connect the incoming DC power source to the input terminal.

• Connect the outgoing load or inverter to the output terminal.

• Ensure correct polarity before energizing the system.

• Verify proper grounding and surge protection installation.

• Select the appropriate circuit breaker current rating based on system requirements.

• Installation should be performed by qualified electrical personnel following applicable electrical safety standards.

Package Includes

• 1 × TOMZN HT 8WAY IP65 Photovoltaic Distribution Box

• Built-in DC Circuit Breaker (Model depending on selected option)

• Built-in DC Fuse Protection

• Built-in DC Surge Protection Device (SPD)
