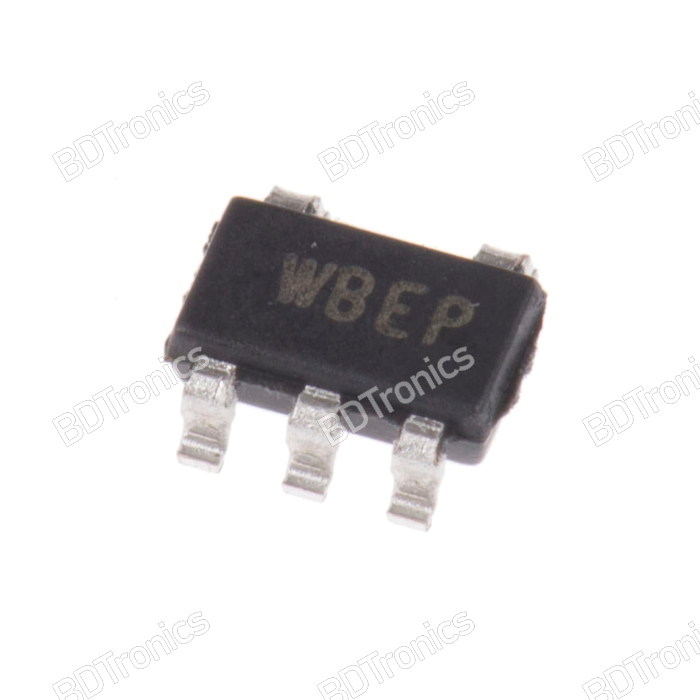

TLV6001 Op-Amp 1.8V to 5.5V Low Power Rail-to-Rail Operational Amplifier
In stock
Order before 12.00PM
The TLV6001 is a high-performance, low-power operational amplifier from Texas Instruments, designed for a wide range of general-purpose applications. This single-channel op-amp features rail-to-rail input and output, making it ideal for systems powered by a single-supply voltage. With ultra-low quiescent current and robust performance across the full operating temperature range, the TLV6001 delivers an excellent balance of power efficiency, noise performance, and affordability.
This op-amp is particularly well-suited for battery-powered applications, portable electronics, consumer devices, sensor signal conditioning, and low-frequency analog designs where space and power consumption are critical considerations.
Features:
-
Ultra-low quiescent current (75 μA) – Ideal for energy-efficient applications
-
1 MHz gain-bandwidth product – Supports general-purpose analog signal amplification
-
Rail-to-rail input and output – Maximizes signal swing even with low supply voltages
-
Wide supply range (1.8 V to 5.5 V) – Supports both low-voltage and traditional analog systems
-
Low input offset voltage (0.75 mV typical) – Ensures high-accuracy amplification
-
High input impedance with low bias current (±1 pA) – Excellent for high-impedance sensor signals
-
Unity-gain stable – Flexible for buffer or amplification use cases
-
Robust ESD protection (4 kV HBM) – Improved reliability in harsh environments
-
Built-in EMI/RFI filter – Enhanced performance in noisy environments
Specifications:
Parameter | Value |
---|---|
Manufacturer | Texas Instruments |
Product Name | TLV6001 |
Amplifier Type | Low-power, general-purpose op-amp |
Channels | 1 (Single) |
Supply Voltage Range | 1.8 V to 5.5 V |
Gain Bandwidth Product | 1 MHz |
Quiescent Current | 75 µA (typical) |
Input Offset Voltage | 0.75 mV (typical) |
Input Bias Current | ±1 pA (typical) |
Input Voltage Noise | 28 nV/√Hz at 1 kHz |
Input Common Mode Range | Rail-to-rail |
Output Swing | Rail-to-rail |
Capacitive Load Drive | Up to 150 pF |
Slew Rate | 0.5 V/μs |
Operating Temperature Range | -40°C to +125°C |
ESD Protection Level | 4 kV (HBM) |
Unity Gain Stability | Yes |
Package Options | SOT-23, SC70, SOIC, TSSOP, VSSOP |
Applications:
-
Portable and battery-powered devices
-
Low-frequency analog signal conditioning
-
High-impedance sensor interfaces
-
White goods and home appliances
-
Consumer electronics and IoT systems
-
Medical devices and wearable electronics
