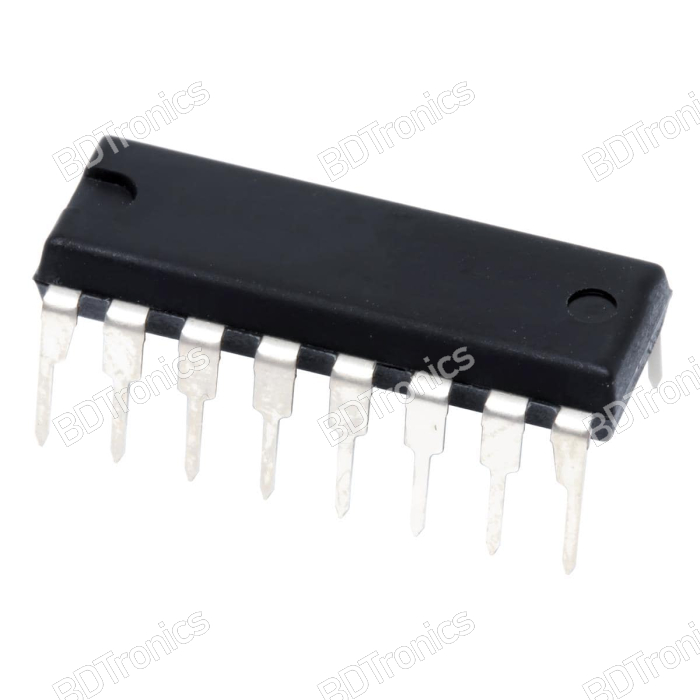

TL594CNE4 Switching Controllers Control Circuit PDIP 16

TL594CNE4 Switching Controllers Control Circuit

In stock

SKU PRD-00002636
Category: ICs
Delivery Info
truck-fast
Inside Dhaka: 1-2 days
Express (Dhaka): 24 hours
Order before 12.00PM
Outside Dhaka: 2-3 days
hand-holding-dollar
Cash on delivery all over BD
Quality
award
100% authentic product
circle-check
Quality product guaranteed
Service
repeat
7 days easy return
credit-card
Safe & secure payment
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

Product Details

Specifications:

      Technical Specifications

    • Product Category: Switching Controllers
    • Topology: Boost, Buck, Flyback, Forward, Push-Pull
    • Number of Outputs: 2 Output
    • Switching Frequency: 300 kHz
    • Duty Cycle - Max: 45 %
    • Input Voltage: 7 V to 40 V
    • Output Voltage: 40 V
    • Output Current: 200 mA
    • Minimum Operating Temperature: - 40 C
    • Maximum Operating Temperature: + 85 C
    • Mounting Style: Through Hole
    • Package / Case: PDIP-16
    • Packaging: Tube
    • Fall Time: 45 ns
    • Height: 4.57 mm
    • Length: 19.3 mm
    • Product Type: Switching Controllers
    • Rise Time: 200 ns
    • Subcategory: PMIC - Power Management ICs
    • Type: Voltage Mode PWM Controllers
    • Unit Weight: 0.033570 oz
