Specifications:

Technical Specifications

• Product Category: Operational Amplifiers - Op Amps
• Mounting Style: Through Hole

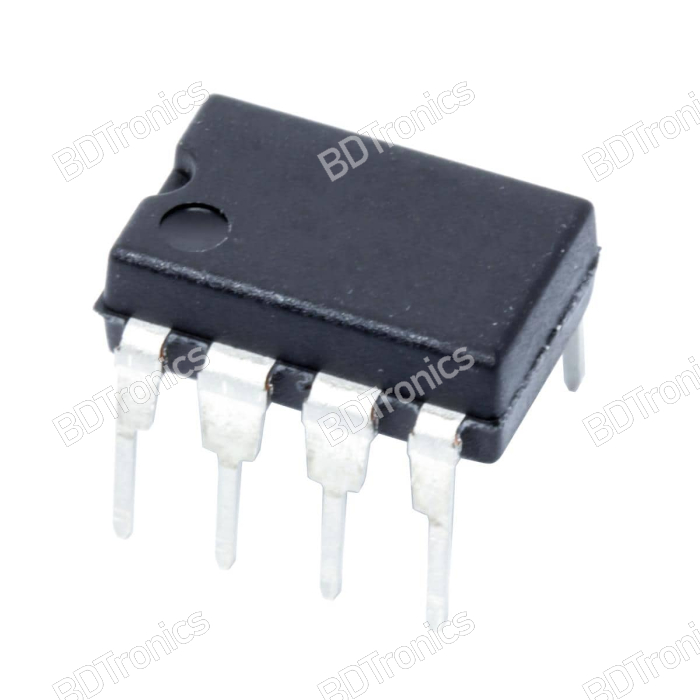

• Package / Case: PDIP-8
• Number of Channels: 1 Channel
• Supply Voltage - Max: 30 V
• GBP - Gain Bandwidth Product: 3 MHz
• Output Current per Channel: 10 mA
• SR - Slew Rate: 13 V/us
• Vos - Input Offset Voltage: 6 mV
• Supply Voltage - Min: 7 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Ib - Input Bias Current: 200 pA
• Operating Supply Current: 1.4 mA
• Shutdown: No Shutdown
• CMRR - Common Mode Rejection Ratio: 86 dB
• en - Input Voltage Noise Density: 18 nV/sqrt Hz
• Packaging: Tube
• Amplifier Type: General Purpose Amplifier
• Dual Supply Voltage: +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
• Height: 4.57 mm
• In - Input Noise Current Density: 0.01 pA/sqrt Hz
• Input Type: Rail-to-Rail
• Length: 9.81 mm
• Maximum Dual Supply Voltage: +/- 18 V
• Minimum Dual Supply Voltage: +/- 3.5 V
• Operating Supply Voltage: 7 V to 36 V, +/- 3.5 V to +/- 18 V
• Product: Operational Amplifiers
• Product Type: Op Amps - Operational Amplifiers
• Subcategory: Amplifier ICs
• Supply Type: Single, Dual
• Technology: BiFET
• Vcm - Common Mode Voltage: Negative Rail + 4 V to Positive Rail - 4 V
• Voltage Gain dB: 106.02 dB
• Width: 6.35 mm
• Unit Weight: 0.015535 oz
