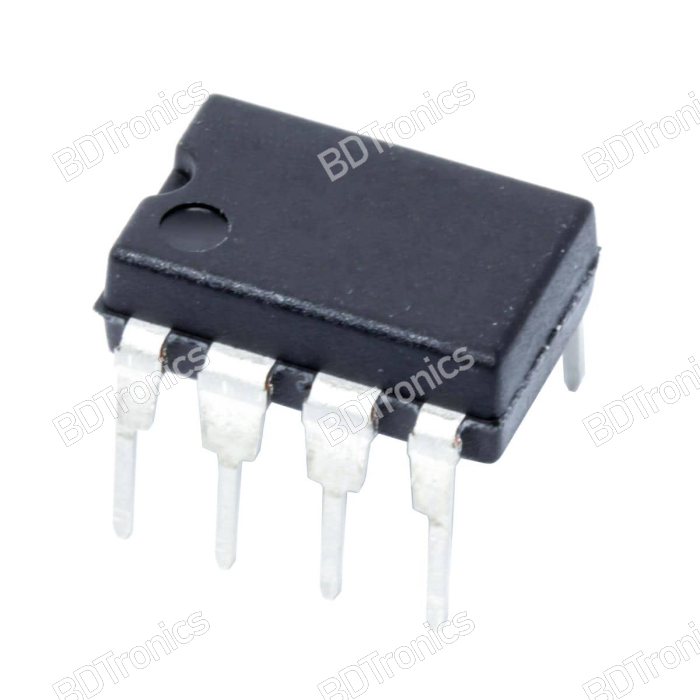

TL062IP Operational Amplifiers - Op Amps Dual Lw Pwr JFET Op PDIP 8

TL062IP Operational Amplifiers - Op Amps Dual Lw Pwr JFET Op

In stock

SKU PRD-00002627
Categories: ICs
Delivery Info
truck-fast
Inside Dhaka: 1-2 days
Express (Dhaka): 24 hours
Order before 12.00PM
Outside Dhaka: 2-3 days
hand-holding-dollar
Cash on delivery all over BD
Quality
award
100% authentic product
circle-check
Quality product guaranteed
Service
repeat
7 days easy return
credit-card
Safe & secure payment
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

Product Details

Specifications:

      Technical Specifications

    • Product Category: Operational Amplifiers - Op Amps
    • Mounting Style: Through Hole
    • Package / Case: PDIP-8
    • Number of Channels: 2 Channel
    • Supply Voltage - Max: 30 V
    • GBP - Gain Bandwidth Product: 1 MHz
    • Output Current per Channel: 10 mA
    • SR - Slew Rate: 3.5 V/us
    • Vos - Input Offset Voltage: 6 mV
    • Supply Voltage - Min: 7 V
    • Minimum Operating Temperature: - 40 C
    • Maximum Operating Temperature: + 85 C
    • Ib - Input Bias Current: 200 pA
    • Operating Supply Current: 200 uA
    • Shutdown: No Shutdown
    • CMRR - Common Mode Rejection Ratio: 86 dB
    • en - Input Voltage Noise Density: 42 nV/sqrt Hz
    • Packaging: Tube
    • Amplifier Type: Low Power Amplifier
    • Dual Supply Voltage: +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
    • Height: 4.57 mm
    • Input Type: Rail-to-Rail
    • Length: 9.81 mm
    • Maximum Dual Supply Voltage: +/- 18 V
    • Minimum Dual Supply Voltage: +/- 3.5 V
    • Operating Supply Voltage: 7 V to 36 V, +/- 3.5 V to +/- 18 V
    • Product: Operational Amplifiers
    • Product Type: Op Amps - Operational Amplifiers
    • Subcategory: Amplifier ICs
    • Supply Type: Single, Dual
    • Technology: BiFET
    • Vcm - Common Mode Voltage: Negative Rail + 4 V to Positive Rail - 4 V
    • Voltage Gain dB: 75.56 dB
    • Width: 6.35 mm
    • Unit Weight: 0.015535 oz
