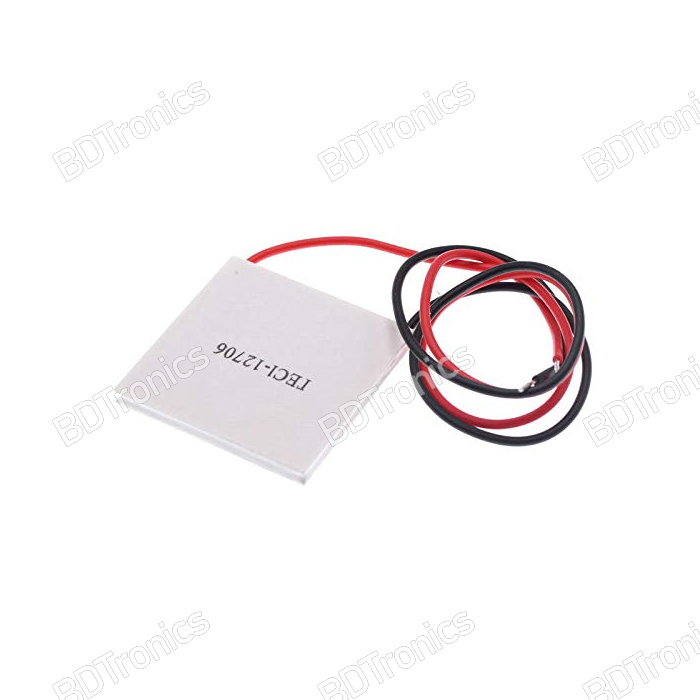

TEC1-12706 Thermoelectric Cooler Peltier Module is a compact solid-state cooling device that uses the Peltier effect to create a temperature difference between its two surfaces. When powered with DC voltage, one side becomes cold while the opposite side becomes hot, making it ideal for cooling, heating, temperature control, refrigeration, scientific experiments, and DIY electronics projects.

The TEC1-12706 is one of the most widely used thermoelectric cooling modules due to its compact size, reliable performance, low noise operation, and ease of integration. It is commonly used in mini refrigerators, water chillers, CPU cooling systems, portable coolers, laboratory equipment, and custom thermal management applications.

Features:

• Solid-state thermoelectric cooling module

• No moving parts for silent operation

• Compact and lightweight design

• Reliable and maintenance-free operation

• Generates cooling and heating simultaneously

• Fast temperature response

• Easy integration into DIY projects

• Suitable for temperature control systems

• High cooling efficiency for compact applications

• Environmentally friendly cooling technology

• Durable ceramic plate construction

• Long service life

• Low vibration operation

• Supports cooling and heating applications

• Ideal for experimental and industrial use

Applications:

• Mini refrigerators

• Portable cooling systems

• Water cooling devices

• Beverage coolers

• Electronic component cooling

• CPU cooling projects

• Scientific laboratory equipment

• Temperature control systems

• Medical cooling devices

• Dehumidifiers

• Automotive cooling projects

• Semiconductor cooling systems

• DIY thermoelectric projects

• Solar-powered cooling systems

• Thermal energy experiments

How It Works:

• Apply DC voltage to the module terminals.

• One side of the module absorbs heat and becomes cold.

• The opposite side releases heat and becomes hot.

• A heatsink and cooling fan are recommended on the hot side.

• Proper heat dissipation improves cooling performance and module lifespan.

• Reversing polarity swaps the hot and cold sides.

Installation Instructions:

• Apply thermal paste on both sides of the module.

• Mount the module between suitable heatsinks.

• Ensure firm and even pressure during installation.

• Connect to a regulated DC power source.

• Install adequate cooling on the hot side.

• Avoid excessive mechanical pressure on the ceramic surfaces.

Product Instructions:

• Use a heatsink and cooling fan for best performance.

• Do not exceed the maximum rated voltage.

• Avoid operating without heat dissipation.

• Protect the module from moisture and physical impact.

• Ensure correct polarity during installation.

• Use a stable DC power supply.

• Avoid bending or twisting the module.

Advantages:

• Compact cooling solution

• Silent operation

• No refrigerants required

• Precise temperature control capability

• Reliable solid-state technology

• Suitable for portable applications

• Easy installation and maintenance

• Energy-efficient cooling for small systems

Specifications:

• Product Model: TEC1-12706

• Product Type: Thermoelectric Cooler Module

• Technology: Peltier Effect Thermoelectric Cooling

• Standard Operating Voltage: 12V DC

• Maximum Voltage (Vmax): 15.4V DC

• Maximum Operating Current (Imax): 6.4A

• Maximum Heat Pumping Capacity (Qcmax): 60W

• Maximum Electrical Input Power: Up to 92W

• Internal Resistance: 1.98Ω ±10%

• Maximum Operating Temperature: 138°C

• Module Dimensions: 40mm × 40mm × 3.6mm

• Net Weight: 0.033kg

• Package Dimensions: 5 × 5 × 5cm

• Construction: Ceramic Plates with Semiconductor Thermoelectric Elements

• Cooling Method: Thermoelectric Heat Transfer

Package Includes:

• 1 x TEC1-12706 Thermoelectric Cooler Peltier Module
