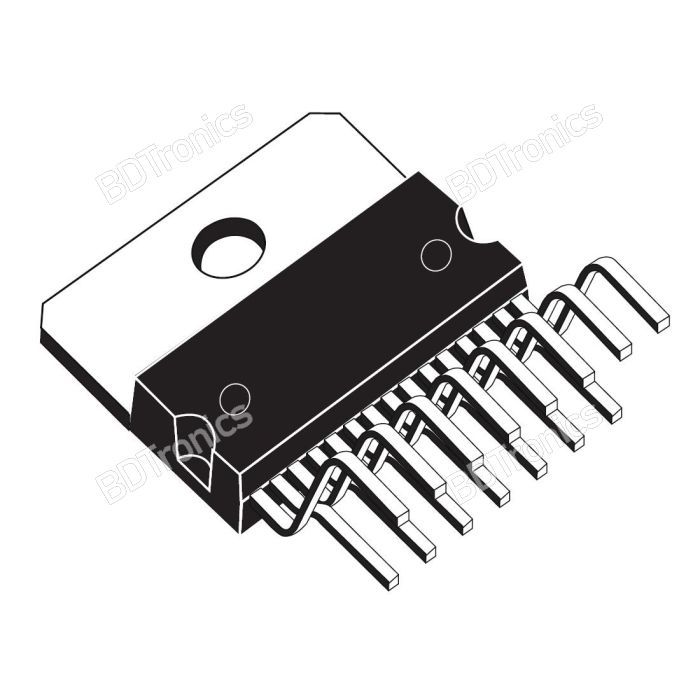

TDA7294V Audio Amplifiers 100W Audio Amplifier Multiwatt 15

TDA7294V Audio Amplifiers 100W Audio Amplifier

In stock

SKU PRD-00002624
Categories: ICs
Delivery Info
truck-fast
Inside Dhaka: 1-2 days
Express (Dhaka): 24 hours
Order before 12.00PM
Outside Dhaka: 2-3 days
hand-holding-dollar
Cash on delivery all over BD
Quality
award
100% authentic product
circle-check
Quality product guaranteed
Service
repeat
7 days easy return
credit-card
Safe & secure payment
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

Product Details

Specifications:

      Technical Specifications

    • Product Category: Audio Amplifiers
    • Product: Audio Amplifiers
    • Class: Class-AB
    • Output Power: 100 W
    • Mounting Style: Through Hole
    • Type: 1-Channel Mono
    • Package / Case: Multiwatt-15
    • Audio - Load Impedance: 8 Ohms
    • THD plus Noise: 0.01 %
    • Supply Voltage - Max: 40 V
    • Supply Voltage - Min: 10 V
    • Minimum Operating Temperature: 0 C
    • Maximum Operating Temperature: + 70 C
    • Packaging: Tube
    • Description/Function: Speaker
    • Dual Supply Voltage: +/- 12 V, +/- 15 V, +/- 18 V, +/- 24 V, +/- 28 V
    • Gain: 80 dB
    • Height: 10.7 mm
    • Ib - Input Bias Current: 500 nA
    • Input Type: Differential
    • Length: 19.6 mm
    • Maximum Dual Supply Voltage: +/- 40 V
    • Minimum Dual Supply Voltage: +/- 10 V
    • Number of Channels: 1 Channel
    • Operating Supply Current: 65 mA
    • Operating Supply Voltage: 50 V
    • Output Current: 10 A
    • Output Signal Type: Single
    • Pd - Power Dissipation: 50000 mW
    • Product Type: Audio Amplifiers
    • PSRR - Power Supply Rejection Ratio: 75 dB
    • Subcategory: Audio ICs
    • Supply Type: Dual
    • Vos - Input Offset Voltage: + 0.5 V to - 0.5 V
    • Width: 5 mm
    • Unit Weight: 0.200003 oz
