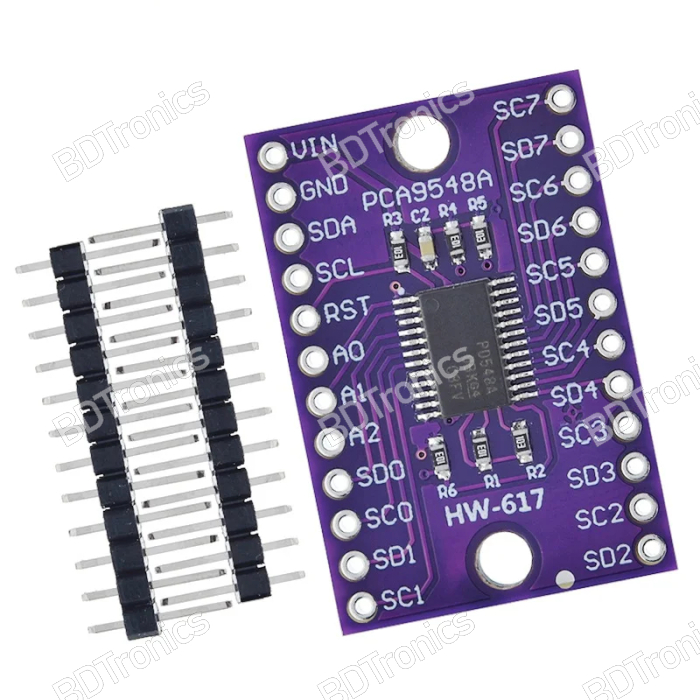

TCA9548A PCA9548A 1-to-8 I2C Multi-Channel HW-617 IIC Module is an I2C bus expansion module designed to connect multiple I2C devices with the same or different addresses to a single microcontroller. This 8-channel I2C multiplexer breakout board allows one I2C master device such as Arduino, ESP32, Raspberry Pi, or other development boards to communicate with up to eight separate I2C channels.

The TCA9548A I2C multiplexer module works as a bidirectional I2C switch that separates the main SDA/SCL bus into eight selectable downstream channels. It is especially useful when multiple sensors, OLED displays, RTC modules, or other I2C devices with identical addresses need to be used together in a single project.

Features:

• TCA9548A PCA9548A based 8-channel I2C multiplexer module

• Expands one I2C bus into eight independent I2C channels

• Supports simultaneous connection of multiple I2C devices

• Solves I2C address conflict problems

• Bidirectional I2C communication support

• Channel selection controlled through I2C commands

• Compatible with Arduino, ESP8266, ESP32, Raspberry Pi, and other controllers

• Supports multiple I2C sensors and modules

• Low power consumption design

• Compact HW-617 breakout board design

• Easy connection using standard jumper wires

• Suitable for prototyping and embedded system development

• Supports voltage level translation between different I2C voltage systems

• Reliable communication for multi-device I2C projects

• Ideal for robotics, automation, and sensor-based applications

How It Works:

• The module connects to the main controller through SDA and SCL I2C lines.

• The single I2C bus is expanded into eight separate output channels.

• Each channel can be selected through I2C commands.

• The controller communicates only with the selected I2C channel.

• Multiple devices with the same I2C address can be used by placing them on different channels.

Applications:

• Multiple OLED display projects

• Multiple LCD I2C module connections

• Sensor expansion systems

• Robotics projects

• Arduino multi-sensor applications

• ESP32 IoT projects

• Raspberry Pi sensor networks

• Environmental monitoring systems

• Automation control systems

• Industrial sensor interfaces

• Smart home projects

• Embedded electronics development

Compatible Devices:

• Arduino UNO, Nano, Mega

• ESP32 development boards

• ESP8266 boards

• Raspberry Pi boards

• Raspberry Pi Pico

• I2C OLED displays

• I2C LCD displays

• Temperature sensors

• Pressure sensors

• IMU sensors

• RTC modules

• Other I2C-compatible devices

How to Use:

• Connect VIN/VCC and GND to the controller power supply.

• Connect SDA and SCL of the main I2C bus to the input side.

• Connect I2C devices to any of the eight output channels.

• Select the required channel through software commands.

• Communicate with connected devices as a normal I2C device.

Product Instructions:

• Ensure all connected devices use the correct operating voltage.

• Check I2C address conflicts before connecting multiple devices.

• Use proper pull-up resistors if required by the circuit.

• Avoid connecting non-I2C devices to this module.

• Ensure stable power supply when using multiple connected sensors.

• Use appropriate wiring length for reliable I2C communication.

Specifications:

• Product Type: I2C Multiplexer Module

• Model: TCA9548A / PCA9548A

• Module Type: HW-617 IIC Breakout Board

• Interface: I2C / IIC

• Number of Channels: 8 Independent I2C Channels

• Input Bus: 1 I2C Channel

• Output Bus: 8 I2C Channels

• Communication Type: Bidirectional I2C Switch

• Operating Voltage: 1.65V-5.5V (TCA9548A) / 2.3V-5.5V (PCA9548A)

• Maximum Clock Frequency: Up to 400KHz

• Control Method: I2C Command Selection

• Compatible Controllers: Arduino, ESP32, ESP8266, Raspberry Pi

• Application: I2C Expansion, Sensor Multiplexing, Address Conflict Solution

• Board Type: Breakout Module
