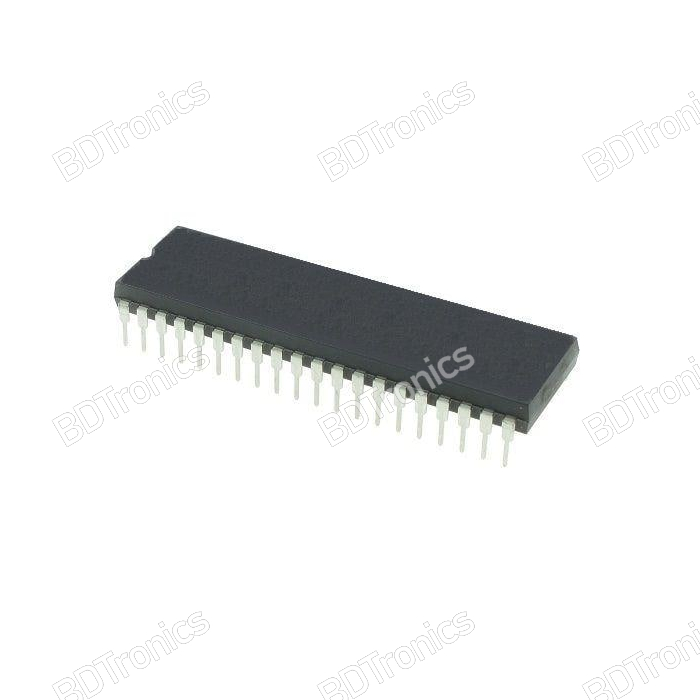

TC7109CPL Analog to Digital Converters - ADC 13 Bit Fast Recovery PDIP 40

TC7109CPL Analog to Digital Converters - ADC 13 Bit Fast Recovery

In stock

SKU PRD-00002620
Categories: ICs
Delivery Info
truck-fast
Inside Dhaka: 1-2 days
Express (Dhaka): 24 hours
Order before 12.00PM
Outside Dhaka: 2-3 days
hand-holding-dollar
Cash on delivery all over BD
Quality
award
100% authentic product
circle-check
Quality product guaranteed
Service
repeat
7 days easy return
credit-card
Safe & secure payment
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

Product Details

Specifications:

      Technical Specifications

    • Product Category: Analog to Digital Converters - ADC
    • Mounting Style: Through Hole
    • Package / Case: PDIP-40
    • Resolution: 12 bit
    • Number of Channels: 1 Channel
    • Interface Type: Parallel
    • Sampling Rate: 10 S/s
    • Input Type: Differential
    • Architecture: Dual-Slope
    • Analog Supply Voltage: - 5 V to 5 V
    • Digital Supply Voltage: - 5 V to 5 V
    • Minimum Operating Temperature: 0 C
    • Maximum Operating Temperature: + 70 C
    • Packaging: Tube
    • Height: 4.95 mm
    • INL - Integral Nonlinearity: +/- 1 Counts
    • Length: 53.21 mm
    • Number of Converters: 1 Converter
    • Operating Supply Voltage: 6.2 V
    • Pd - Power Dissipation: 1230 mW
    • Product Type: ADCs - Analog to Digital Converters
    • Reference Type: External, Internal
    • Subcategory: Data Converter ICs
    • Supply Voltage - Max: 6.2 V
    • Supply Voltage - Min: 6.2 V
    • Width: 14.73 mm
    • Unit Weight: 0.210004 oz
