The YX-360TR Analog Multitester is a reliable, high-precision analog multimeter designed for measuring AC/DC voltage, DC current, resistance, continuity, diode, and transistor parameters.
It is ideal for both educational and professional applications, offering durability, stable readings, and excellent sensitivity compared to standard digital meters.

With built-in fuse and diode protection, this multitester ensures user safety while maintaining measurement accuracy. It’s particularly valued for its ability to measure very small DC currents that many digital multimeters cannot detect.

Features:

• Measures AC/DC Voltage, DC Current, Resistance, Diode, Transistor (hFE & Iceo)

• Fuse and diode protection for safe operation

• High-sensitivity analog scale — excellent for detecting voltage fluctuations

• Decibel (dB) meter for audio and signal analysis

• Robust casing ideal for field and bench use

• Easy-to-read pointer display

• Powered by standard internal batteries (not included)

Specifications:

DC Voltage

• Ranges: 0.1V, 0.5V, 2.5V, 10V, 50V, 250V, 1000V

• Accuracy (Full Scale Deflection): ±3% (±5% at 1000V)

• Sensitivity: 20kΩ/V (25kV with optional HV probe)

AC Voltage

• Ranges: 10V, 50V, 250V, 1000V

• Accuracy (Full Scale Deflection): ±4% (±5% at 1000V)

• Sensitivity: 9kΩ/V

DC Current

• Ranges: 50μA, 2.5mA, 25mA, 250mA, 10A

• Accuracy (Full Scale Deflection): ±3% (±5% at 10A)

• Voltage Drop: Approx. 250mV

Resistance Measurement

• Ranges:

  • ×1: 0.2Ω to 2kΩ (mid-scale at 20Ω)

  • ×10: 2Ω to 20kΩ (mid-scale at 200Ω)

  • ×100: 20Ω to 200kΩ (mid-scale at 2kΩ)

  • ×1K: 200Ω to 2MΩ (mid-scale at 20kΩ)

  • ×10K: 2kΩ to 20MΩ (mid-scale at 200kΩ)

• Accuracy (Full Scale Deflection): ±3%

Transistor Test

• Iceo: 150μA – 15mA – 150mA

• hFE: 0 – 1000 (NPN / PNP, with extra connector)

Decibel Measurement

• Range: -10dB to +22dB (0dB = 1mW / 600Ω)

General

• Display Type: Pointer (Analog)

• Insulation Resistance: ≥100MΩ (DC 500V)

• Operating Temperature: 0°C – 40°C

• Insulation Class: B

• Dimensions: 148 × 100 × 35mm

• Weight: Approx. 350g

• Power Source: Standard internal batteries (not included)

• Brand: Made in China

• Model: YX-360TR

•

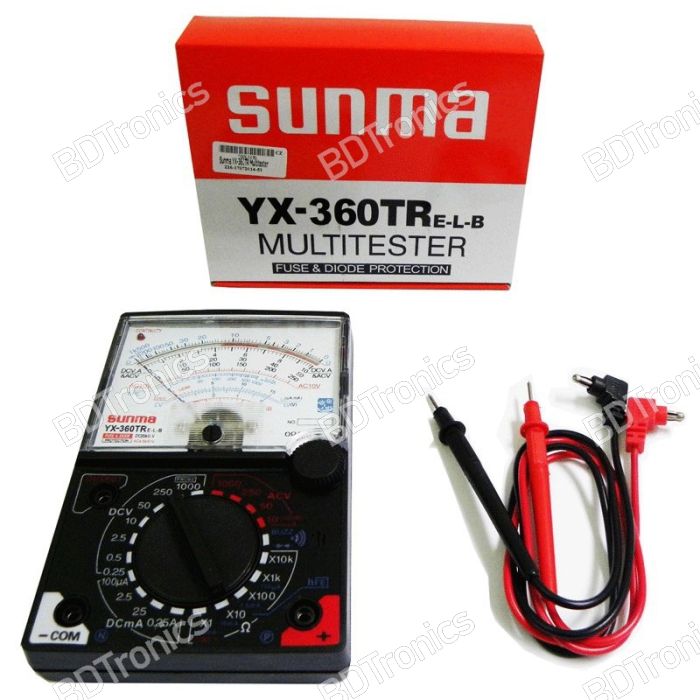

Package Includes:

• 1 × Analog Multimeter YX-360TR

• 1 × Pair of Test Probes

• 1 × User Manual

Applications:

• Educational labs

• Electronics testing and troubleshooting

• Automotive electrical diagnosis

• Audio signal measurement

• General-purpose voltage and resistance measurement
