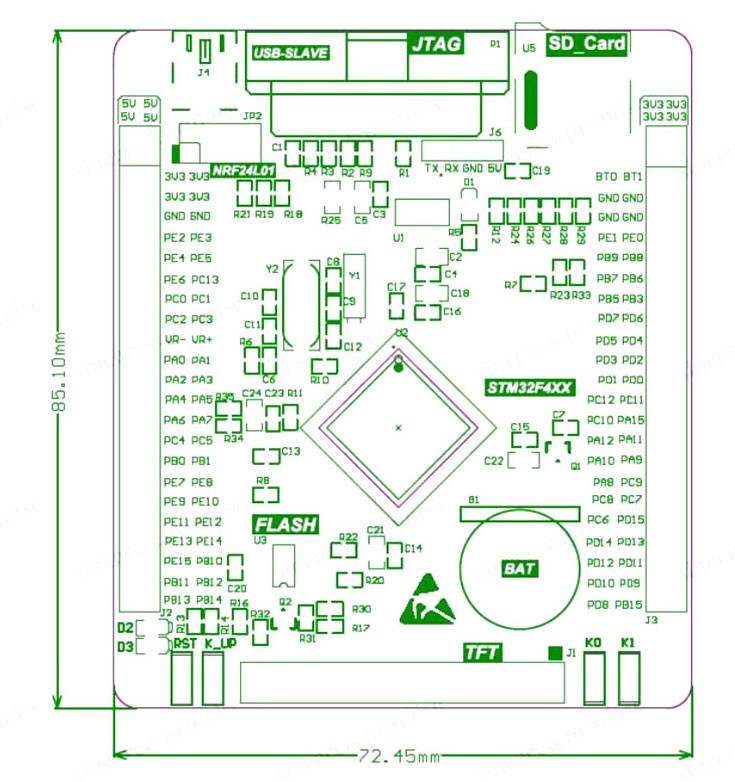

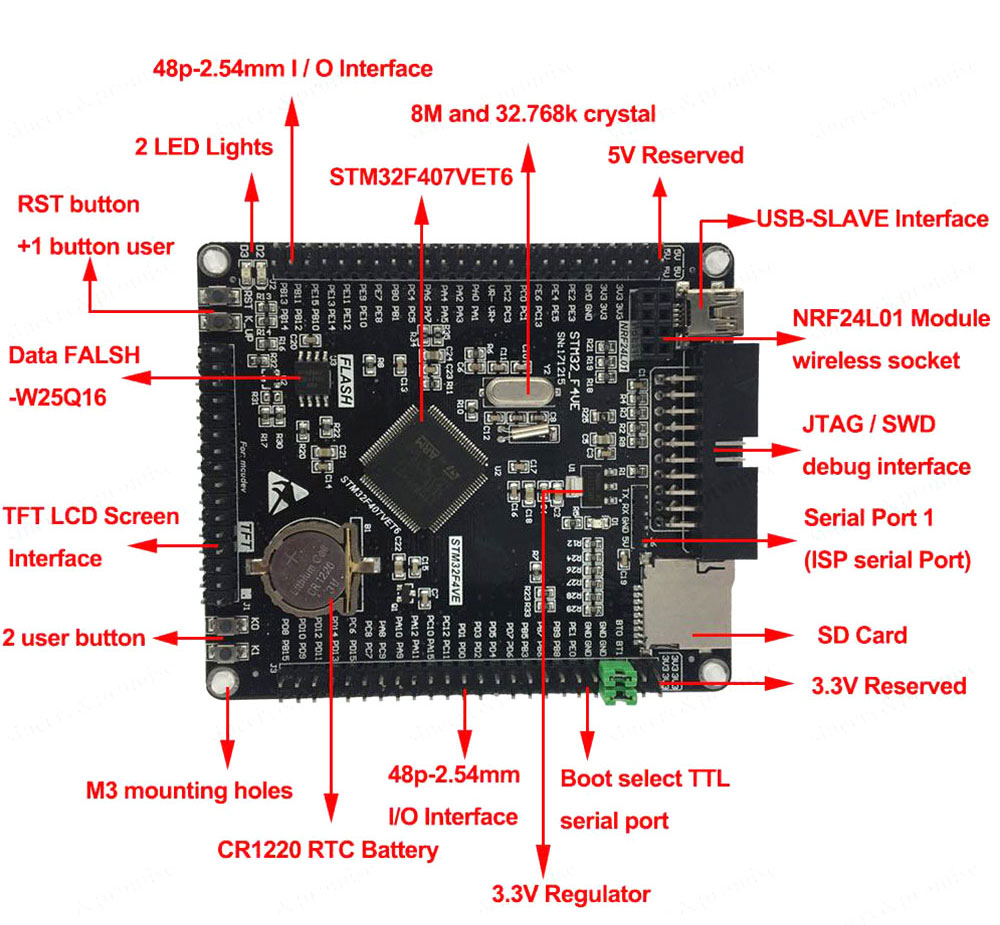

Features:

• Onboard SD Card Slot
• RTC Battery (CR1220)
• NRF24L011 2.4Ghz wireless module interface
• W25Q16 data storage

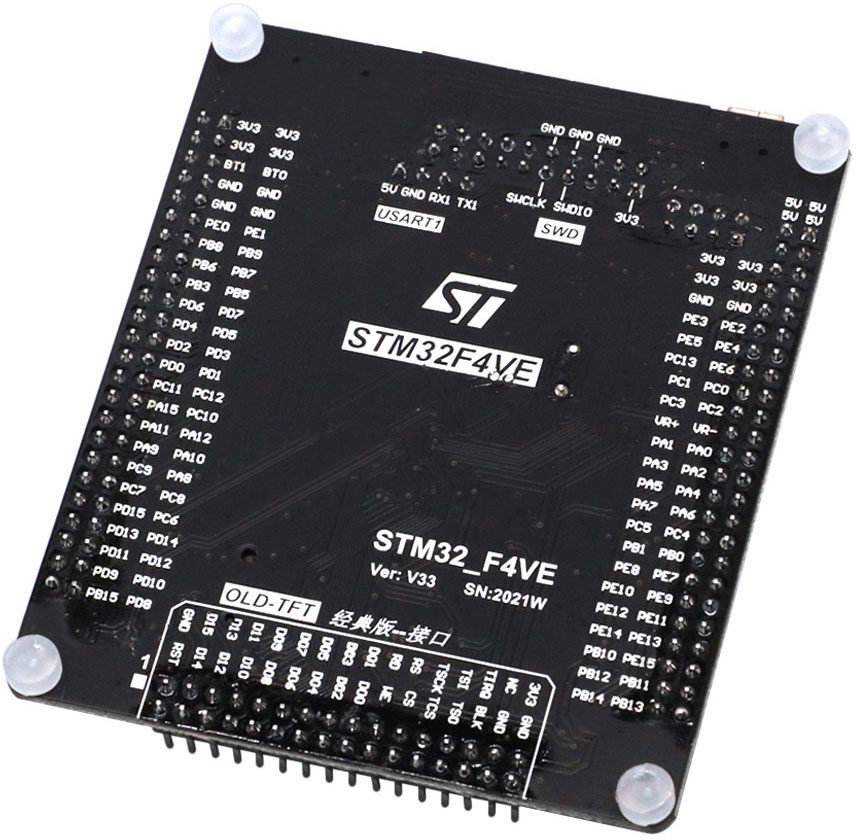

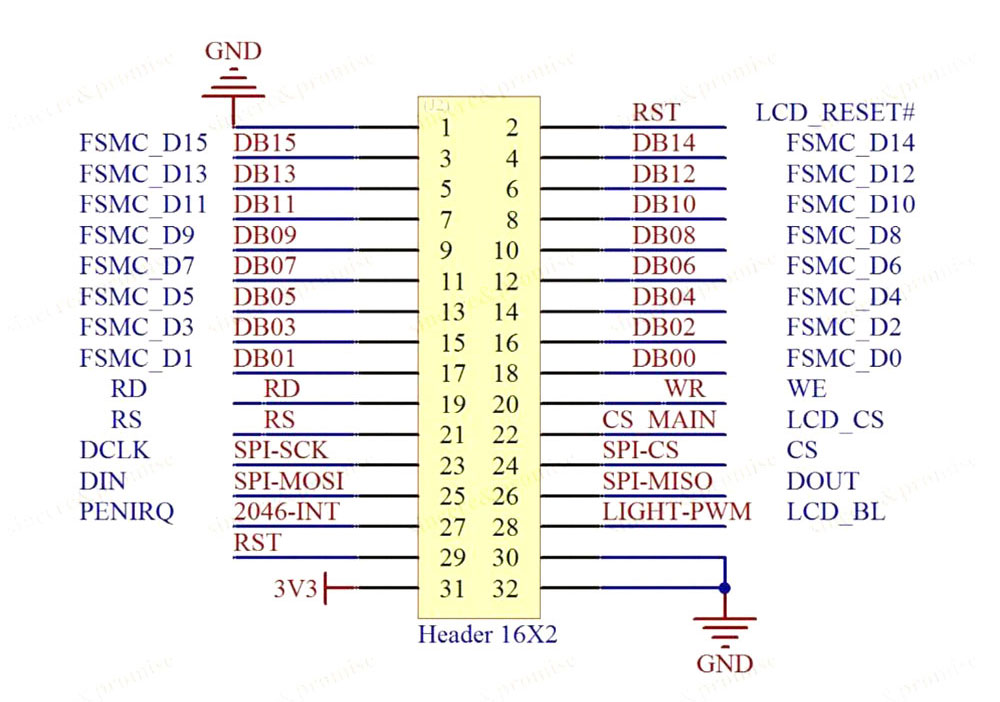

• FMSC LCD Interface support
• Multi-user keys

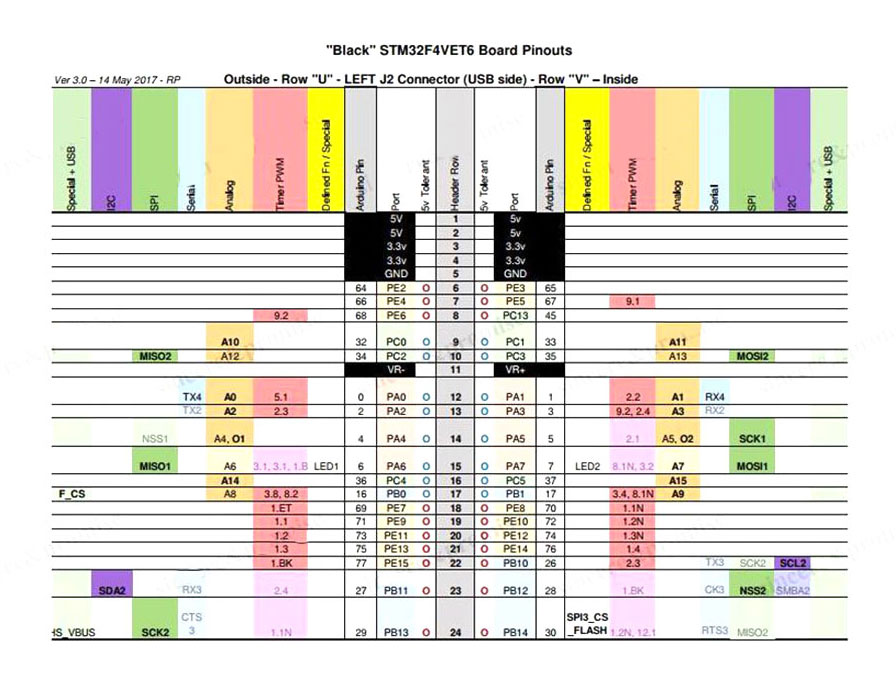

• All the CPU-10 lead
• 2.54mm pitch header pins

Specifications:

STM32F407VET6 high performance STM32 MCU

• Cortext-M4 32bit RISC
• A full set of single-cycle DSP instructions
• Operating frequency: 168MHz, 210DMIPS/1.25 DMIPS/MHz
• Operating voltage: 1.8V - 3.6V
• Storage: 512kB Flash, 192+4kB SRAM
• Interfaces:
  • 3 x SPI
  • 3 x USART
  • 2 x UART
  • 2 x I2S
  • 3 x I2C
  • 1 x FSMC
  • 1x SDIO
  • 2 x CAN
  • 1 x USB 2.0 FS/HS Controller with DMA
  • 1 x USB HS ULPI (used for external USB HS PHY)
  • 1 x 10/100 Ethernet MAC
  • 1 x 8bit to 12bit parallel camera interface
  • 3 x ADC (12 bit, 1uS)
  • 2 x DAC (12 bit)

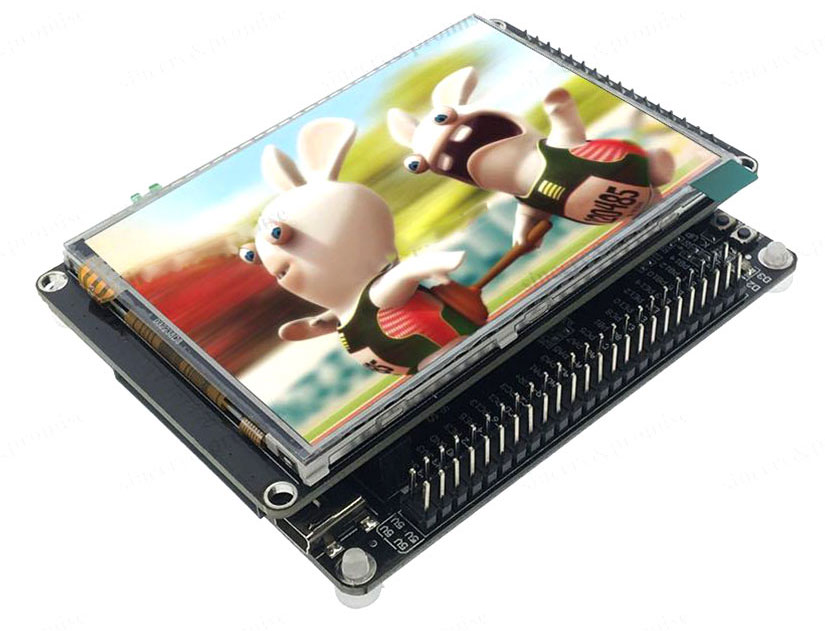

3.2 inch TFT LCD with Touch Panel

Features:

• Display resolution: [240xRGB](H) x 320(V)
• Output: 720 source outputs
• 320 gate outputs
• Common electrode output (VCOM)
• TFT LCD driver with on-chip full display RAM: 172,800 bytes
• System Interface
• 8-bits, 9-bits, 16-bits, 18-bits interface with 8080- 1 /8080- II series MCU
• 6-bits, 16-bits, 18-bits RGB interface with graphic controller
• 3-line / 4-line serial interface
• Display mode:
  • Full color mode (Idle mode OFF): 262K-color (selectable color depth mode by software)
  • Reduce color mode (Idle mode ON): 8-color
• Power saving mode: Sleep mode
• On chip functions:
• VCOM generator and adjustment
• Timing generator
• Oscillator
• DC/DC converter
• Line/frame inversion
• 1 preset Gamma curve with separate RGB Gamma correction
• Content Adaptive Brightness Control
• MTP (3 times):
• 8-bits for 101, 102, 103
• 7-bits for VCOM adjustment
• Low -power consumption architecture
• Low operating power supplies:
• VDDI = 1.65V - 3.3V (logic)
• VCI = 2.5V - 3.3V (analog)
• LCD Voltage drive: Source/NCOM power supply voltage
• AVDD - GND = 4.5V ~ 5.5V
• VCL - GND = -1.5V ~ 2.5V
• Gate driver output voltage
• VGH - GND = 12.0V ~ 21.0V
• VGL - GND = -7.0V ~ 12.5V
• VGH - VGL 32V
• VCOM driver output voltage
• VCOMH = 3.0V ~ (AVDD ndash 0.2)V
• VCOML = (VCL+0.2)V ~ 0V
• VCOMH - VCOML <= 6.0V
• Operate temperature range: -40 C to 85
• a-Si TFT LCD storage capacitor : Cst on Common structure only
