WF-1 is a suitable for SRNE Shiner and SRNE MC Series solar controller extend WiFi and Bluetooth communication. Mobile phone APP can be used on the system of wireless monitoring, parameters setting and data view.

Features:

• Supports monitoring of solar controllers, inverters, energy storage batteries, DC chargers.
  Adopt low-power Bluetooth and WiFi chips.
• Supports Wi-Fi 802.11b/g/n and BLE5.0 wireless
  standards.
• Supports Bluetooth SmartBLELink.
• Communication cable with its own communication power supply, can be plugged in and used shortly.

How to use:

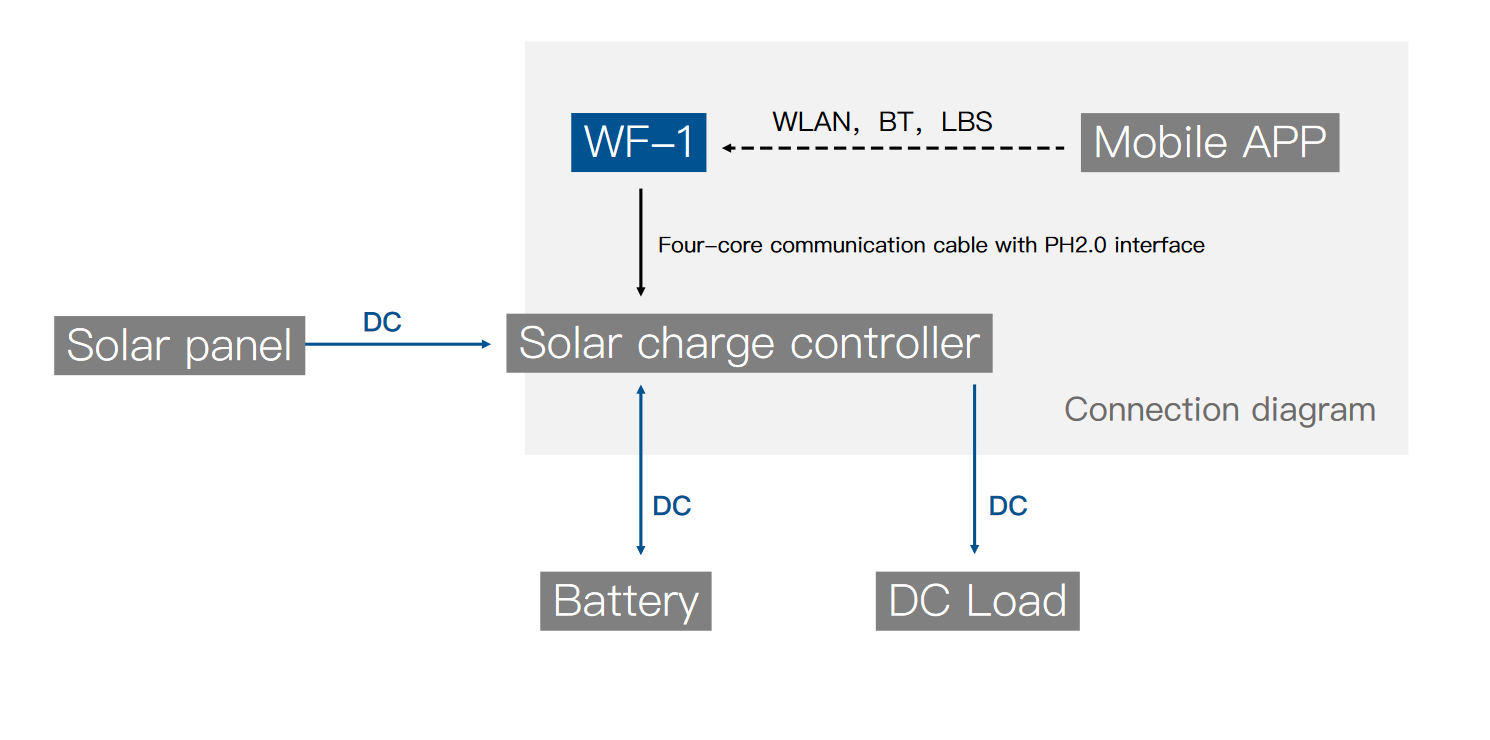

1. Connect the adapter
Connect the WIFI adapter to the communication port of the running controller
using a four-conductor communication cable.

2. Download and install the smartphone APP
Android phones: search for "Solar app" in "Google Play".
iPhones: search for "Solar app" in "APP Store".

3. Open the APP
WLAN, bluetooth and location services need to be switched on.

4. Add device
Way 1: Search to add. Click "+" then select the target MAC address device.
Way 2: Scan the code to add. Use mobile app to scan the QR code of the
device to add it.

5. Monitor device
In the "All Devices" or in the category corresponding to the product, you can view
the list of added devices, and click it to monitor corresponding device.

6. View WIFI module
Click the icon to view WIFI module status.

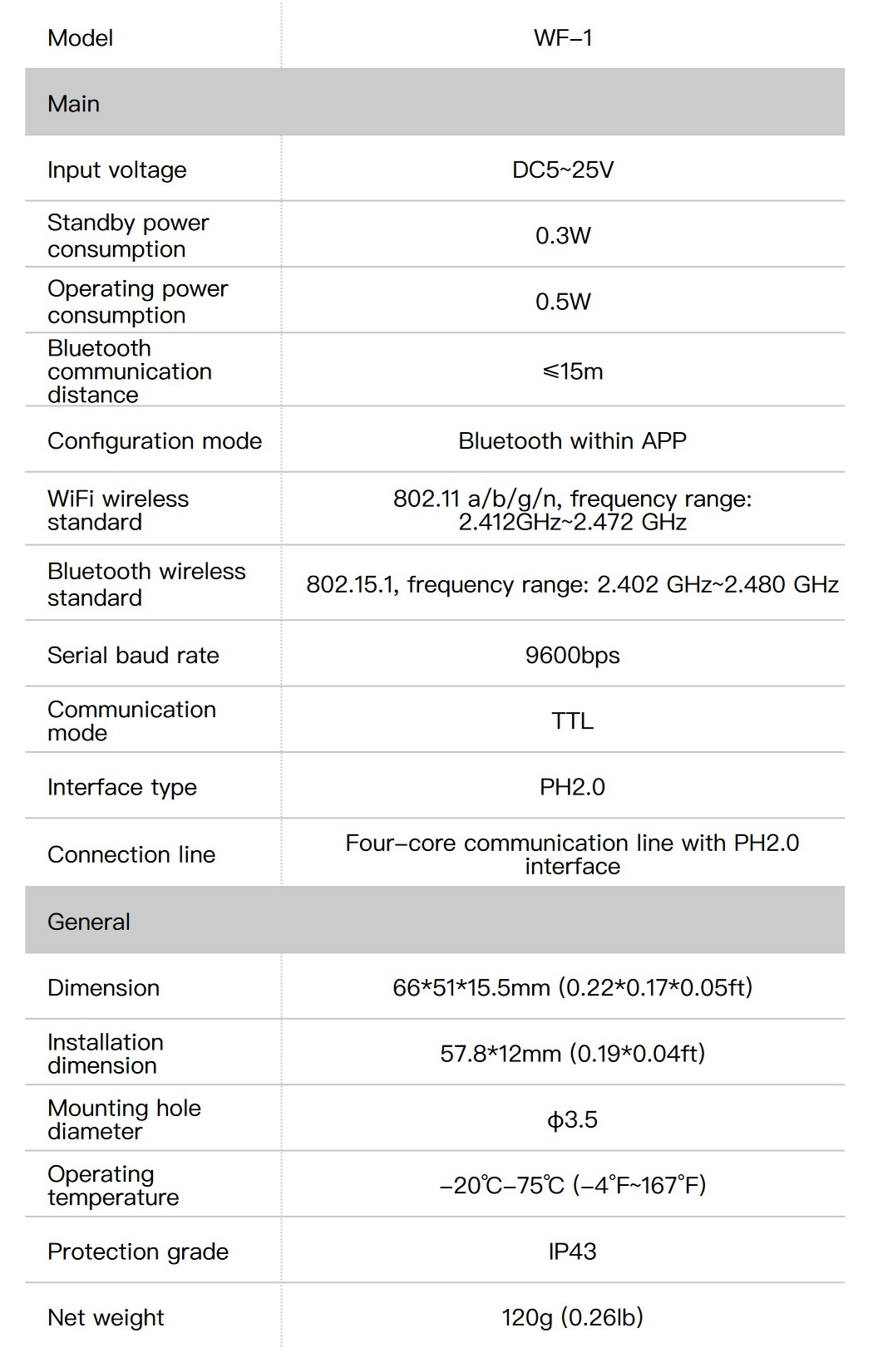

Specifications:
