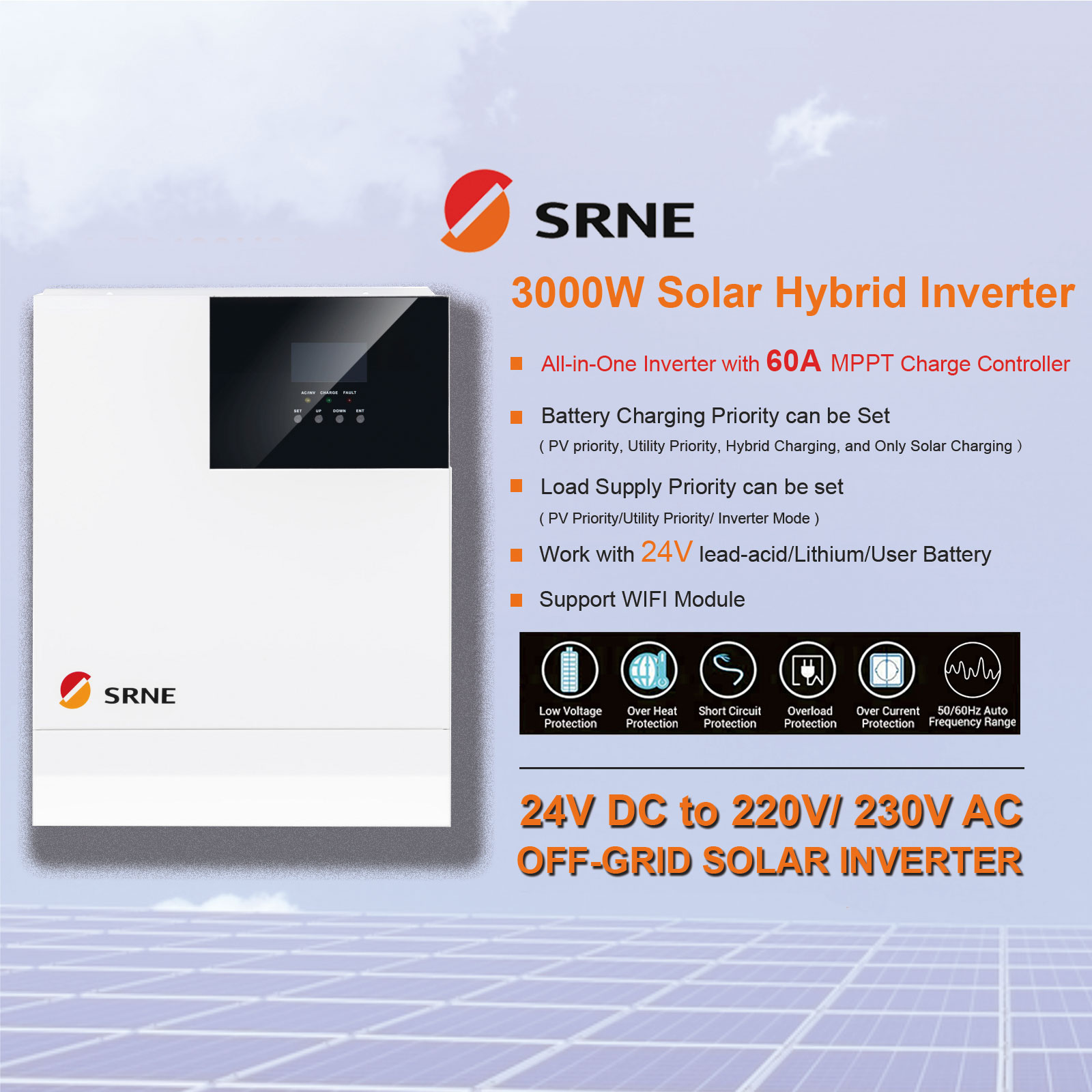

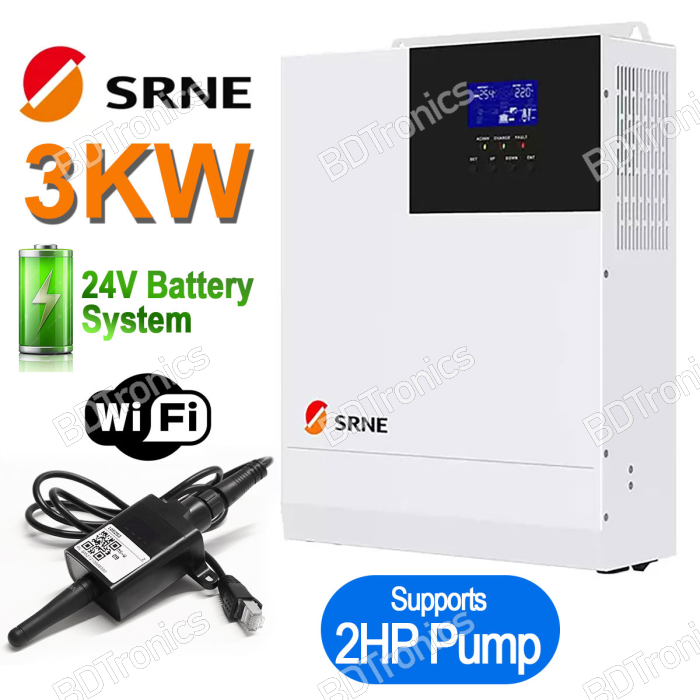

SRNE WiFi 24V 3KW Off Grid Hybrid Intelligent Pure Sine Wave Solar Inverter UPS MPPT Solar Charge Controller
In stock
Order before 12.00PM
Customer Reviews
Product Details / SRNE WiFi 24V 3KW Off Grid Hybrid Intelligent Pure Sine Wave Solar Inverter UPS MPPT Solar Charge Controller
Highlights:
-
2 Years Warranty
-
3000W Pure Sine Wave Off-grid/ Hybrid Inverter
-
24V DC Battery Voltage
-
100V Max Solar Input Voltage (PV VOC)
-
80A Battery Charge Current from AC/Grid
-
60A Solar Charge Current (MPPT)
-
USB, RS485, WIFI, GPRS, Dry node port
Features:
- It adopts full-digital double closed loop control, combined with advanced SPWM technology to output pure sine wave.
- Two output modes: mains electricity bypass and inverter output; uninterrupted power supply.
- Four charging modes: PV Only, Mains Electricity Priority, PV Priority and PV&Mains Electricity hybrid charging.
- Advanced MPPT technology with 99.9% efficiency.
- User-defined charging parameters setting(voltage, current and mode), and suitable for various types of energy storage batteries.
- Rocker switch for AC output control.
- Power saving mode, reduce no-load loss.
- Intelligent variable-speed fan to efficiently dissipate heat and extend system lifespan.
- Lithium battery activation function, allow lead-acid battery and lithium battery access.
- All-round protection for solar panels includes overload and short circuit protection, under-voltage and over-voltage protection and reverse polarity protection.
- Support variety of user-friendly communication modules, such as RS485(GPRS, WiFi, Bluetooth), CAN and USB etc., and feasible to connect with computer and mobile phone to realize remote control.
Product Overview:
Technical Specifications:
AC mode | |
Rated input voltage | 220/230Vac |
Frequency | 50Hz/ 60Hz (Auto detection) |
Maximum bypass overload current | 30A |
Inverter mode | |
Output voltage waveform | Pure sine wave |
Rated output power (W) | 3000 |
Power factor | 1 |
Rated output voltage (Vac) | 230Vac |
Loaded motor capability | 2HP |
Bypass breaker specifications | 30A |
Rated battery input voltage | 24V (Minimum starting voltage 22V) |
AC charging | |
Battery type | Lead acid or lithium battery |
Maximum charge current | 80A |
Circuit breaker specifications | 30A |
PV (Solar) charging | |
Maximum PV open circuit voltage | 100VDC |
PV operating voltage range | 30-100Vdc |
Maximum output power | 2000W |
PV charging current range (can be set) | 0-80A |
Communication interface | |
Communication interface | USB/RS485(BT/WiFi/GPRS)/Dry node control |
Request Stock
General Questions
What is the price of the SRNE WiFi 24V 3KW Off Grid Hybrid Intelligent Pure Sine Wave Solar Inverter UPS MPPT Solar Charge Controller in Bangladesh?
The latest price of SRNE WiFi 24V 3KW Off Grid Hybrid Intelligent Pure Sine Wave Solar Inverter UPS MPPT Solar Charge Controller in Bangladesh is Special Price BDT 48,500.00 Regular Price BDT 56,500.00 . You can buy the SRNE WiFi 24V 3KW Off Grid Hybrid Intelligent Pure Sine Wave Solar Inverter UPS MPPT Solar Charge Controller at the best price on BDTronics.com or contact us via phone.
Where to buy SRNE WiFi 24V 3KW Off Grid Hybrid Intelligent Pure Sine Wave Solar Inverter UPS MPPT Solar Charge Controller in Bangladesh?
You can buy SRNE WiFi 24V 3KW Off Grid Hybrid Intelligent Pure Sine Wave Solar Inverter UPS MPPT Solar Charge Controller online by ordering on our website or directly collect by visiting our store in person. We provide home delivery service all over BD with cash on delivery and online payment method. It usually takes 1-2 days to deliver inside Dhaka and 2-3 days outside Dhaka.
