SRNE Shiner 60A MPPT Solar Charge Controller 12V/ 24V Max Solar Input Voltage 100V Lithium Battery
In stock
Order before 12.00PM
Supports remote monitoring, setup and control with Bluetooth & WiFi dongle.

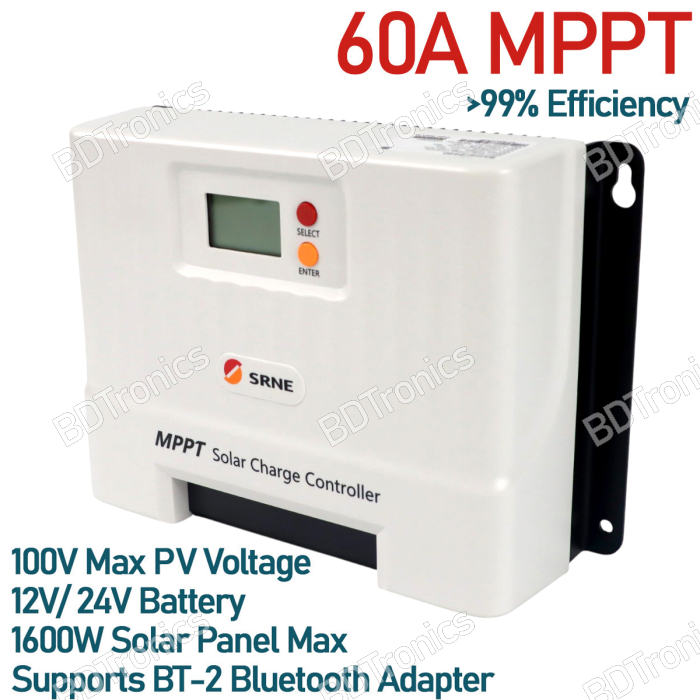

Original SRNE Shiner 2460 is a high-performance 60A MPPT solar charge controller designed for 12V and 24V battery systems. With advanced Maximum Power Point Tracking (MPPT) technology, it achieves up to 99.9% tracking efficiency and 98% conversion efficiency, delivering up to 20% more charging efficiency than traditional PWM controllers.
Built for reliability and flexibility, it supports multiple battery types including Lead-acid, Gel, AGM, and Lithium batteries. The controller includes intelligent protection features such as over-temperature, overcharge, short circuit, and lightning protection.
With optional Bluetooth and WiFi modules, you can monitor and configure your system in real time via a smartphone app or remotely from anywhere in the world.
Features:
-
Advanced MPPT algorithm – up to 20% higher efficiency than PWM
-
99.9% MPPT tracking efficiency & 98% conversion efficiency
-
Supports 12V/24V auto battery recognition
-
Compatible with Lithium, Lead-acid, Gel, AGM & user-defined batteries
-
Built-in current limiting when panel power exceeds controller rating
-
Load control modes: Light, Light+Timer, Manual, Debug, Always On
-
Smart protection: Over-temperature, short circuit, reverse polarity, lightning, and more
-
Remote monitoring options:
-
Bluetooth dongle (local app control within 10m)
-
WiFi dongle (monitor & control globally via smartphone)
-
-
RS485 (default) / CAN (optional) communication with Modbus protocol
Specifications:
|
MODEL |
Shiner2460 |
|
Solar Panel Input |
|
|
Max. Voltage of Open Circuit (VOC) |
100Vdc |
|
MPPT Voltage Range |
(Battery voltage+2V)～72Vdc |
|
Max. Solar Panel Input Power |
800W solar panel with 12V battery 1600W solar panel with 24V battery |
|
BATTERY |
|
|
Battery Type |
Lead-acid / Li-ion / User Defined |
|
Rated Battery Voltage |
12Vdc/ 24Vdc |
|
Battery Voltage Range |
8~32Vdc |
|
Rated Charging Current |
60A |
|
MPPT Charging Mode |
Buck |
|
LOAD |
|
|
Load Type |
Resistive load 、Capacitive load、Inductive load |
|
Rated Load Voltage |
Equal to battery voltage 12V/24V |
|
Rated Load Current |
20A |
|
Load Working Mode |
Light control, Light control + Time control, manual control (default), Debugging mode, Normal open |
|
EFFICIENCY |
|
|
MPPT Tracking Efficiency |
>99% |
|
Max. Charging Conversion Efficiency |
85%~98% (Correspond load power 10%~100%) |
|
COMMUNICATION |
|
|
TTL、RS485 (default) |
TTL Baud rate 9600kps ，RS485 RJ45 port |
|
CAN (optional) |
RJ45 port, RV-C protocol |
|
Bluetooth (optional) |
External module with mobile app |
|
GENERAL |
|
|
Weight |
2400g (5.3lb) |
|
Dimension |
261 x 186 x 82mm (10.23 x 7.3 x 3.2in) |
|
Protection Degree |
IP32 |
|
Operating Temperature Range |
-35°C~65°C（-31℉～149℉） |
Optional Accessories:
- Bluetooth Dongle/ Adapter: Monitor and setup SRNE shiner charge controller via your smart phone using the Bluetooth Adapter. The control range is approximately 10 meters.
- WiFi Dongle/ Adapter: Monitor and setup SRNE shiner sharge controller from anywhere in the world via your smart phone.
