Product Details / SRNE Shiner MPPT Solar Charge Controller 12V/24V 30A Max PV Input voltage 100V Lithium Battery

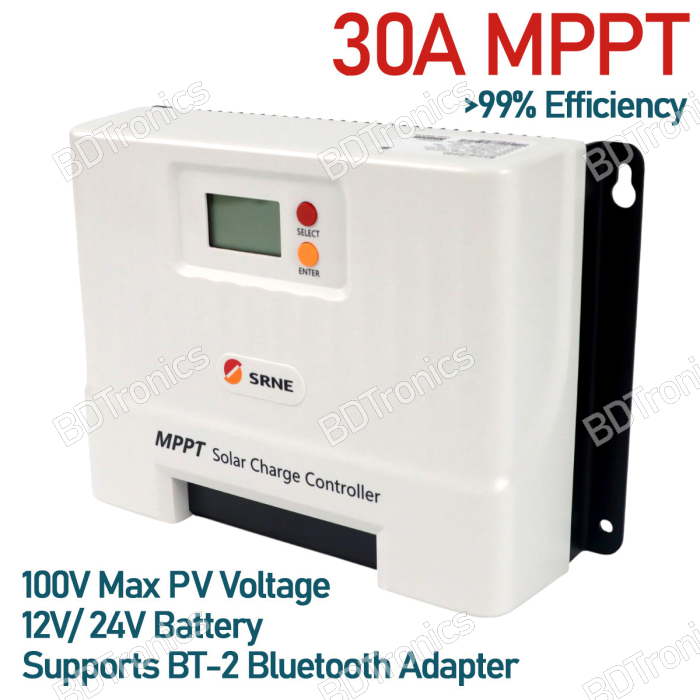

SRNE Shiner 2430 model MPPT solar charge controller 12V/24V 30A
Supports Bluetooth Monitor and LCD Display for configuration
Features:
- Built-in maximum power point tracking (MPPT) algorithm can significantly increase energy utilization efficiency of the photovoltaic system, which is about 15% to 20%higher than traditional PWM charging.
- It provides an active charging voltage regulation feature. At battery open circuit or lithium battery BMS overcharge protection, the controller battery terminal will output the rated charging voltage value.
- MPPT tracking efficiency is up to 99.9%.
- Due to an advanced digital power technology, the circuit energy conversion efficiency is as high as 98%.
- Available in multiple battery types and support charging procedures of various types of batteries such as lithium battery, colloidal battery, sealed battery, vented battery, lithium battery, etc.
- A current-limited charging mode is available. When the power of solar panel is too large and the charging current is higher than the rated valve, the controller automatically reduces the charging power so that the solar panel can operate at the rated charging current.
- Support automatic identification of lead-acid battery voltage.
- External LCD screen or Bluetooth module can be connected for viewing of equipment operating data and status, and modification of controller parameters is supported.
- Support standard Modbus protocol to meet communication needs in different occasions.
- Built-in over-temperature protection mechanism ensures that when temperature exceeds the set value of the device, the charging current decreases linearly with the temperature, thereby reducing the temperature rise of controller and avoiding high temperature damage.
- Temperature compensation and automatic adjustment of charge and discharge parameters help to improve battery life.
- Solar panel short circuit protection, battery open circuit protection and TVS lightening protection etc.
Specifications:
MODEL
|
Shiner2420
|
Shiner2430
|
Shiner2440
|
Solar Input
|
|||
Max.Voltage of Open Circuit
|
60Vdc
|
100Vdc
|
|
MPPT Voltage Range
|
(Battery voltage+2V)~45Vdc
|
(Battery voltage+2V)~72Vdc
|
|
Max.PV Input Power
|
260W/12V bat
520W/24V bat
|
400W/12V bat
800W/24V bat
|
520W/12V bat
1040W/24V bat
|
BATTERY
|
|||
Battery Type
|
Lead-acid / Li-ion / User Defined
|
||
Rated Battery Voltage
|
12/24Vdc
|
||
Battery Voltage Range
|
9~60Vdc
|
||
Rated Charging Current
|
20A
|
30A
|
40A
|
MPPT Charging Mode
|
Buck
|
||
LOAD
|
|||
Load Type
|
Resistive load 、Capacitive load、Inductive load
|
||
Rated Load Voltage
|
Equal to battery voltage 12V/24V
|
||
Rated Load Current
|
20A
|
30A
|
40A
|
Load Working Mode
|
Light control,Light control + Time control, manual control (default),Debugging mode,Normal open
|
||
EFFICIENCY
|
|||
MPPT Tracking Efficiency
|
>99%
|
||
Max. Charging Conversion Efficiency
|
85%~98%(Correspond load power10%~100%)
|
||
COMMUNICATION
|
|||
TTL、RS485 (default)
|
TTL Baud rate 9600kps ,RS485 RJ45 port
|
||
CAN (optional)
|
RJ45 port, RV-C protocol
|
||
Bluetooth (optional)
|
External module with mobile app
|
||
GENERAL
|
|||
Weight
|
650g(1.43lb)
|
1200g(2.64lb)
|
1750g(3.85lb)
|
Dimension
|
181*118*61.7mm(7.1*4.6*2.4in)
|
187*133*72mm(7.3*5.2*2.8in)
|
228*160*72mm(8.9*6.2*2.8in)
|
Protection Degree
|
IP32
|
||
Operating Temperature Range
|
-35°C~65°C(-31℉~149℉)
|
