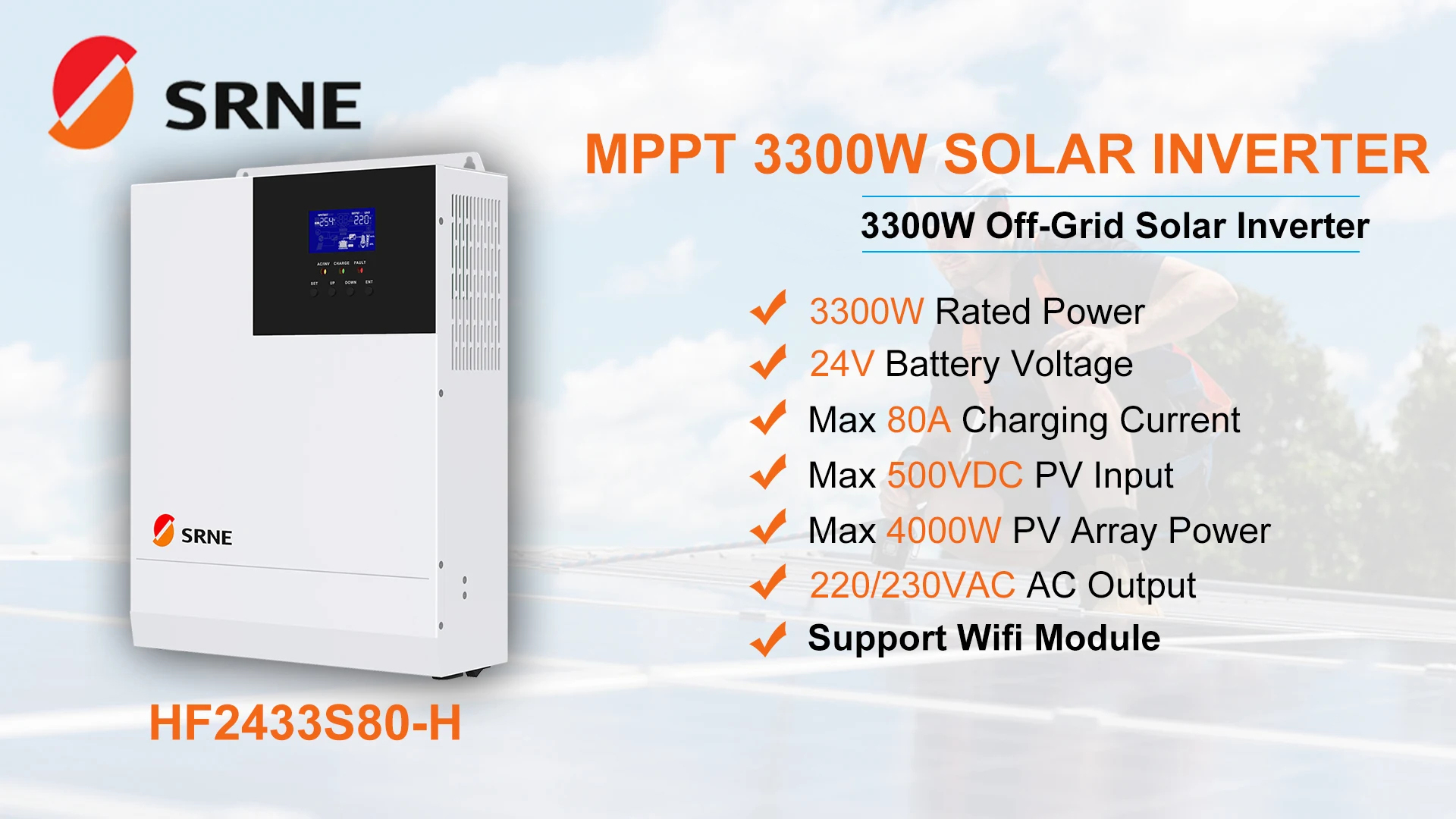

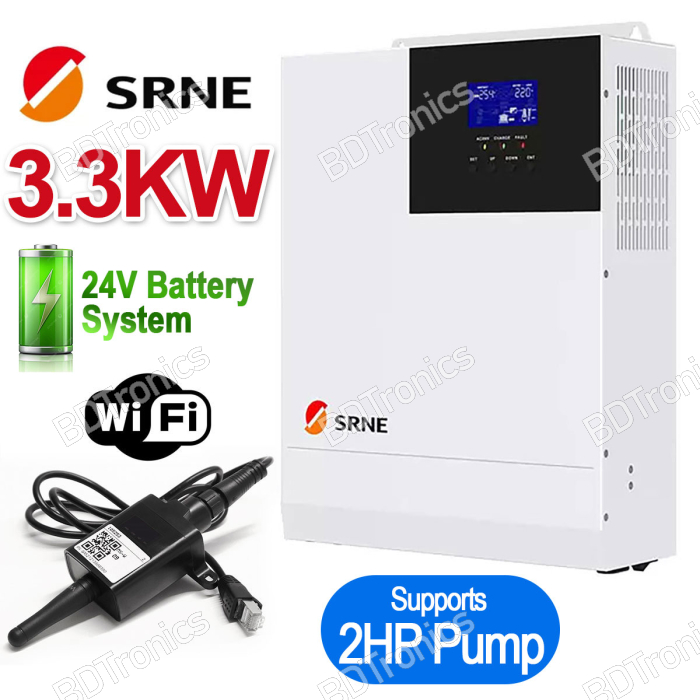

SRNE 3.3KW Off-Grid Solar Inverter HF2430S80-H with Solar IPS with MPPT Controller
This product is out of stock. Are you interested about this product?
Order before 12.00PM
Highlights:
-
2 Years Warranty
-
3300W Pure Sine Wave Off-grid Inverter
-
24V DC Battery Voltage
-
500V Max Solar Input Voltage (PV VOC)
-
4000W Max Solar Panel Power
-
80A MPPT Solar Charge Controller
-
80A Battery Charge Current from Utility/Grid
-
2HP Motor Load Capacity
-
Lead Acid/ Tall Tubular/ GEL/ Li-ion/ LiFePO4 Battery Support
-
USB, RS485, WIFI, GPRS, Dry node port
Specifications:
|
Model |
HF2430S80-H |
|
AC mode |
|
|
Rated input voltage |
220Vac/230Vac |
|
Input voltage range |
(170Vac~280Vac) ±2%；(90Vac-280Vac) ±2% |
|
Frequency |
50Hz/ 60Hz (auto-sensing) |
|
Frequency Range |
47±0.3Hz-55±0.3Hz (50Hz)/57±0.3Hz-65±0.3Hz (60Hz); |
|
Overload/short circuit protection |
Circuit breaker |
|
Efficiency |
>95% |
|
Conversion time (bypass and inverter) |
10ms (Typical value) |
|
AC reverse protection |
Available |
|
Maximum bypass overload current |
30A |
|
Inverter mode |
|
|
Output voltage waveform |
Pure sine wave |
|
Rated output power(VA) |
3300 |
|
Rated output power(W) |
3300 |
|
Power factor |
1 |
|
Rated output voltage (Vac) |
230Vac |
|
Output voltage error |
±5% |
|
Output frequency range (Hz) |
50Hz ± 0.3Hz/60Hz ± 0.3Hz |
|
Efficiency |
>92% |
|
Overload protection |
(102%<load<110%) ±10%: reporting error and turn off the output after 5 minutes; (110%<load<125%) ±10%: reporting error and turn off the output after 10 seconds; |
|
Peak power |
6000VA |
|
Loaded motor capacity |
2HP |
|
Output short-circuit protection |
Breaker |
|
Specification of bypass breaker |
30A |
|
Rated battery input voltage |
24V (minimum start voltage 22V) |
|
Battery voltage range |
20.0Vdc~33Vdc ± 0.6Vdc (Undervoltage alarm/shutdown voltage/overvoltage alarm /overvoltage recovery... settable on LCD screen) |
|
Power saving mode |
Load ≤50W |
|
AC charge |
|
|
Battery type |
Lead acid or lithium battery |
|
Maximum charge current |
80A |
|
Charge current error |
± 5Adc |
|
Charge voltage range |
20~33Vdc |
|
Short-circuit protection |
Breaker and blown fuse |
|
Breaker specification |
30A |
|
Overcharge protection |
Turn off charge after 1min alarm |
|
Solar charge |
|
|
Maximum PV opencircuit voltage |
500Vdc |
|
PV operation voltage range |
120-500Vdc |
|
MPPT voltage range |
120-450Vdc |
|
Battery voltage range |
20~33Vdc |
|
Maximum output power |
4000W |
|
Charge current range of solar energy (settable) |
0-80A |
|
Charge short-circuit protection |
Blown fuse |
|
Wiring protection |
Reverse polarity protection |
|
Authentication specification |
|
|
Specification authentication |
CE(IEC 62109-1) |
|
EMC authentication grade |
EN61000 |
|
Operation temperature range |
-15°C to 55°C |
|
Storage temperature range |
-25°C ~ 60°C |
|
Humidity range |
5% to 95% (Conformal coating protection) |
|
Noise |
≤60dB |
|
Thermal dissipation |
Forced cooling with adjustable air speed |
|
Communication interface |
USB/RS485 (WiFi/GPRS)/dry node control |
|
Dimension (L*W*D) |
378mm*280mm*103mm |
|
Weight (kg) |
6.9 |
Features:
- It adopts full-digital double closed loop control, combined with advanced SPWM technology to output pure sine wave.
- Two output modes: mains electricity bypass and inverter output; uninterrupted power supply.
- Four charging modes: PV Only, Mains Electricity Priority, PV Priority and PV&Mains Electricity hybrid charging.
- Advanced MPPT technology with 99.9% efficiency.
- User-defined charging parameters setting(voltage, current and mode), and suitable for various types of energy storage batteries.
- Rocker switch for AC output control.
- Power saving mode, reduce no-load loss.
- Intelligent variable-speed fan to efficiently dissipate heat and extend system lifespan.
- Lithium battery activation function, allow lead-acid battery and lithium battery access.
- All-round protection for solar panels includes overload and short circuit protection, under-voltage and over-voltage protection and reverse polarity protection.
- Support variety of user-friendly communication modules, such as RS485(GPRS, WiFi, Bluetooth), CAN and USB etc., and feasible to connect with computer and mobile phone to realize remote control.
