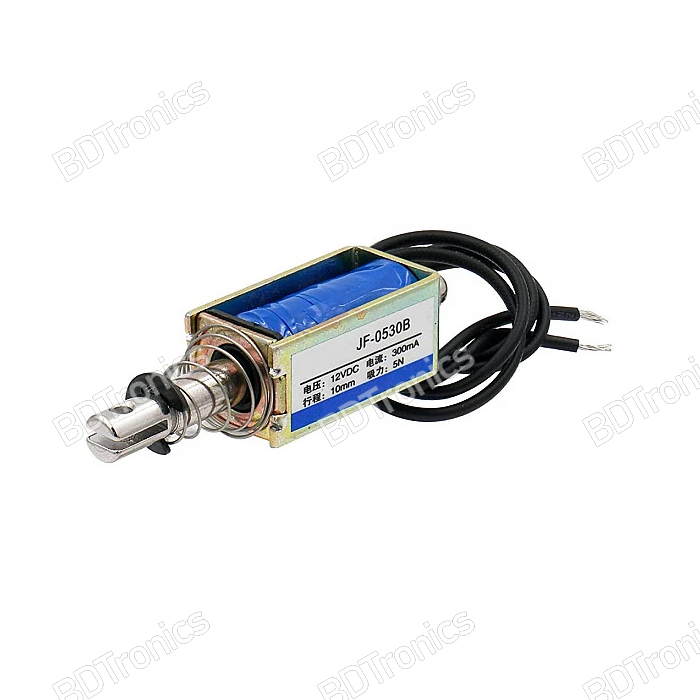

The JF-0530B DC 12V Pull Push Solenoid is a compact electromagnetic actuator designed for short-stroke mechanical movement, locking, releasing, switching and positioning applications. With a 10mm stroke and 5N force, BDTronics offers this small solenoid for robotics, automation, DIY electronics, control mechanisms and custom mechanical projects.

When 12V DC power is applied to the solenoid coil, the electromagnetic mechanism moves the plunger to produce linear push or pull movement. Its compact size makes it suitable for applications where a small electrically controlled mechanical actuator is required.

Features:

• JF-0530B electromagnetic solenoid

• DC 12V operating voltage

• Pull and push type linear movement

• 10mm stroke length

• 5N force

• Compact electromagnetic actuator

• Fast and simple ON/OFF control

• Suitable for mechanical locking and releasing

• Suitable for robotics and automation

• Useful for DIY electronic projects

• Suitable for switches, latches and mechanical mechanisms

• Easy integration with relay, transistor or MOSFET control circuits

Specifications:

• Model: JF-0530B

• Product Type: Pull Push Solenoid

• Operating Voltage: DC 12V

• Stroke: 10mm

• Force: 5N

• Actuation: Electromagnetic linear movement

• Movement Type: Push / Pull

• Application: Locking, releasing, switching, positioning and automation

Applications:

The JF-0530B solenoid can be used for electronic locks, mechanical latches, automatic switches, robotics, vending mechanisms, dispensing mechanisms, small automation systems, DIY machines, control panels and custom electromechanical projects.

It can also be combined with a microcontroller such as Arduino, ESP32 or STM32 using a suitable transistor or MOSFET driver circuit.

Control:

The solenoid is controlled by applying 12V DC to its coil. For electronic control, use a suitable MOSFET or transistor driver and an appropriate flyback diode across the coil when switching it with a semiconductor device. The driver and power supply should be selected according to the solenoid's actual current requirement.

Important Notes:

• Operate the solenoid with the specified 12V DC voltage.

• Do not apply excessive voltage to the coil.

• The specified 5N force depends on the operating position and mechanical conditions.

• Ensure the plunger has sufficient clearance for smooth movement.

• For frequent or continuous operation, consider the solenoid's duty cycle and heat generation.

• Use suitable electrical protection when controlling the coil electronically.
