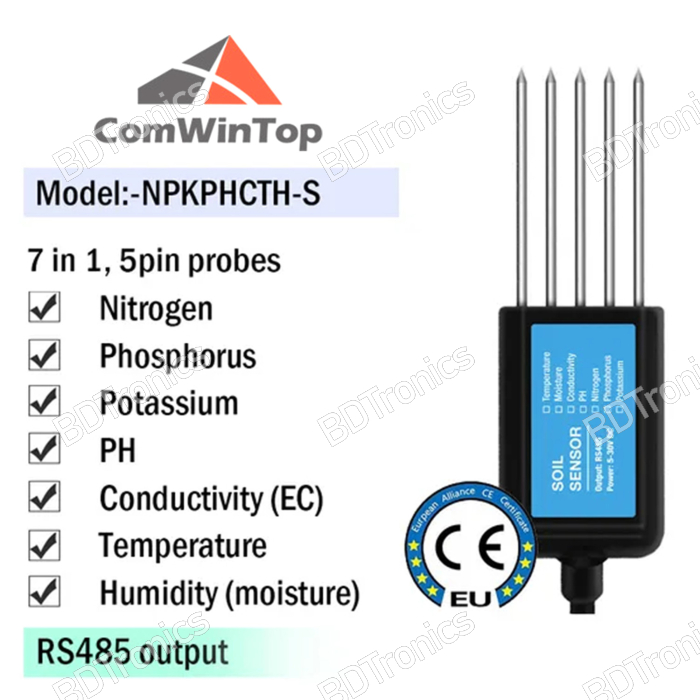

The 5-in-1 NPK Soil Sensor is a comprehensive agricultural monitoring device that measures seven critical soil parameters: Nitrogen (N), Phosphorus (P), Potassium (K), soil moisture, temperature, pH, and electrical conductivity (EC). This tutorial will guide you through interfacing this RS485-based sensor with an Arduino UNO to create a complete soil monitoring system.

This sensor is particularly useful for precision agriculture, greenhouse management, and smart farming applications. By the end of this tutorial, you'll be able to read all sensor values and display them on the Serial Monitor.

Components Required

Hardware

• Arduino UNO
• CWT 5-in-1 NPK Soil Sensor (RS485)
• MAX485 TTL to RS485 Converter Module
• Breadboard
• Jumper wires
• 5V Power supply (or use Arduino's 5V output)

Software

• Arduino IDE (version 1.8.0 or higher)
• ModbusMaster library (install via Library Manager)

Understanding the Sensor

Measured Parameters

Communication Protocol

• Interface: RS485 (Modbus RTU)
• Default Address: 1
• Baud Rate: 4800 bps
• Data Format: 8N1 (8 data bits, no parity, 1 stop bit)

Register Map

• 0x0000: Humidity (0.1% RH resolution)
• 0x0001: Temperature (0.1°C resolution)
• 0x0002: Conductivity (1 μS/cm)
• 0x0003: pH (0.1 resolution)
• 0x0004: Nitrogen (1 mg/kg)
• 0x0005: Phosphorus (1 mg/kg)
• 0x0006: Potassium (1 mg/kg)

Circuit Diagram

Wiring Connections Sensor to MAX485 Module:

Sensor Wire Color  →  MAX485 Module
Brown (Power +)    →  Not connected to MAX485
Black (Power -)    →  Not connected to MAX485
Yellow/Green (A+)  →  A+
Blue (B-)          →  B-

MAX485 Module to Arduino UNO:

MAX485 Pin  →  Arduino Pin
VCC         →  5V
GND         →  GND
DI          →  Pin 2 (TX)
RO          →  Pin 3 (RX)
DE          →  Pin 4
RE          →  Pin 4
A+          →  Sensor Yellow/Green wire
B-          →  Sensor Blue wire

Sensor Power:

Sensor Wire  →  Connection
Brown (+)    →  5V (from Arduino or external supply)
Black (-)    →  GND

Arduino Code

Install Required Library

1. Open Arduino IDE
2. Go to Sketch → Include Library → Manage Libraries
3. Search for "ModbusMaster"
4. Install the library by Doc Walker

Complete Arduino Sketch

/*
 * 5-in-1 NPK Soil Sensor with Arduino UNO
 *
 * This sketch reads soil parameters from a CWT NPK sensor via RS485/Modbus
 * Measured parameters: Temperature, Humidity, Conductivity, pH, N, P, K
 *
 * Hardware Connections:
 * - MAX485 DE/RE to Arduino Pin 4
 * - MAX485 DI to Arduino Pin 2
 * - MAX485 RO to Arduino Pin 3
 * - Sensor A+ to MAX485 A+
 * - Sensor B- to MAX485 B-
 * - Sensor power: Brown(+5V), Black(GND)
 */

#include <SoftwareSerial.h>
#include <ModbusMaster.h>

// Pin definitions
#define MAX485_DE      4    // Driver Enable pin
#define MAX485_RE_NEG  4    // Receiver Enable pin (active low, connected to DE)
#define RX_PIN         3    // Software Serial RX
#define TX_PIN         2    // Software Serial TX

// Sensor Modbus address and register definitions
#define SENSOR_ADDRESS 1    // Default sensor address

// Register addresses (from manual)
#define REG_HUMIDITY     0x0000  // Soil moisture (0.1% RH)
#define REG_TEMPERATURE  0x0001  // Soil temperature (0.1°C)
#define REG_CONDUCTIVITY 0x0002  // EC value (μS/cm)
#define REG_PH           0x0003  // pH value (0.1)
#define REG_NITROGEN     0x0004  // Nitrogen content (mg/kg)
#define REG_PHOSPHORUS   0x0005  // Phosphorus content (mg/kg)
#define REG_POTASSIUM    0x0006  // Potassium content (mg/kg)

// Create software serial port for RS485 communication
SoftwareSerial modbusSerial(RX_PIN, TX_PIN);

// Create ModbusMaster object
ModbusMaster node;

// Variables to store sensor readings
float soilMoisture = 0.0;
float soilTemperature = 0.0;
uint16_t soilConductivity = 0;
float soilPH = 0.0;
uint16_t nitrogen = 0;
uint16_t phosphorus = 0;
uint16_t potassium = 0;

/**
 * Modbus pre-transmission callback
 * Sets MAX485 to transmit mode
 */
void preTransmission() {
  digitalWrite(MAX485_RE_NEG, HIGH);  // Enable transmit mode
  digitalWrite(MAX485_DE, HIGH);
}

/**
 * Modbus post-transmission callback
 * Sets MAX485 to receive mode
 */
void postTransmission() {
  digitalWrite(MAX485_RE_NEG, LOW);   // Enable receive mode
  digitalWrite(MAX485_DE, LOW);
}

void setup() {
  // Initialize Serial Monitor for debugging
  Serial.begin(9600);
  Serial.println("=== 5-in-1 NPK Soil Sensor ===");
  Serial.println("Initializing...");

  // Initialize DE/RE control pins
  pinMode(MAX485_RE_NEG, OUTPUT);
  pinMode(MAX485_DE, OUTPUT);

  // Set MAX485 to receive mode initially
  digitalWrite(MAX485_RE_NEG, LOW);
  digitalWrite(MAX485_DE, LOW);

  // Initialize software serial for Modbus communication
  // Sensor default: 4800 baud, 8N1
  modbusSerial.begin(4800);

  // Initialize Modbus communication
  node.begin(SENSOR_ADDRESS, modbusSerial);

  // Set Modbus callbacks
  node.preTransmission(preTransmission);
  node.postTransmission(postTransmission);

  Serial.println("Initialization complete!");
  Serial.println("Starting measurements...\n");

  delay(1000);
}

void loop() {
  // Read all sensor values
  bool success = readSensorData();

  if (success) {
    // Display readings on Serial Monitor
    displaySensorData();
  } else {
    Serial.println("ERROR: Failed to read sensor data!");
    Serial.println("Check wiring and connections.\n");
  }

  // Wait 5 seconds before next reading
  delay(5000);
}

/**
 * Read all sensor data via Modbus
 * Returns true if successful, false otherwise
 */
bool readSensorData() {
  uint8_t result;

  // Read 7 holding registers starting from address 0x0000
  // This reads: Humidity, Temperature, Conductivity, pH, N, P, K
  result = node.readHoldingRegisters(REG_HUMIDITY, 7);

  if (result == node.ku8MBSuccess) {
    // Extract values from response buffer
    // Values are stored in 16-bit registers

    // Humidity (0.1% RH resolution, so divide by 10)
    soilMoisture = node.getResponseBuffer(0) / 10.0;

    // Temperature (0.1°C resolution, so divide by 10)
    soilTemperature = node.getResponseBuffer(1) / 10.0;

    // Conductivity (μS/cm, direct value)
    soilConductivity = node.getResponseBuffer(2);

    // pH (0.1 resolution, so divide by 10)
    soilPH = node.getResponseBuffer(3) / 10.0;

    // Nitrogen (mg/kg, direct value)
    nitrogen = node.getResponseBuffer(4);

    // Phosphorus (mg/kg, direct value)
    phosphorus = node.getResponseBuffer(5);

    // Potassium (mg/kg, direct value)
    potassium = node.getResponseBuffer(6);

    return true;
  } else {
    // Communication error occurred
    return false;
  }
}

/**
 * Display sensor data on Serial Monitor
 * Formatted for easy reading
 */
void displaySensorData() {
  Serial.println("╔════════════════════════════════════╗");
  Serial.println("║     SOIL SENSOR READINGS          ║");
  Serial.println("╠════════════════════════════════════╣");

  // Soil moisture
  Serial.print("║ Moisture:     ");
  Serial.print(soilMoisture, 1);
  Serial.println(" %           ║");

  // Soil temperature
  Serial.print("║ Temperature:  ");
  Serial.print(soilTemperature, 1);
  Serial.println(" °C         ║");

  // Electrical conductivity
  Serial.print("║ EC:           ");
  Serial.print(soilConductivity);
  Serial.println(" μS/cm       ║");

  // pH level
  Serial.print("║ pH:           ");
  Serial.print(soilPH, 1);
  Serial.println("              ║");

  Serial.println("╠════════════════════════════════════╣");
  Serial.println("║     NPK CONTENT (mg/kg)           ║");
  Serial.println("╠════════════════════════════════════╣");

  // Nitrogen
  Serial.print("║ Nitrogen (N): ");
  Serial.print(nitrogen);
  Serial.println(" mg/kg        ║");

  // Phosphorus
  Serial.print("║ Phosphorus(P):");
  Serial.print(phosphorus);
  Serial.println(" mg/kg        ║");

  // Potassium
  Serial.print("║ Potassium (K):");
  Serial.print(potassium);
  Serial.println(" mg/kg        ║");

  Serial.println("╚════════════════════════════════════╝");
  Serial.println();
}

Testing and Calibration

Initial Testing

1. Upload the code to Arduino UNO
2. Open Serial Monitor (Tools → Serial Monitor)
3. Set baud rate to 9600
4. Insert sensor probe into soil
5. Observe readings every 5 seconds

Expected Output

=== 5-in-1 NPK Soil Sensor ===
Initializing...
Initialization complete!
Starting measurements...

╔════════════════════════════════════╗
║     SOIL SENSOR READINGS          ║
╠════════════════════════════════════╣
║ Moisture:     46.4 %           ║
║ Temperature:  33.2 °C         ║
║ EC:           44 μS/cm       ║
║ pH:           5.6              ║
╠════════════════════════════════════╣
║     NPK CONTENT (mg/kg)           ║
╠════════════════════════════════════╣
║ Nitrogen (N): 32 mg/kg        ║
║ Phosphorus(P):88 mg/kg        ║
║ Potassium (K):104 mg/kg        ║
╚════════════════════════════════════╝

NPK Calibration Note

According to the manual, the NPK measurements use a rapid detection method with inherent limitations. For critical applications:

1. Measure soil samples with a laboratory-grade analyzer
2. Use the write function to calibrate NPK values
3. The sensor supports writing NPK data to registers 0x0004, 0x0005, and 0x0006

Advanced Features

Changing Sensor Address

To use multiple sensors on the same bus:

// Add this function to change sensor address
void changeSensorAddress(uint8_t newAddress) {
  node.writeSingleRegister(0x07D0, newAddress);
  delay(100);
  Serial.print("Sensor address changed to: ");
  Serial.println(newAddress);
}

Changing Baud Rate

To change communication speed:

// Baud rate codes: 0=2400, 1=4800, 2=9600
void changeBaudRate(uint8_t rateCode) {
  node.writeSingleRegister(0x07D1, rateCode);
  delay(100);
  Serial.println("Baud rate changed");
}

Writing NPK Values (Calibration)

To write calibrated NPK values:

// Write nitrogen value (mg/kg)
void writeNitrogen(uint16_t value) {
  node.writeSingleRegister(REG_NITROGEN, value);
}

// Write phosphorus value (mg/kg)
void writePhosphorus(uint16_t value) {
  node.writeSingleRegister(REG_PHOSPHORUS, value);
}

// Write potassium value (mg/kg)
void writePotassium(uint16_t value) {
  node.writeSingleRegister(REG_POTASSIUM, value);
}

Practical Applications

Smart Irrigation System

Use soil moisture readings to trigger irrigation:

if (soilMoisture < 30.0) {
  // Activate irrigation pump
  digitalWrite(PUMP_PIN, HIGH);
} else {
  digitalWrite(PUMP_PIN, LOW);
}

This tutorial has demonstrated how to successfully interface the 5-in-1 NPK Soil Sensor with an Arduino UNO using RS485/Modbus communication. The sensor provides comprehensive soil monitoring capabilities essential for precision agriculture and smart farming applications. With this knowledge, you can now build sophisticated soil monitoring systems for agriculture, research, or hobby gardening projects. The combination of multiple parameters provides valuable insights into soil health and helps optimize growing conditions for better crop yields.
