Specifications:

Technical Specifications

• Product Category: Latches
• Number of Circuits: 8 Circuit
• Logic Type: True
• Logic Family: 74HC
• Polarity: Non-Inverting
• Quiescent Current: 8 uA
• Number of Output Lines: 1 Line
• High Level Output Current: - 7.8 mA
• Low Level Output Current: 32 mA
• Propagation Delay Time: 200 ns at 2 V, 40 ns at 4.5 V, 34 ns at 6 V
• Supply Voltage - Max: 6 V
• Supply Voltage - Min: 2 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C

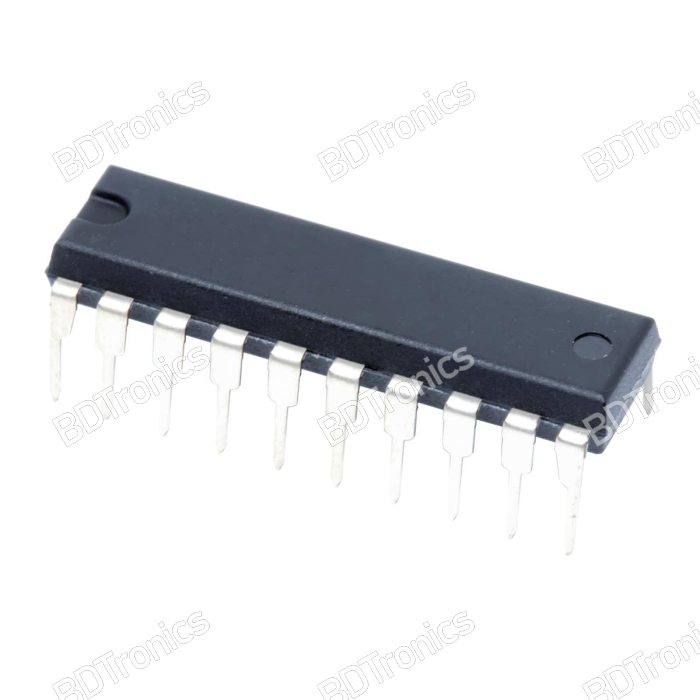

• Package / Case: PDIP-20
• Packaging: Tube
• Function: Octal D-Type Transparent Latch with 3-State Outputs
• Height: 4.57 mm
• Length: 24.33 mm
• Mounting Style: Through Hole
• Number of Channels: 8 Channels
• Number of Input Lines: 3 Line
• Operating Supply Voltage: 2 V to 6 V
• Output Type: 3-State
• Product Type: Latches
• Reset Type: No Reset
• Subcategory: Logic ICs
• Type: D-Type
• Width: 6.35 mm
• Unit Weight: 0.042329 oz
