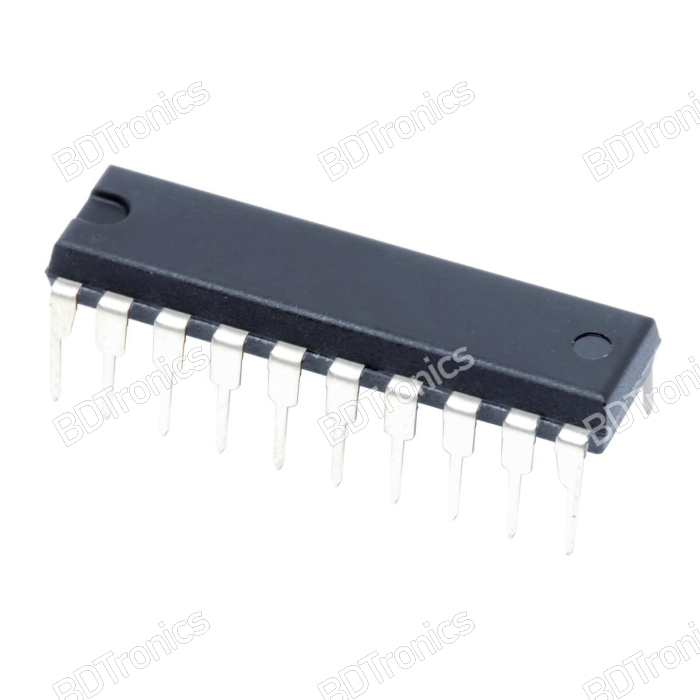

SN74HC541N Buffers & Line Drivers Tri-State Octal C PDIP 20

SN74HC541N Buffers & Line Drivers Tri-State Octal C

In stock

SKU PRD-00002486
Category: ICs
Delivery Info
truck-fast
Inside Dhaka: 1-2 days
Express (Dhaka): 24 hours
Order before 12.00PM
Outside Dhaka: 2-3 days
hand-holding-dollar
Cash on delivery all over BD
Quality
award
100% authentic product
circle-check
Quality product guaranteed
Service
repeat
7 days easy return
credit-card
Safe & secure payment
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

Product Details

Specifications:

      Technical Specifications

    • Product Category: Buffers & Line Drivers
    • Number of Input Lines: 8 Input
    • Number of Output Lines: 8 Output
    • Polarity: Non-Inverting
    • High Level Output Current: - 7.8 mA
    • Low Level Output Current: 7.8 mA
    • Quiescent Current: 8 uA
    • Supply Voltage - Max: 6 V
    • Supply Voltage - Min: 2 V
    • Operating Supply Current: 80 uA
    • Minimum Operating Temperature: - 40 C
    • Maximum Operating Temperature: + 85 C
    • Mounting Style: Through Hole
    • Package / Case: PDIP-20
    • Packaging: Tube
    • Function: Buffer/Line Driver
    • Height: 4.57 mm
    • Input Signal Type: Single-Ended
    • Length: 24.33 mm
    • Logic Family: HC
    • Logic Type: CMOS
    • Number of Channels: 8
    • Operating Supply Voltage: 5 V
    • Operating Temperature Range: - 40 C to + 85 C
    • Output Type: 3-State
    • Product Type: Buffers & Line Drivers
    • Propagation Delay Time: 165 ns at 2 V, 33 ns at 4.5 V, 28 ns at 6 V
    • Subcategory: Logic ICs
    • Supply Current - Max: 8 uA
    • Technology: CMOS
    • Width: 6.35 mm
    • Unit Weight: 0.042297 oz
