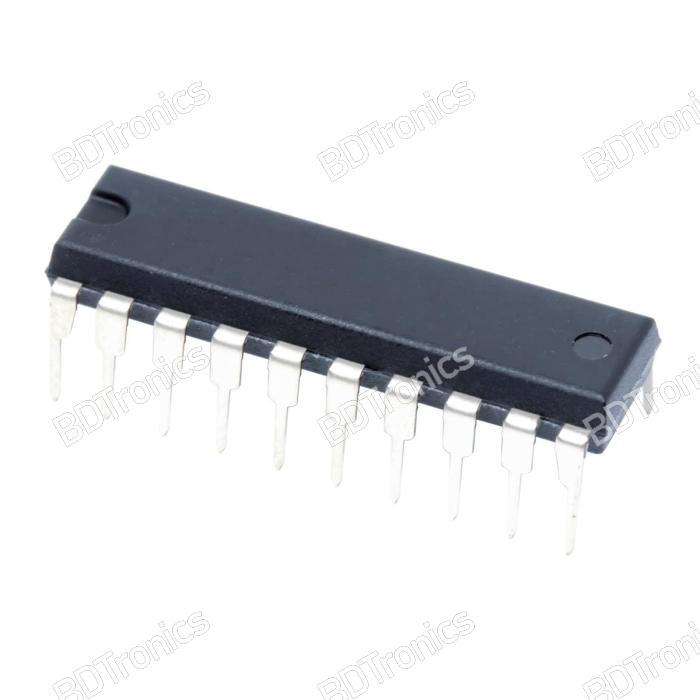

SN74HC273N Flip Flops Octal PDIP 20

Specifications:

Technical Specifications

• Product Category: Flip Flops
• Number of Circuits: 8
• Logic Family: HC
• Logic Type: D-Type Flip-Flop
• Polarity: Non-Inverting
• Input Type: CMOS
• Output Type: CMOS
• Propagation Delay Time: 160 ns
• High Level Output Current: - 5.2 mA
• Low Level Output Current: 5.2 mA
• Supply Voltage - Min: 2 V
• Supply Voltage - Max: 6 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Mounting Style: Through Hole
• Package / Case: PDIP-20
• Packaging: Tube
• Function: Octal
• Height: 4.57 mm
• Length: 24.33 mm
• Number of Channels: 8
• Number of Input Lines: 2
• Number of Output Lines: 1
• Operating Supply Voltage: 6 V
• Operating Temperature Range: - 40 C to + 85 C
• Product Type: Flip Flops
• Quiescent Current: 8 uA
• Reset Type: Master Reset
• Subcategory: Logic ICs
• Width: 6.35 mm
• Unit Weight: 0.042329 oz
