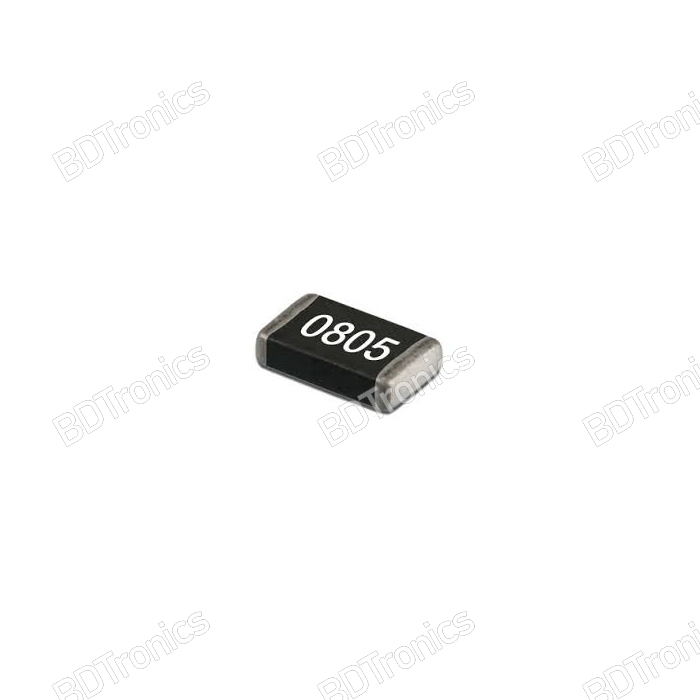

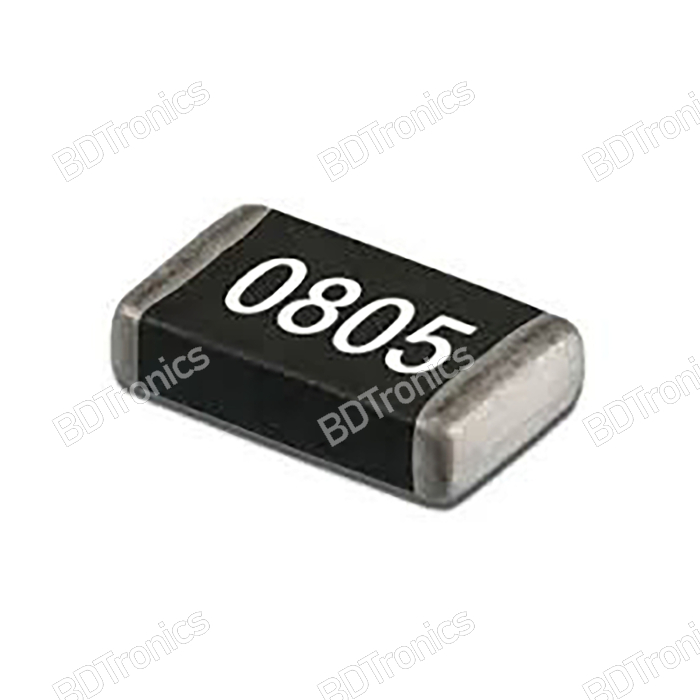

The SMD 0805 resistor is a compact, high-quality, and reliable surface mount resistor designed for electronic circuits that require precise resistance values in a small footprint. It is widely used in consumer electronics, LED drivers, power supplies, microcontroller circuits, and professional PCB assemblies. Offering excellent thermal stability, low tolerance, and long-term durability, the SMD 0805 resistor ensures accurate current control, signal conditioning, and voltage division in both industrial and DIY electronics projects. With resistance values ranging from 0.5Ω to 10MΩ, it is suitable for a wide variety of applications where performance and reliability are critical.

Features:

• Compact SMD 0805 package ideal for high-density PCB applications
• Available resistance values: 0.5Ω to 10MΩ, covering a full range of low to high resistance needs
• High precision with ±1% and ±5% tolerance options
• Stable performance across a wide temperature and voltage range
• Durable construction for long-term electronic applications
• Low-profile design, easy to solder in both manual and automated assembly
• RoHS compliant and lead-free for eco-friendly electronics
• Widely used in industrial, commercial, and DIY electronics projects

Specifications:

• Package Size: 0805 (2.0mm × 1.25mm)
• Resistance Values: 0.5Ω, 1Ω, 2.2Ω, 4.7Ω, 10Ω, 22Ω, 33Ω, 47Ω, 56Ω, 68Ω, 82Ω, 100Ω, 120Ω, 150Ω, 180Ω, 220Ω, 330Ω, 470Ω, 680Ω, 820Ω, 1kΩ, 1.2kΩ, 1.5kΩ, 1.8kΩ, 2.2kΩ, 2.7kΩ, 3.3kΩ, 3.9kΩ, 4.7kΩ, 5.6kΩ, 6.8kΩ, 8.2kΩ, 10kΩ, 12kΩ, 15kΩ, 18kΩ, 22kΩ, 27kΩ, 33kΩ, 39kΩ, 47kΩ, 56kΩ, 68kΩ, 82kΩ, 100kΩ, 120kΩ, 150kΩ, 180kΩ, 220kΩ, 330kΩ, 470kΩ, 680kΩ, 820kΩ, 1MΩ, 2.2MΩ, 4.7MΩ, 10MΩ
• Tolerance: ±1%, ±5%
• Power Rating: 0.125W (1/8W) typical, up to 0.25W in certain models
• Maximum Operating Voltage: 150V
• Maximum Overload Voltage: 300V
• Temperature Coefficient: ±100ppm/°C typical
• Operating Temperature Range: -55°C to +155°C
• Material: Metal film or thick film resistive element
• Mounting Type: Surface Mount Device (SMD)
• Compliance: RoHS, Lead-Free
• Applications: PCB assembly, consumer electronics, LED circuits, power supplies, signal conditioning, current limiting, microcontroller circuits, voltage dividers
