Servo shield 16 Channel 12-bit I2C PCA9685 for Arduino

You want to make a cool robot, maybe a hexapod walker, or maybe just a piece of art with a lot of moving parts. Or maybe you want to drive a lot of LEDs with precise PWM output. Then you realize that your micro-controller has a limited number of PWM outputs! What now? Using only two pins, control 16 free-running PWM outputs! You can even chain up 62 breakouts to control up to 992 PWM outputs with this shield.

In stock

SKU PRD-00000025
Categories: PrototypingShields
Delivery Info
truck-fast
Inside Dhaka: 1-2 days
Express (Dhaka): 24 hours
Order before 12.00PM
Outside Dhaka: 2-3 days
hand-holding-dollar
Cash on delivery all over BD
Quality
award
100% authentic product
circle-check
Quality product guaranteed
Service
repeat
7 days easy return
credit-card
Safe & secure payment
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account

Product Details

It's an i2c-controlled PWM driver with a built in clock. That means that, unlike the TLC5940 family, you do not need to continuously send it signal tying up your microcontroller, its completely free running!

It is 5V compliant, which means you can control it from a 3.3V microcontroller and still safely drive up to 6V outputs (this is good for when you want to control white or blue LEDs with 3.4+ forward voltages). 6 address select pins so you can wire up to 62 of these on a single i2c bus, a total of 992 outputs - that's a lot of servos or LEDs djustable frequency PWM up to about 1.6 KHz.

Features:

  • 12-bit resolution for each output - for servos, that means about 4us resolution at 60Hz update rate
  • Configurable push-pull or open-drain output
  • Output enable pin to quickly disable all the outputs
  • We wrapped up this lovely chip into a breakout board with a couple nice extras
  • Terminal block for power input (or you can use the 0.1" breakouts on the side)
  • Reverse polarity protection on the terminal block input
  • Green power-good LED
  • 3 pin connectors in groups of 4 so you can plug in 16 servos at once (Servo plugs are slightly wider than 0.1" so you can only stack 4 next to each other on 0.1" header "Chain-able" design
  • A spot to place a big capacitor on the V+ line (in case you need it)
  • 330 ohm series resistors on all the output lines to protect them, and to make driving LEDs trivial
  • Solder jumpers for the 6 address select pins
arrow-down
Show More

You might also be interested in...

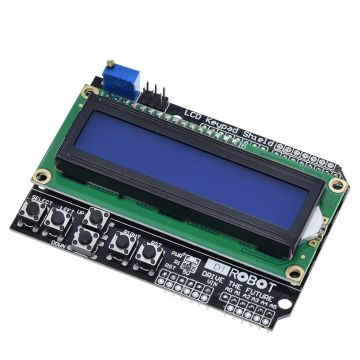

LCD1602 Keypad Shield Module Display For Arduino UNO
BDT 550.00

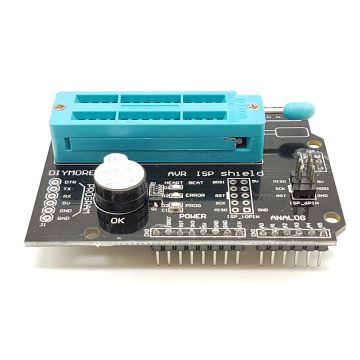

AVR ISP Programmable Expansion Shield Board Module
BDT 543.00

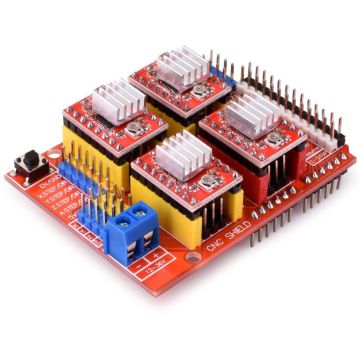

Arduino CNC Shield GRBL Controller V3 Expansion Board with 4pcs A4988 Driver
BDT 838.00

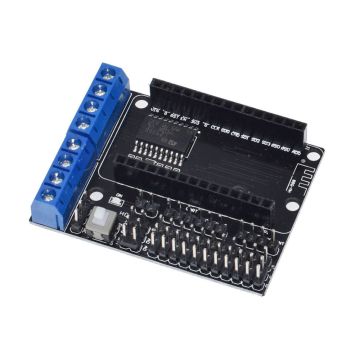

NodeMCU Motor Shield Board L293D for ESP8266
Special Price BDT 179.00 Regular Price BDT 202.00

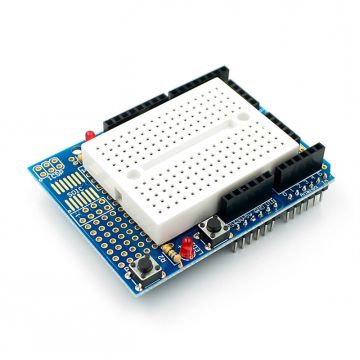

Prototype Shield for Arduino UNO R3 Mini Breadboard
Special Price BDT 290.00 Regular Price BDT 336.00

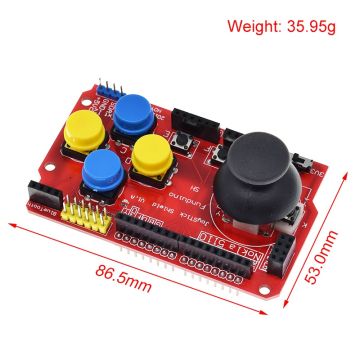

Joystick Shield for Arduino Expansion Board Analog Keyboard and Mouse Function
BDT 243.00

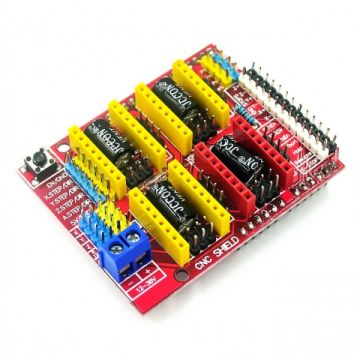

Arduino CNC Shield V3 Expansion Board GRBL Controller
