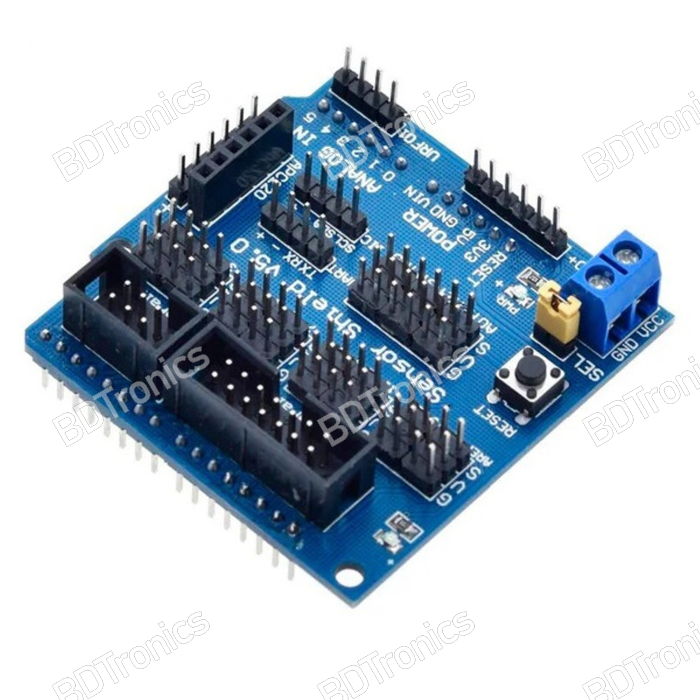

The Arduino Sensor Shield V5.0 is a highly versatile expansion module designed to simplify sensor interfacing, servo motor control, and external module connectivity for Arduino Uno, Mega 2560, and compatible boards. Engineered to bring all I/O pins into easy-to-use 3-pin headers with dedicated power and ground lines, this shield is ideal for robotics, automation, IoT projects, and complex sensor-based systems widely used in Bangladesh.

It provides clean power distribution, multiple communication ports, auxiliary power input, and dedicated connectors for servo control, I2C, UART, SPI, and more, making it an essential shield for rapid prototyping and advanced electronic designs.

Features:

• Compatible with Arduino Uno, Mega 2560, and similar form-factor boards

• All standard I/O pins (D0–D13, A0–A5) are brought out to 3-pin GND/VCC/Signal headers

• Dedicated power pin per I/O for easy connection of sensors and modules

• Separate auxiliary power input for powering servo motors and high-current devices

• SEL jumper for selecting internal 5V or external power for D0–D13 pins

• Onboard screw terminal for external power supply (5V–6V typical for servos)

• Remote reset button for quick system reboot

• Pin 13 onboard LED extended to shield for visibility

• Multiple communication interfaces: I2C, UART, SPI, SD card interface

• Clean 5V power routing for analog sensors

• Ideal for robotics, sensor arrays, and multi-module systems

Specifications:

• Power Input Options:

  • Arduino 5V (default via SEL jumper)

  • External power via 2-pos screw terminal (5V–6V typical for servos)

• I/O Pins:

  • Digital I/O: D0–D13

  • Analog I/O: A0–A5

• Communication Ports:

  • I2C (SDA/SCL)

  • SPI (D10–D13)

  • UART (D0–D1)

• Power Routing:

  • Analog VCC fixed to Arduino 5V

  • Digital VCC selectable via SEL jumper

• Headers:

  • 3×16 header for digital pins

  • 3×6 header for analog pins

• Additional Features:

  • SD card header (SPI-based)

  • Dedicated GND/VCC pins

  • Supports servos, sensors, wireless modules, displays

• Build: Compact, stackable, plug-and-play shield design

Pinout & Header Description:

Digital I/O Headers (D0–D13)

• G = Ground

• V = VCC (Based on SEL jumper selection)

• Signal pins D0–D13

• Includes AREF pin for analog reference voltage

Analog I/O Headers (A0–A5)

• G = Ground

• V = 5V (fixed clean analog voltage)

• Signal pins A0–A5

• Supports use as digital pins if required

Auxiliary Power Screw Terminal

• GND = Ground for external supply

• VCC = External positive supply (5–6V typical for servos)

• Used when SEL jumper is removed

• Prevents power backflow into Arduino 5V line

SD Card / SPI Interface (D10–D13)

• D10 = Chip Select for SD

• D11 = MOSI

• D12 = MISO

• D13 = SCK

• Includes 5V and GND

How to Use:

• Stack the Sensor Shield V5.0 on top of an Arduino Uno or Mega

• Insert sensors, servos, displays, or modules directly into 3-pin headers

• Use SEL jumper to choose:

  • Arduino 5V for simple sensors

  • External supply for power-hungry servos

• When driving servos, supply external 5–6V to the screw terminal

• Do not use external power with SEL jumper installed to avoid damage

• Connect SPI modules through D10–D13 pins on SD header

• Use I2C ports for modules like OLED displays, RTC, BMP sensors

• Use UART header for serial communication modules (GPS, GSM, Bluetooth)

Application Instructions:

• Ideal for robotics, automation systems, and multi-sensor IoT solutions

• Perfect for smart home projects requiring multiple sensors and modules

• Suitable for servo-based robotic arms, wheeled robots, and RC systems

• Simplifies wiring for students, hobbyists, and professionals

• Good for rapid prototyping with clean and organized pinouts

• Ensures stable power distribution for noise-sensitive analog sensors
