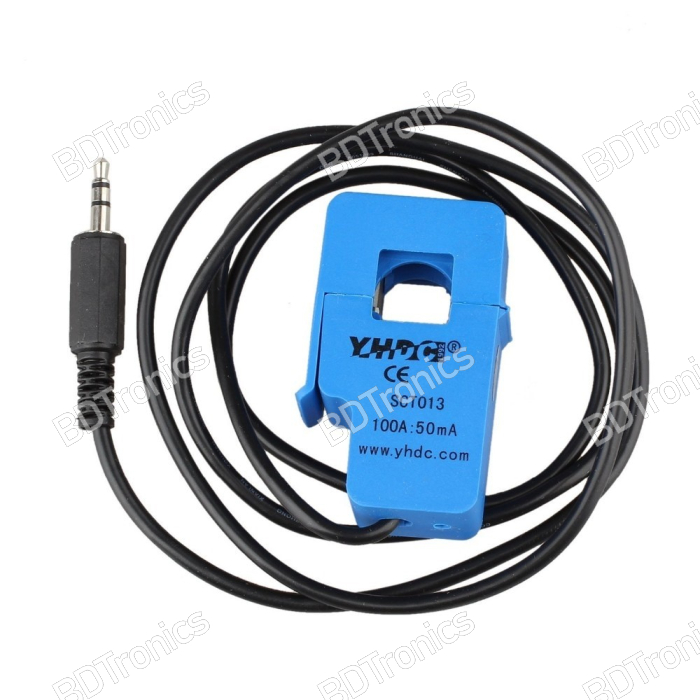

The SCT-013-000 100A Non-invasive AC Current Sensor is a high-precision split-core current transformer designed for safe, non-intrusive current monitoring. Ideal for lighting equipment, AC motors, air compressors, and other electrical devices, this 100A current sensor enables accurate current measurement and protection without the need to disconnect wires. The sensor features a robust ferrite core and meets UL94-V0 flame retardant standards, ensuring safety and durability in industrial and home automation applications.

This non-invasive AC current sensor module supports both current and voltage output (with built-in sampling resistor for voltage output), allowing seamless integration with energy monitoring systems like Open Energy Monitor. Its compact split-core design allows easy installation around existing cables without interrupting power flow, making it perfect for retrofitting and real-time monitoring projects.

Features:

• Non-invasive split-core design for safe and easy installation

• Supports both current output and voltage output with built-in sampling resistor

• Accurate measurement with non-linearity ±3% (10%-120% rated input current)

• Robust ferrite core for reliable long-term performance

• UL94-V0 flame retardant materials for enhanced safety

• Suitable for lighting, AC motors, air compressors, and energy monitoring

• Compact opening size of 13x13 mm (0.51x0.51 inch) for easy cable placement

• Mechanical durability: opening/closing cycles ≥ 1000 times at 20°

• Wide operating temperature range: -25°C to 70°C

Specifications:

• Model: SCT-013-000

• Input Current: 0A-100A

• Core Material: Ferrite

• Output Form: Current or Voltage (with built-in sampling resistor)

• Non-linearity: ±3% (10%-120% rated input)

• Dielectric Strength: 6000V AC / 1 min

• Anti-flaming rate: UL94-V0

• Opening Size: 13x13 mm (0.51x0.51 inch)

• Mechanical Strength: ≥1000 opening/closing cycles at 20°

• Working Temperature: -25°C to 70°C
