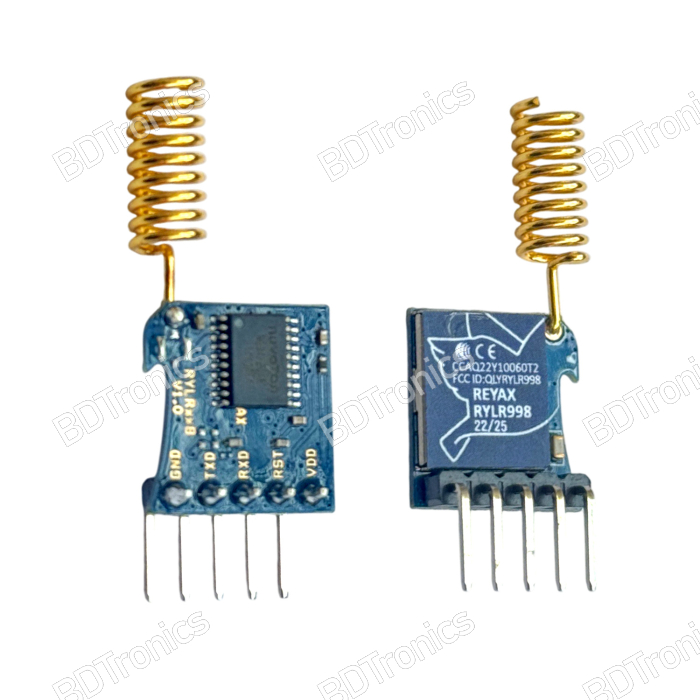

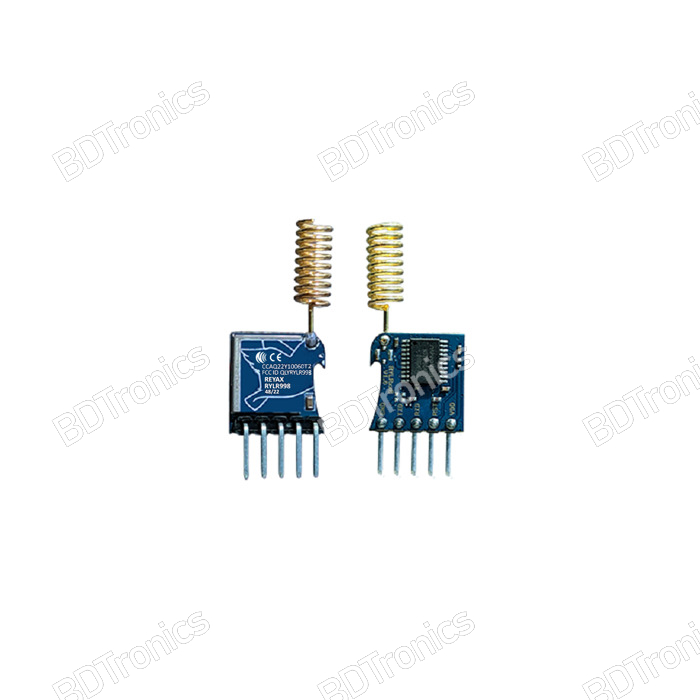

The RYLR998 is a long-range, low-power wireless transceiver module based on the Semtech SX1278 chip. It operates in the 868 MHz or 915 MHz ISM band, making it suitable for various IoT applications. The module communicates with microcontrollers via a UART interface, sending and receiving data packets over long distances.

Components You'll Need:

• 2 units x RYLR998 LoRa module: The main communication module.

• Arduino (e.g., Uno, Nano, or Pro Mini): The microcontroller to interface with the LoRa module.

• Jumper wires: For making connections.

• Breadboard: To prototype the circuit.

• Pushbutton and LED: For basic input/output testing.

• 3.3V power supply: The RYLR998 operates at 3.3V; do not connect it directly to a 5V Arduino without a level shifter.

Wiring the RYLR998 to Arduino:

Proper wiring is crucial for successful communication:

• VCC: Connect to 3.3V on the Arduino.

• GND: Connect to ground (GND).

• TXD: Connect to the Arduino's RX pin (e.g., pin 10).

• RXD: Connect to the Arduino's TX pin (e.g., pin 11).

• ANT: Attach a suitable antenna for optimal signal transmission.

Ensure that the Arduino's TX and RX pins are connected to the LoRa module's RX and TX pins, respectively. This setup allows the Arduino to communicate with the module.

Configuring the RYLR998 with AT Commands:

Before using the RYLR998, configure it using AT commands:

1. Connect the module to your computer using a USB-to-serial adapter.

2. Open the Arduino IDE and select the appropriate COM port.

3. Open the Serial Monitor and set the baud rate to 9600.

4. Enter AT commands to configure the module:

   • AT: Check communication; should return +OK.

   • AT+ADDRESS=1: Set the device address.

   • AT+NETWORKID=5: Set the network ID.

   • AT+BAND=915000000: Set the frequency to 915 MHz.

   • AT+SEND=1,5,HELLO: Send a message to address 1.

These commands set up the module's basic parameters.

Transmitter Code:

The transmitter reads a pushbutton's state and sends it to the receiver:

int PushButton = 7;
int LED = 5;
int LED_state = LOW;
int Button_state = LOW;
int Button_newstate;

void setup() {
  Serial.begin(57600);
  pinMode(PushButton, INPUT);
  pinMode(LED, OUTPUT);
  Button_state = digitalRead(PushButton);
}

void loop() {
  Button_newstate = digitalRead(PushButton);
  if (Button_newstate > Button_state) {
    if (LED_state == LOW) {
      digitalWrite(LED, HIGH);
      LED_state = HIGH;
      Serial.println("AT+SEND=2,1,H");
    } else {
      digitalWrite(LED, LOW);
      LED_state = LOW;
      Serial.println("AT+SEND=2,1,L");
    }
  }
  Button_state = Button_newstate;
}

Receiver Code:

The receiver listens for messages and controls an LED accordingly:

int LED = 5;

void setup() {
  Serial.begin(57600);
  pinMode(LED, OUTPUT);
}

void loop() {
  if (Serial.available()) {
    String message = Serial.readString();
    if (message.indexOf("H") >= 0) {
      digitalWrite(LED, HIGH);
    } else if (message.indexOf("L") >= 0) {
      digitalWrite(LED, LOW);
    }
  }
}

Testing the Communication:

After uploading the respective codes to the transmitter and receiver:

1. Power both Arduino boards.

2. Press the pushbutton on the transmitter.

3. Observe the LED on the receiver; it should turn on or off based on the button's state.

This simple test confirms that the LoRa communication is functioning correctly.

Troubleshooting Tips:

• Check wiring: Ensure all connections are secure and correct.

• Verify baud rates: Both the Arduino and the RYLR998 should communicate at the same baud rate.

• Use level shifters: If using a 5V Arduino, employ level shifters between the Arduino and the LoRa module.

• Test with different distances: LoRa modules can communicate over several kilometers; test in various environments.

Expanding the Project:

Once you've successfully set up basic communication, consider expanding your project:

• Add OLED display: Display received messages or sensor data.

• Implement error handling: Ensure reliable communication with retries and acknowledgments.

• Use multiple modules: Set up a network of LoRa nodes for more complex applications.
