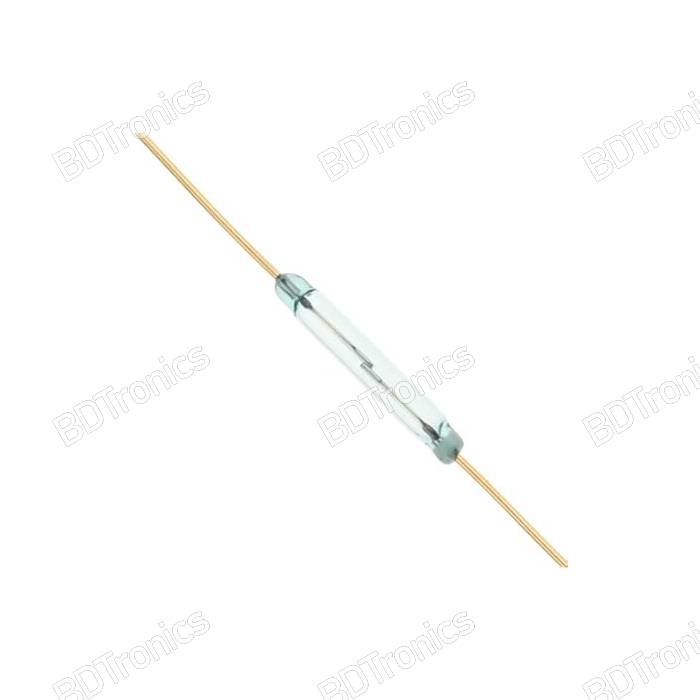

The 2×14mm Reed Switch is a compact, hermetically sealed magnetic switch that operates as a Normally Open (NO) contact. When exposed to a magnetic field, the internal ferromagnetic reeds close, allowing current to pass. Once the magnetic field is removed, the contacts return to their open state.

Ideal for use in security systems, door/window sensors, magnetic proximity detection, and automation applications, this reed switch provides reliable performance with no physical contact or mechanical wear, making it highly durable and long-lasting.

Features:

• Compact size: 2 mm diameter, 14 mm length

• Normally Open (NO) contact type

• Operates via an external magnetic field

• Hermetically sealed in a glass envelope for environmental protection

• Low power consumption and high reliability

• No mechanical contact required for activation

Specifications:

• Contact Type: Normally Open (NO)

• Glass Tube Dimensions: 2 mm (diameter) × 14 mm (length)

• Contact Rating: Typically 10–20W (check datasheet for exact rating)

• Switching Voltage (Max): ~100–200V DC/AC (varies by model)

• Switching Current (Max): ~0.5–1A

• Contact Resistance: <150 mΩ

• Insulation Resistance: >10⁹ Ω

• Operating Time: <1.0 ms

• Release Time: <0.5 ms

• Operating Temperature Range: -40°C to +125°C

Applications:

• Door/window magnetic sensors

• Position and proximity sensing

• Flow meters and counters

• Consumer electronics

• Industrial automation systems

• Robotics and smart devices

Package Includes:

• 1 × Reed Switch 2×14mm (Normally Open)
