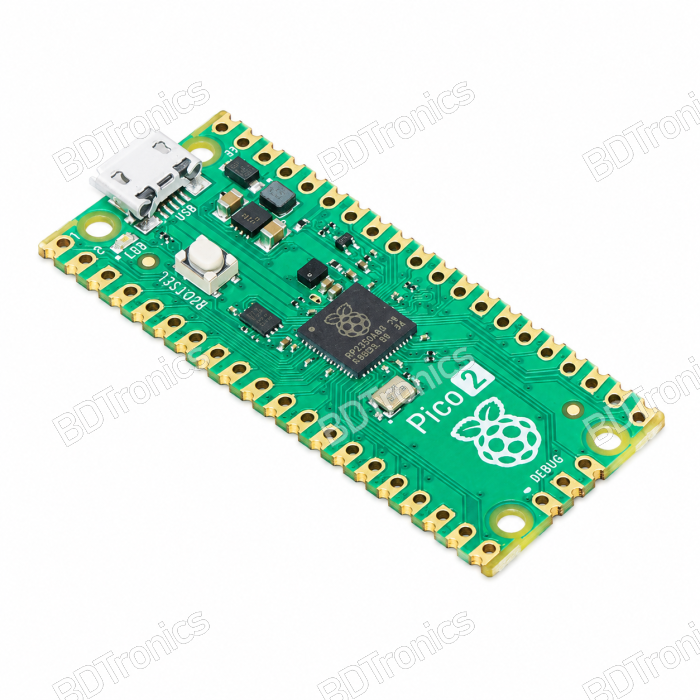

The Raspberry Pi Pico 2 is a powerful and compact microcontroller development board based on the Raspberry Pi RP2350 chip. It features a flexible dual-core architecture with either dual Arm Cortex-M33 or dual Hazard3 RISC-V processors, operating at up to 150MHz. With 520KB on-chip SRAM, USB connectivity, programmable I/O, multiple communication interfaces, ADC, PWM, and advanced hardware security features, Pico 2 is designed for embedded systems, robotics, automation, IoT, electronics prototyping, and professional product development.

Pico 2 maintains compatibility with the original Raspberry Pi Pico, making it an excellent choice for upgrading existing Pico-based projects while providing significantly improved processing capability and enhanced security. Its castellated module design allows the board to be soldered directly onto custom carrier PCBs, making it suitable for compact production designs as well as development and educational projects.

Programming is supported through the open-source Raspberry Pi C/C++ SDK and MicroPython, while USB drag-and-drop mass-storage programming makes firmware installation simple. The board includes 2 UART, 2 SPI, 2 I2C, 16 PWM channels, 3 ADC channels, 12 PIO state machines, and a USB 1.1 controller with host and device support.

BDTronics supplies Raspberry Pi Pico 2 development boards and embedded electronics components for engineers, makers, students, robotics developers, and electronics enthusiasts in Bangladesh.

Features:

• Original Raspberry Pi Pico 2 development board

• Based on Raspberry Pi RP2350 microcontroller

• Dual-core Arm Cortex-M33 architecture

• Dual-core Hazard3 RISC-V architecture

• Processor speed up to 150MHz

• 520KB on-chip SRAM

• Software and hardware compatible with Raspberry Pi Pico 1

• Drag-and-drop programming through USB mass storage

• USB 1.1 host and device support

• 12 programmable PIO state machines

• 16 PWM channels

• 3 ADC channels

• 2 × UART controllers

• 2 × SPI controllers

• 2 × I2C controllers

• Castellated edges for direct PCB soldering

• Supports MicroPython

• Supports C/C++ SDK

• Advanced hardware and software security features

• ARM TrustZone support for Cortex-M

• Optional secure boot signing

• OTP key fingerprint storage

• Protected OTP storage

• Security-domain assignment for peripherals, GPIO and DMA

• Hardware fault-injection attack mitigation

• Hardware SHA-256 accelerator

• Wide input voltage range

• Wide operating temperature range

• Suitable for prototyping and production designs

Specifications:

• Product: Raspberry Pi Pico 2

• Microcontroller: Raspberry Pi RP2350

• CPU Architecture: Dual Arm Cortex-M33 or Dual Hazard3 RISC-V

• Maximum Frequency: 150MHz

• On-Chip SRAM: 520KB

• Wireless: Not included on standard Pico 2

• Bluetooth: Not included on standard Pico 2

• Wireless Version: Pico 2 W adds 2.4GHz 802.11n Wi-Fi and Bluetooth 5.2

• UART: 2

• SPI: 2

• I2C: 2

• PWM: 16 channels

• ADC: 3 channels

• PIO: 12 state machines

• USB: 1 × USB 1.1 controller and PHY

• USB Host: Supported

• USB Device: Supported

• Programming: USB mass-storage drag-and-drop

• Programming Languages: C, C++, MicroPython

• Security: ARM TrustZone, secure boot options, OTP security, SHA-256 accelerator

• Input Voltage: 1.8V–5.5V DC

• Operating Temperature: -20°C to +85°C

• PCB Mounting: Castellated module

• Carrier Board Integration: Supported

Advanced Security Features:

• ARM TrustZone for Cortex-M

• Optional boot signing

• On-chip mask ROM enforcement for secure boot

• Key fingerprint stored in OTP

• Protected OTP storage for boot decryption key

• Global bus filtering based on Arm or RISC-V security and privilege levels

• Individual security-domain assignment for peripherals

• GPIO security-domain assignment

• DMA channel security-domain assignment

• Hardware protection against fault-injection attacks

• Hardware SHA-256 acceleration

Programming Support:

• Raspberry Pi Pico 2 C/C++ SDK

• Raspberry Pi Pico 2 MicroPython SDK

• Open-source C/C++ development environment

• MicroPython development

• USB drag-and-drop firmware installation

• Compatible development tools for RP2350-based projects

How to Use:

• Connect Raspberry Pi Pico 2 to a computer using a USB cable.

• Install the Raspberry Pi Pico 2 C/C++ SDK or MicroPython environment.

• For simple firmware installation, use USB mass-storage drag-and-drop programming.

• Connect sensors and peripherals to the available GPIO pins.

• Use ADC inputs for compatible analog sensors.

• Use PWM outputs for LED brightness, servo control, motor control, and other applications.

• Use UART, SPI, or I2C interfaces to communicate with external modules.

• Use PIO state machines when custom digital communication or timing is required.

• For production projects, the castellated edges can be soldered directly onto a custom carrier PCB.

Applications:

• Embedded systems

• Robotics

• IoT projects

• Smart home devices

• Industrial automation

• Sensor systems

• Data acquisition

• Motor control

• Servo control

• PWM applications

• LED control

• Display interfaces

• USB host projects

• USB device projects

• RISC-V development

• ARM Cortex-M33 development

• MicroPython projects

• C/C++ embedded programming

• Custom PCB development

• Electronics prototyping

• Educational electronics

• Rapid product development

• Commercial embedded products

Package Includes

• 1 × Raspberry Pi Pico 2 Development Board
