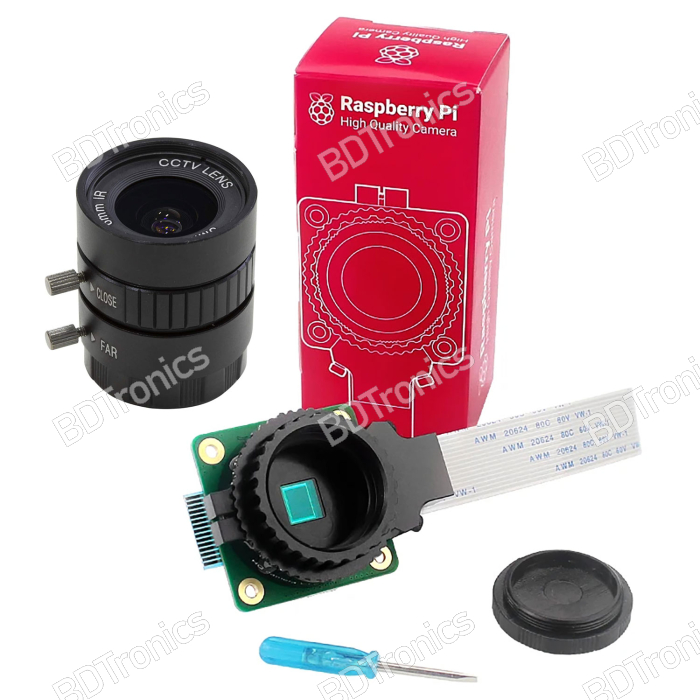

Raspberry Pi HQ Camera 12.3MP IMX477 with CGL 6mm CS Fixed IR 3.0 Megapixel Lens is a professional-grade camera solution designed for high-quality imaging, computer vision, and advanced Raspberry Pi projects. Powered by the Sony IMX477 back-illuminated sensor, this High Quality Camera delivers exceptional image clarity, low-light performance, and flexibility with interchangeable C-mount and CS-mount lenses. Available in Bangladesh from BDTronics, this camera module is ideal for developers, researchers, educators, and professionals working on vision-based applications.

The Raspberry Pi High Quality Camera features a 12.3 megapixel stacked sensor with adjustable back focus, making it suitable for precision imaging, machine vision, robotics, surveillance, and scientific projects. The included CGL 6mm CS-mount fixed IR lens ensures sharp imaging with reliable optical performance. BDTronics supplies this complete HQ camera setup for users in Bangladesh seeking high-resolution and customizable Raspberry Pi camera solutions.

Features:

• Sony IMX477 back-illuminated 12.3MP image sensor

• High-quality imaging with excellent low-light performance

• Supports interchangeable C-mount and CS-mount lenses

• Includes CGL 6mm CS-mount fixed IR 3.0MP lens

• Adjustable back focus for precise lens calibration

• Integrated IR cut filter for accurate color reproduction

• Designed for advanced Raspberry Pi vision applications

• Ideal for machine vision, imaging, and computer vision

• Compact and robust camera board design

• Supplied by BDTronics Bangladesh

Applications:

• Raspberry Pi machine vision projects

• Computer vision and image processing

• Robotics and autonomous systems

• Industrial inspection and monitoring

• Scientific imaging and research

• High-resolution photography and video capture

• Surveillance and security systems

• AI and OpenCV-based projects

How to Use:

• Connect the camera module to Raspberry Pi CSI port using ribbon cable

• Use CS-mount adapter to attach the CGL 6mm lens

• Adjust back focus (12.5 mm–22.4 mm) for sharp image output

• Enable camera interface in Raspberry Pi OS

• Capture images and video using Raspberry Pi camera tools

• Fine-tune focus and exposure settings for best results

• Use compatible cable when connecting to Raspberry Pi Zero models

Specifications:

• Sensor: Sony IMX477R stacked, back-illuminated

• Resolution: 12.3 Megapixel

• Sensor Diagonal: 7.9 mm

• Pixel Size: 1.55 μm × 1.55 μm

• Output Formats: RAW12, RAW10, RAW8, COMP8

• Back Focus: Adjustable 12.5 mm – 22.4 mm

• Lens Standards: C-mount, CS-mount

• Lens Included: CGL 6mm CS Fixed IR 3.0MP Lens

• IR Cut Filter: Integrated

• Ribbon Cable Length: 200 mm

• Tripod Mount: 1/4”-20

• Camera Type: Raspberry Pi High Quality Camera
