Arduino Nano I/O Extension Shield Breakout Board
In stock
Order before 12.00PM

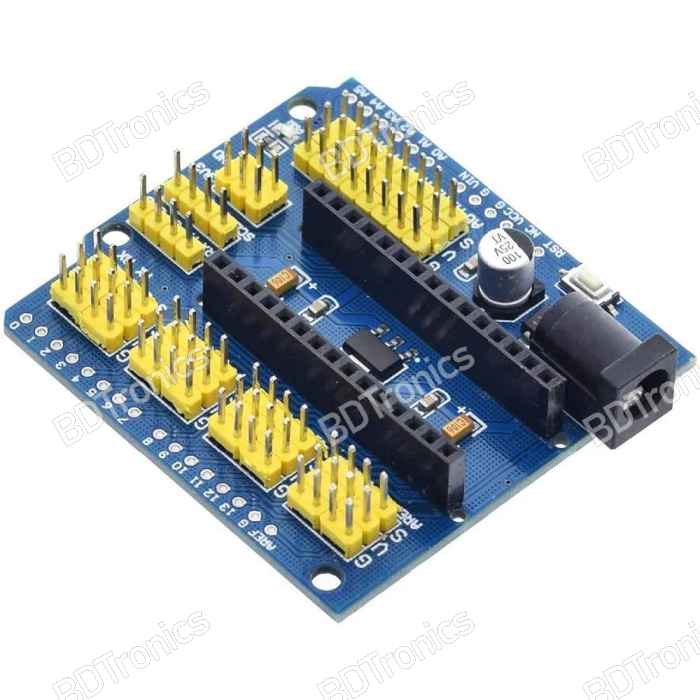

The Arduino Nano I/O Extension Shield is a versatile expansion adapter designed to simplify connectivity and prototyping with the Arduino Nano microcontroller. With a layout matching the Arduino Duemilanove, it allows users to access all Nano I/O pins through clearly labeled, servo-style headers. This board is ideal for use with breadboards and is compatible with both Arduino Nano v2.x and v3.x.
This shield provides convenient 5V and GND access for each pin, making it easy to connect sensors, servos, and modules without additional wiring complexity. It supports both internal and external power sources, offering flexibility for various project requirements.
Features:
-
Compatible with Arduino Nano v2.x and v3.x
-
Full breakout of digital and analog I/O pins
-
Servo-style headers (Signal, 5V, GND) for all I/O connections
-
8 analog input pins with power and ground access
-
6 PWM-capable pins for motor and LED control
-
Dedicated power input for servo motors
-
5-pin I2C interface for sensor or peripheral expansion
-
Includes AREF output and 3.3V regulated output
-
Supports 3.3V to 5V operating voltage
-
Compact form factor for breadboard integration
-
Fully assembled and ready to use
Specifications:
| Parameter | Specification |
|---|---|
| Input Voltage | 3.3V to 5V |
| Analog Input Pins | 8 |
| PWM Output Pins | 6 |
| Digital I/O Pins | 14 (with Signal, 5V, GND) |
| I2C Expansion Pins | 5 |
| AREF Output | 1 |
| 3.3V Output | 1 |
| Servo Power Input | 1 |
Applications:
-
Sensor interfacing
-
Servo motor control
-
Rapid prototyping
-
Educational electronics projects
-
Breadboard-based development
Package Includes:
-
1 × Arduino Nano 328P I/O Expansion Adapter Shield
