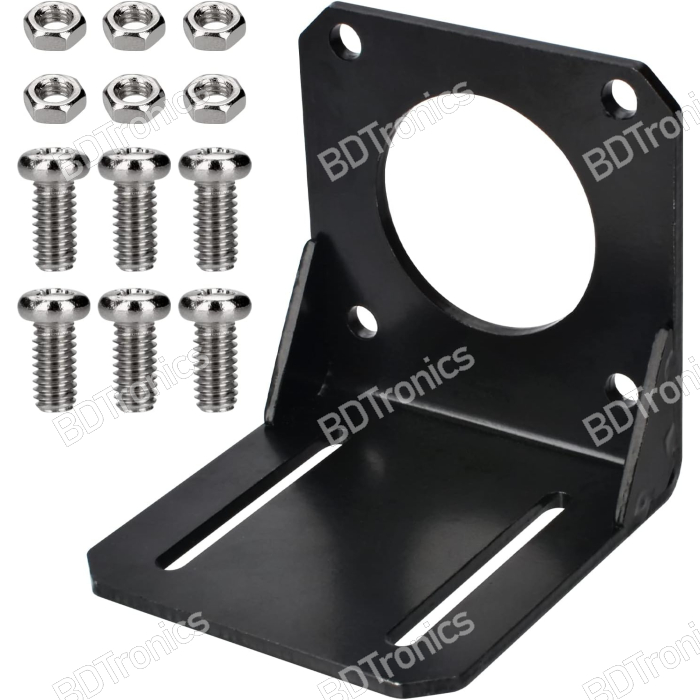

NEMA 23 Stepper Motor Mounting Bracket is a heavy-duty all-metal L-shaped motor holder specifically designed for 57mm NEMA 23 stepper motors. Built from durable steel with a robust 3mm thick construction, this mounting bracket provides secure motor installation, excellent stability, and long-lasting performance for CNC machines, automation systems, robotics, 3D printers, and industrial machinery.

Featuring a precision-engineered 90-degree L-shape design, the bracket offers superior toughness, impact resistance, and vibration reduction. The anti-rust painted finish enhances durability and makes it suitable for long-term operation in demanding environments.

Features:

• Designed specifically for NEMA 23 (57mm) stepper motors

• Heavy-duty all-metal construction

• Strong 3mm thick iron plate design

• Durable anti-rust painted finish

• High-temperature resistant construction

• Excellent abrasion resistance

• Precision 90-degree L-shape bracket

• High mechanical strength and rigidity

• Easy motor installation and alignment

• Pre-drilled mounting holes for convenience

• Reduces motor vibration during operation

• Long service life

• Suitable for industrial and DIY applications

• Includes mounting screws and nuts

• Professional-grade motor mounting solution

Applications:

• CNC machines

• CNC routers

• Laser engraving machines

• 3D printers

• Automation equipment

• Motion control systems

• Robotics projects

• Labeling machines

• Automatic voltage regulators

• Automatic actuators

• Industrial machinery

• Packaging equipment

• Conveyor systems

• DIY CNC projects

• Engineering and manufacturing applications

Advantages:

• Secure and stable motor mounting

• Improves machine rigidity

• Reduces vibration and movement

• Easy installation and maintenance

• Durable corrosion-resistant finish

• Compatible with standard NEMA 23 motors

• Supports precision motion control systems

• Suitable for heavy-duty operation

How to Use:

• Align the NEMA 23 stepper motor with the bracket mounting holes.

• Secure the motor using the supplied screws.

• Mount the bracket to the machine frame or base.

• Tighten all hardware securely.

• Verify motor alignment before operation.

• Connect the motor to the driver and control system.

Product Instructions:

• Confirm compatibility with 57mm NEMA 23 motors before installation.

• Use the supplied hardware for proper mounting.

• Ensure the mounting surface is rigid and stable.

• Periodically inspect screws and fasteners.

• Avoid excessive mechanical impact.

• Store in a dry environment when not installed.

Specifications:

• Product Type: Stepper Motor Mounting Bracket

• Compatibility: NEMA 23 Stepper Motor

• Motor Size Compatibility: 57mm

• Bracket Type: L-Shape Fixed Seat

• Material: Iron / Metal

• Surface Finish: Anti-Rust Paint Coating

• Plate Thickness: 3mm

• Bracket Dimensions: 65mm × 65mm × 69mm

• Design Angle: 90 Degrees

• Temperature Resistance: High Temperature Resistant

• Wear Resistance: Abrasion Resistant

• Mounting Type: Screw Mount

• Application: Stepper Motor Installation and Support

Package Includes:

• 1 x NEMA 23 Stepper Motor Mounting Bracket

• 4 x Long Screws

• 4 x Short Screws

• 4 x Nuts
