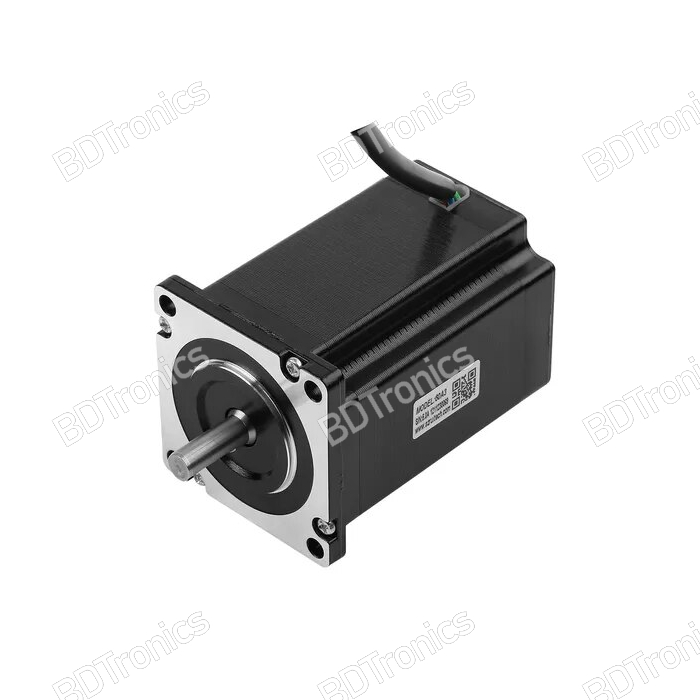

Nema 23 Stepper Motor 23HD86001Y-21B 3A 2.45N.m High Torque for CNC Router Machine
In stock
Order before 12.00PM
The Nema 23 Stepper Motor 23HD86001Y-21B is a high-torque 3A stepper motor designed for precision motion control in CNC routers, 3D printers, laser cutters, and other industrial automation applications. With a holding torque of 2.45 N·m (24.98 kgf·cm), this motor provides exceptional stability and accuracy, making it ideal for heavy-duty operations where precise step control is essential.
Engineered with 1.8° step angle and dual-phase architecture, the Nema 23 23HD86001Y-21B delivers smooth and consistent motion at high speed. It supports operating voltages from 24V to 48V, ensuring flexibility across a wide range of CNC and robotic systems. Built from durable materials with Class B insulation, this motor ensures long life, low vibration, and reliable performance even under continuous operation.
Perfect for OpenBuilds OX CNC machines, this Nema 23 stepper motor is suitable for large-format 3D printers, CNC routers, engraving machines, and automated equipment that require precision positioning and strong holding force.
Features:
-
High torque 2.45 N·m stepper motor for precision CNC applications
-
Compatible with OpenBuilds OX and other CNC router systems
-
1.8° step angle for fine positioning accuracy
-
Smooth operation with low noise and vibration
-
Dual-phase design for improved torque output
-
Durable Class B insulation for long operational life
-
Supports wide input voltage range (24V, 36V, 48V)
-
Ideal for robotics, automation, and motion control projects
Specifications:
-
Model: 23HD86001Y-21B
-
Step Angle: 1.8°
-
Number of Phases: 2
-
Rated Voltage: 3.6V
-
Rated Current: 3A
-
Resistance per Phase: 1.2Ω ±10%
-
Inductance per Phase: 4mH ±20%
-
Holding Torque: 2.45 N·m (24.98 kgf·cm)
-
Detent Torque: 90 mN·m
-
Rotor Inertia: 600 g·cm²
-
Insulation Resistance: 100MΩ min (500V DC)
-
Insulation Class: Class B
-
Mass: 1.2 kg
