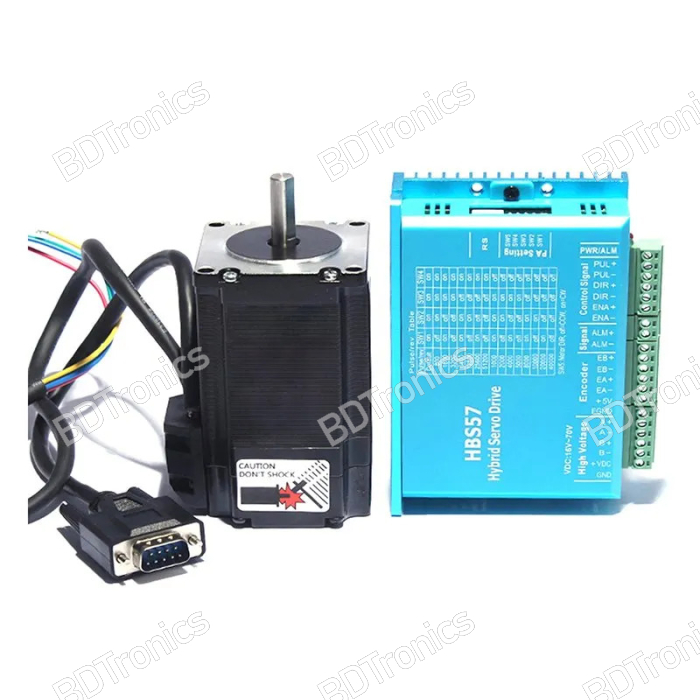

Closed-Loop Stepper Motor 57HSE2.2N combined with the HBS57 Closed-Loop Stepper Motor Driver is a high-performance stepper solution designed for precision CNC machinery, engraving machines, automation systems, and industrial applications. This closed-loop stepper motor system delivers constant torque of 2.2N.m and ensures smooth, accurate motion at high speeds, reducing resonance and improving efficiency compared to traditional open-loop stepper motors.

The 57HSE2.2N features a 2-phase, 4-wire configuration and can reach rated speeds of 1000 rpm with a no-load speed of 2000 rpm. Its robust construction, 8mm shaft, and 99mm body length make it suitable for a wide range of applications including woodworking, welding, screw machines, packaging, and automated assembly equipment.

Paired with the HBS57 Closed-Loop Driver, this stepper motor achieves low heat generation, high torque, and smooth operation thanks to its 32-bit DSP digital control, vector current control algorithm, and PWM current regulation. The driver supports subdivision settings from 800 to 51200, is compatible with 3.3V/5V/24V pulse signals, and operates on a voltage range of DC16-70V (new versions DC24-80V). This combination is ideal for precision CNC, laser engraving, LED equipment, and automated machinery.

Features:

• High Torque Output: 2.2N.m constant torque ensures stable performance in demanding applications.

• Low Heat: Static current nearly zero, reducing heat generation and energy consumption.

• Smooth Motion: Vector space current control and smoothing technology minimize low-frequency resonance.

• High-Speed Performance: Rated speed 1000 rpm, no-load speed up to 2000 rpm.

• Wide Compatibility: Works with 3.3V/5V/24V pulse signals, supports 800–51200 microstepping.

• Versatile Applications: Suitable for CNC machines, engraving, woodworking, packaging, laser machines, welding, screw machines, and automated equipment.

• Robust Construction: 57-stepper motor with 99mm body length and 8mm shaft diameter for industrial durability.

Motor 57HSE2.2N Specifications:

• Motor Model: 57HSE2.2N

• Rated Current: 3.5A

• Output Torque: 2.2 N.m

• Body Length: 99 mm

• Shaft Diameter: 8 mm, single output shaft, no keyway

• Rated Speed: 1000 rpm

• No-Load Speed: 2000 rpm

• Wiring: Two-phase, four-wire (follow motor label)

• Cable Length: 3 meters

Driver HBS57 Specifications:

• Drive Model: HBS57 (Nema 23/57 Stepper Motor Driver)

• Pulse Signal: 3.3V / 5V / 24V compatible

• Voltage Range: DC16-70V (New Version DC24-80V)

• Microstepping: 800–51200 subdivision

• Control: 32-bit DSP, PWM current control, low noise, high torque

• Applications: CNC, engraving machines, laser equipment, LED devices, automated assembly
