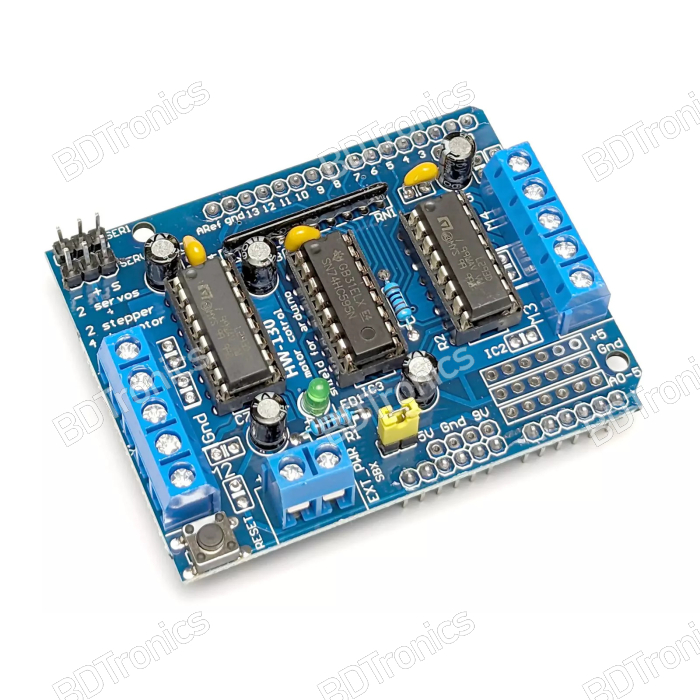

The L293D Motor Shield for Arduino is a versatile and efficient motor driver board designed for robotics, automation, and DIY electronics projects in Bangladesh. This shield is equipped with two L293D dual H-bridge motor driver ICs and one 74HC595 shift register, enabling it to control up to 4 DC motors, 2 stepper motors, or 2 servo motors simultaneously. It is widely used in robotics, 3D printers, CNC machines, smart cars, and various automation projects where precise motor control is required.

This shield allows bidirectional control of DC motors and supports PWM speed control, making it ideal for applications requiring precise speed and direction adjustment. With motor voltage support from 4.5V to 25V and a continuous current output of 1.2A per channel, it is suitable for both low-power and moderate-power robotics projects. The shield plugs directly onto Arduino Uno and other compatible boards, simplifying the wiring process and improving efficiency.

Features:

• Based on dual L293D motor driver ICs with thermal shutdown and internal kickback protection.

• Supports up to 4 DC motors with individual 8-bit PWM speed control.

• Supports 2 stepper motors (unipolar or bipolar) with single coil, double coil, or interleaved stepping.

• Can drive 2 standard 5V servo motors via Arduino pin 9 and pin 10.

• Bidirectional control for forward and reverse operation.

• Motor operating voltage: 4.5V – 25V.

• Continuous current output: 1.2A per channel (peak 2.4A).

• Integrated 74HC595 shift register expands Arduino pins for easy motor direction control.

• Compatible with Arduino Uno, Mega, and other similar boards.

• Compact shield design for direct stacking on Arduino boards.

• High efficiency, simple usage, and widely used in robotics projects.

Specifications:

• Motor Driver IC: L293D (x2)

• Logic IC: 74HC595 shift register

• Supported Motors: 4 DC motors / 2 stepper motors / 2 servo motors

• Motor Voltage Range: 4.5V – 25V

• Continuous Current: 1.2A per channel (2.4A peak)

• Speed Control: 8-bit PWM (up to 256 levels)

• Servo Control: Pin 9 and Pin 10 of Arduino

• Protection: Thermal shutdown, internal kickback diodes

• Compatibility: Arduino Uno, Mega, Leonardo, and other development boards

• Applications: DIY robotics, RC cars, CNC machines, 3D printers, automation projects, motorized systems
