The Makerbase MKS Robin Nano V3.1 Eagle is a high-performance 32-bit 3D printer controller board designed for advanced printing applications. Powered by the STM32F407VGT6 MCU at 168MHz, this upgraded version of Robin Nano V2.0 supports up to 6-axis control and a wide range of LCD screens including MKS TS35, MKS H43, MKS MINI12864 V3, LCD12864, and LCD2004. Compatible with Marlin 2.0.x, Klipper, and Reprap firmware, it allows printing directly from SD cards and USB flash drives.
The Robin Nano V3.1 combines high-speed processing, multi-axis motor support, and robust connectivity options to ensure reliable and efficient 3D printing. It is ideal for makers, hobbyists, and professional users seeking advanced control over their 3D printer systems.
Click here to buy MKS TS35 3.5" Touch Screen LCD for this board.
Features:
-
High-Performance MCU: STM32F407VGT6 32-bit MCU at 168MHz for fast and stable processing.
-

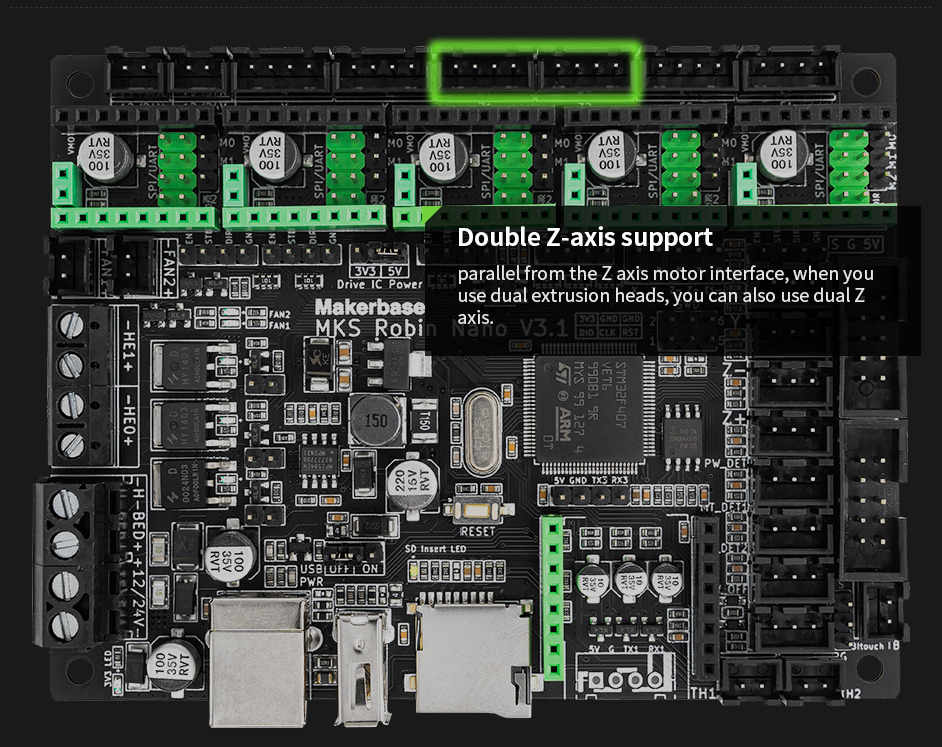

Multi-Axis Support: 6-axis motor control, including dual Z-axis sharing the same driver.
-

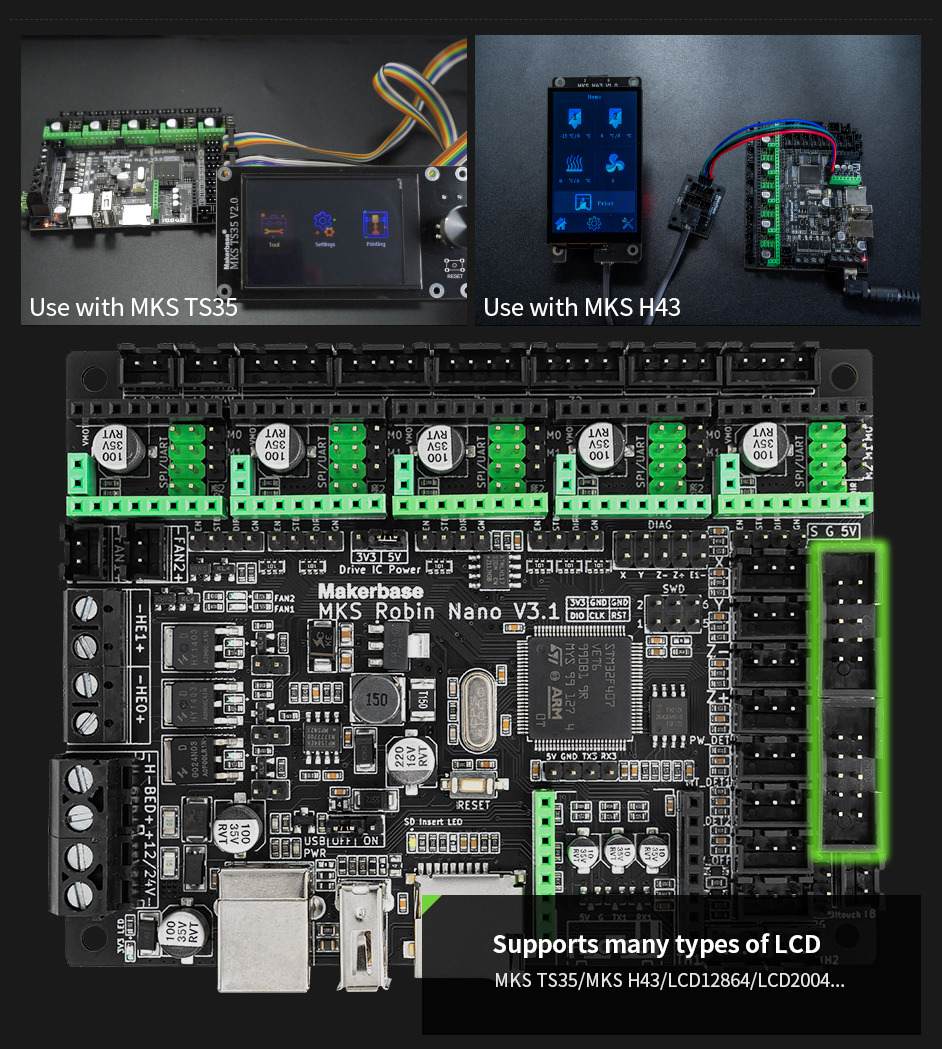

LCD Compatibility: Supports MKS TS35, MKS H43, MKS MINI12864 V3, LCD12864, LCD2004 displays.
-
Firmware Support: Marlin 2.0.x, Klipper, and Reprap (MKS version) firmware.
-

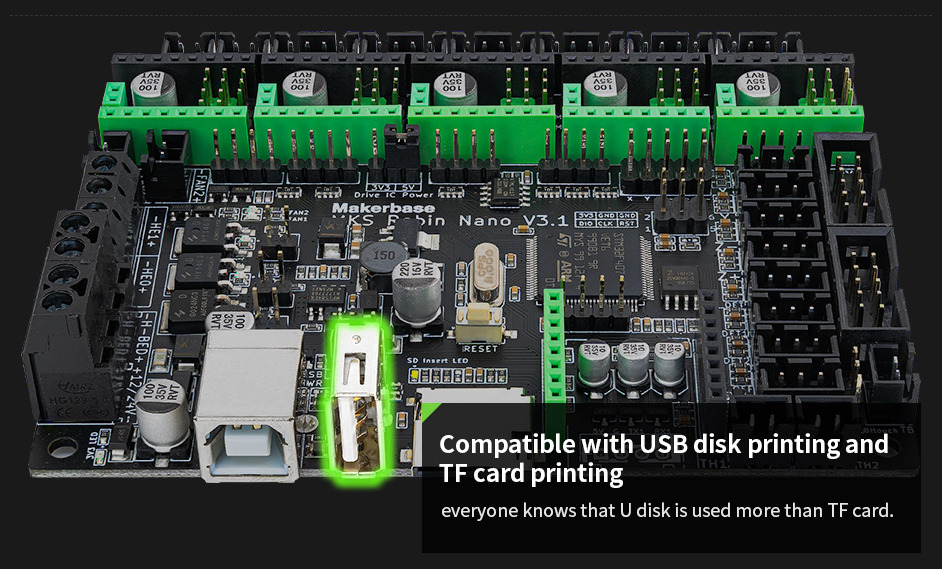

USB & SD Card Printing: Direct printing from TF/SD card and USB flash drives.
-

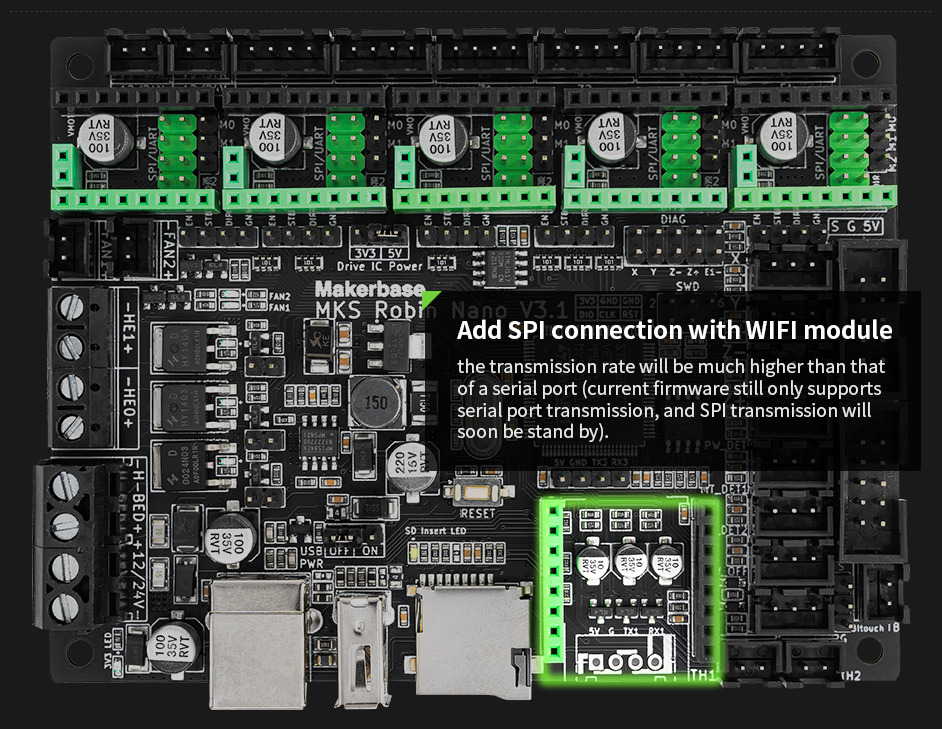

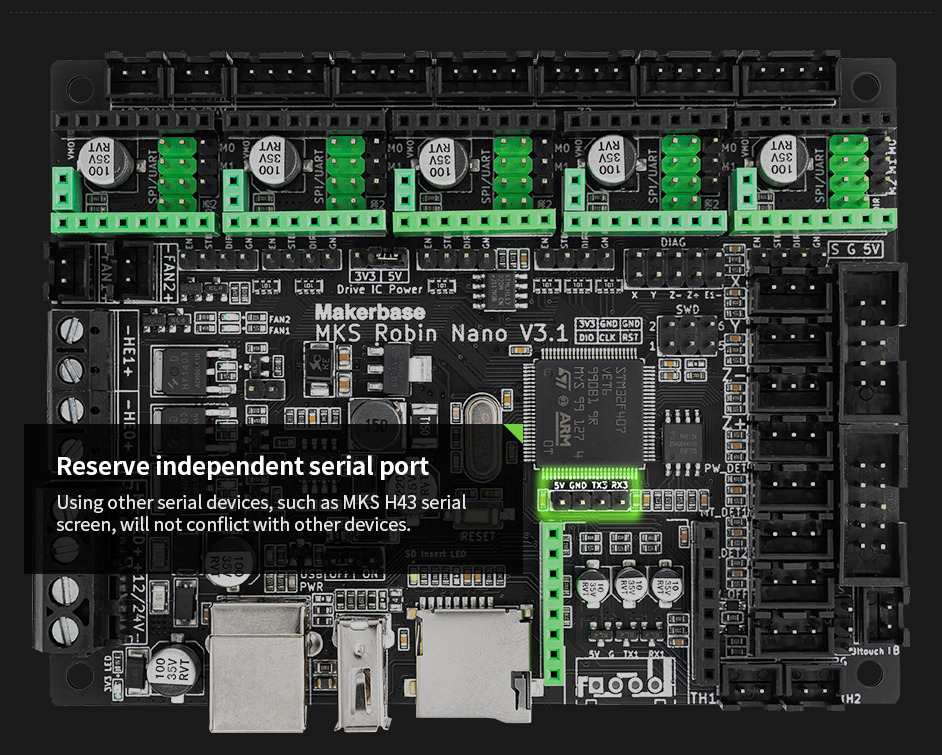

Connectivity Options: USART1+SPI2 for WiFi modules, independent UART3 serial port.
-
PWM Fan Control: 2 channels for temperature or part cooling fans.
-

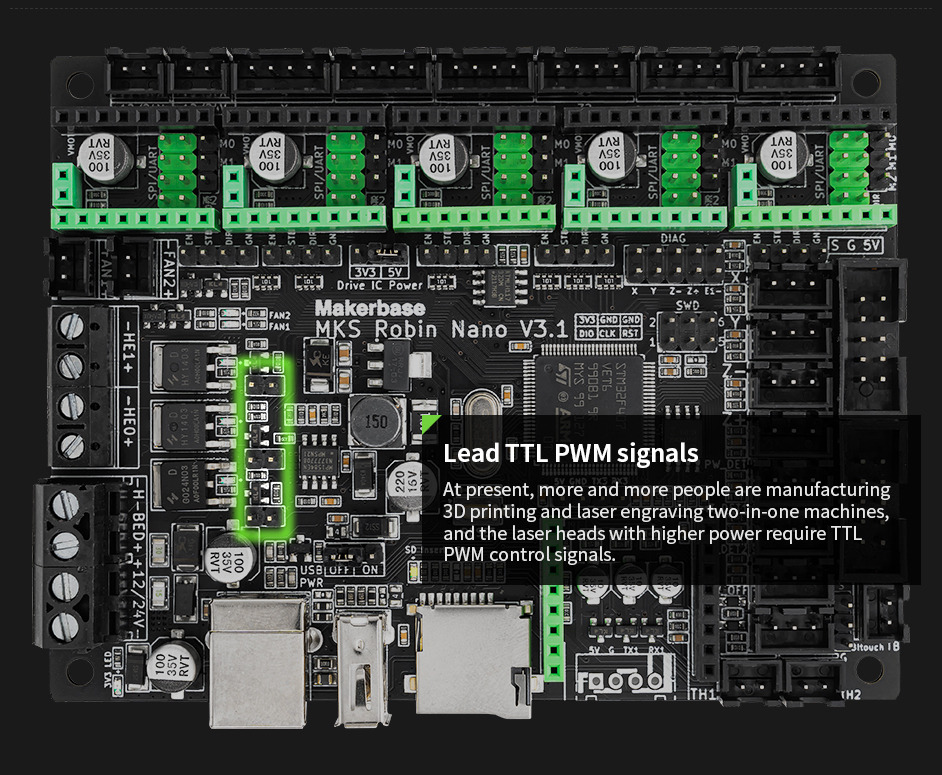

PWM TTL Support: Allows precise control of external devices.
-
Virtual USB Device: Supports USB connectivity for firmware updates and control.
-
Power Protection: TVS protection ensures board safety against voltage spikes.
-
EEPROM & SPI Flash: 4KB EEPROM and 8MB SPI Flash for firmware and configuration storage.

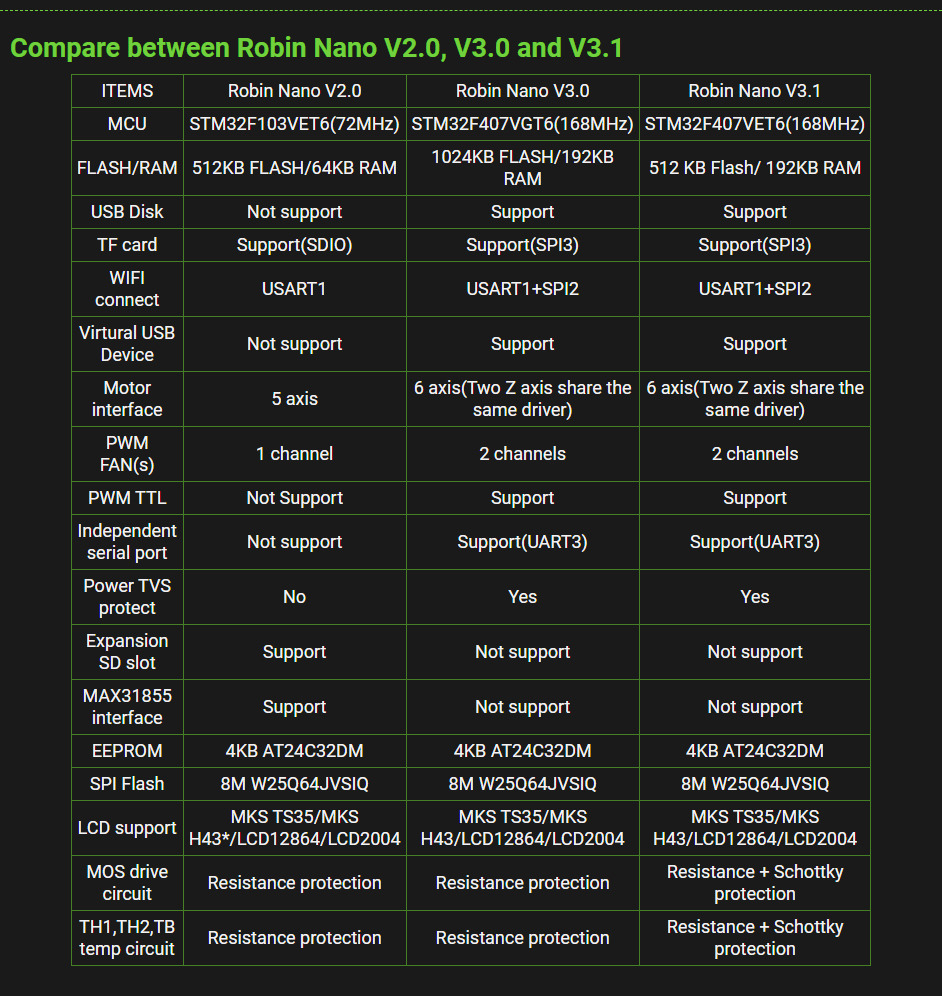

Specifications:
| MCU | STM32F407VGT6（168MHz） |
| FLASH/RAM | 1024KB FLASH/192KB RAM |
| USB Disk | Support |
| TF card | Support(SPI3) |
| WIFI connect | USART1+SPI2 |
| Virtural USB Device | Support |
| Motor interface | 6 axis(Two Z axis share the same driver) |
| PWM FAN(s) | 2 channels |
| PWM TTL | Support |
| Independent serial port | Support(UART3) |
| Power TVS protect | Yes |
| Expansion SD slot | Not support |
| MAX31855 interface | Not support |
| EEPROM | 4KB |
| SPI Flash | 8M |
| LCD support | MKS TS35/MKS H43/MKS MINI12864 V3/LCD12864/LCD2004 |
| Firmware | Marlin 2.0.x, Klipper, Reprap firmware(MKS version) |
