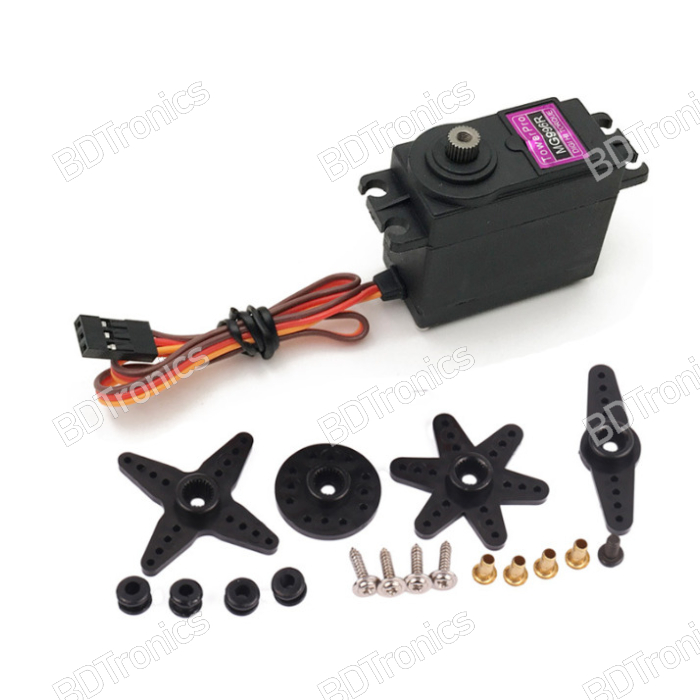

MG996R Metal Gear Digital Servo 180 Degree 13KG Torque is a high performance digital servo motor designed for robotics, automation, RC vehicles, Arduino projects, and industrial DIY applications in Bangladesh. This MG996R metal gear servo offers strong torque output up to 13kg-cm at 4.8V and higher torque at 6V, ensuring reliable operation for heavy-duty mechanical movements.

The metal gear construction provides enhanced durability, reduced backlash, and long-lasting performance under continuous load. With precise 180 degree rotation and fast response speed, this digital servo motor is ideal for robotic arms, pan-tilt systems, CNC mechanisms, RC cars, boats, and smart electronics projects. Its wide operating voltage range and heavy duty 300mm connector wire allow stable integration with Arduino, Raspberry Pi, ESP32, RC receivers, and other microcontrollers.

Features:

• Metal gear system for high durability and wear resistance

• High torque output suitable for heavy load and mechanical applications

• Digital servo control for accurate positioning and fast response

• 180 degree rotation for precise angular movement

• Compatible with Arduino, Raspberry Pi, ESP32, ESP8266, and RC systems

• Heavy duty 300mm connector wire for flexible installation

• Compact and standard servo size for easy mounting

• Suitable for robotics, automation, RC vehicles, and DIY electronics

• Stable performance under continuous and repetitive motion

Specifications:

• Model: MG996R Metal Gear Digital Servo

• Gear Type: All Metal Gears

• Rotation Angle: 180 Degree

• Operating Voltage: 4.8V – 7.2V

• Operating Speed (4.8V): 0.17 sec / 60° (no load)

• Operating Speed (6.0V): 0.13 sec / 60° (no load)

• Stall Torque (4.8V): Up to 13 kg-cm

• Stall Torque (6.0V): Up to 15 kg-cm

• Dimensions: 40mm x 19mm x 43mm

• Net Weight: 69g

• Package Weight: 75g

• Color: Black

• Connector Wire Length: 300mm

• Connector Type: Heavy Duty Servo Connector

How to Use

• Connect the signal wire to the PWM pin of Arduino, microcontroller, or RC receiver

• Supply power within the recommended 4.8V to 7.2V range

• Use an external power source for high torque or multiple servo setups

• Control rotation angle using PWM signals or servo control libraries

• Secure the servo firmly using screws or brackets to reduce vibration

Application Areas

• Robotic arms and humanoid robots

• RC cars, RC boats, and RC airplanes

• Pan-tilt camera mounts and tracking systems

• CNC machines and mechanical automation

• Smart home automation and DIY electronics

• Educational robotics kits and training projects

Safety and Usage Notes

• Do not exceed the recommended operating voltage

• Avoid stalling the servo for long durations to prevent overheating

• Ensure proper power supply for high torque applications

• Use metal servo horns for heavy-duty load handling
