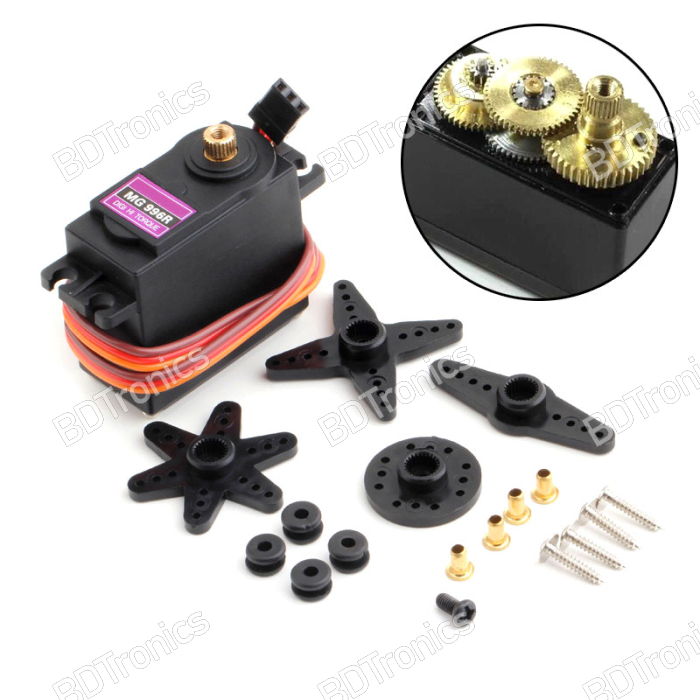

The MG996R Full Metal Gear Digital Servo Motor is a high-performance, heavy-duty servo designed for robotics, RC vehicles, automation systems, and DIY electronics projects. Known for its strong torque output and durable metal gear construction, this servo motor is ideal for applications requiring precise control, high strength, and long-term reliability.

This upgraded MG996R servo provides smooth rotation, high-speed response, and excellent torque performance, making it suitable for robotic arms, walking robots, RC cars, boats, airplanes, and industrial automation systems. With support for 360-degree rotation (modified/continuous operation), it can also be used in continuous rotation applications such as wheels and drive systems.

Built with all-metal gears, this servo ensures better wear resistance and higher load capacity compared to plastic gear servos. It operates within a voltage range of 4.8V to 7.2V, making it compatible with Arduino, Raspberry Pi, ESP32, and other microcontroller-based systems.

Features:

• High torque servo motor up to 13kg-cm at 4.8V and 15kg-cm at 6V

• Full metal gear construction for durability and heavy load handling

• Fast response speed for precise control

• Supports 360-degree continuous rotation (modified version)

• Wide operating voltage range from 4.8V to 7.2V

• High-quality motor for stable and smooth performance

• Heavy-duty 300mm connector wire for flexible installation

• Compatible with Arduino, ESP32, Raspberry Pi, and RC systems

• Suitable for robotics, automation, and RC applications

• Long lifespan with reliable mechanical performance

Specifications:

• Model: MG996R

• Type: Digital Servo Motor

• Gear Type: Full Metal Gears

• Operating Voltage: 4.8V – 7.2V

• Operating Speed:

  • 0.17 sec/60° @ 4.8V (no load)

  • 0.13 sec/60° @ 6.0V (no load)

• Stall Torque:

  • 13 kg-cm @ 4.8V

  • 15 kg-cm @ 6.0V

• Rotation: 360 Degree (Continuous / Modified)

• Dimensions: 40 × 19 × 43 mm

• Weight: 69 g (Net), 75 g (Package)

• Connector Wire Length: 300 mm

How to Use:

• Connect the servo's red wire to VCC (5V–6V), brown/black to GND, and yellow/orange to signal pin

• Use PWM signal from microcontroller (Arduino, ESP32, etc.) to control movement

• For continuous rotation, control speed and direction via PWM signal

• Mount the servo securely using screws in your project

• Attach servo horn or arm to the output shaft

• Avoid exceeding recommended voltage to prevent damage

• Use an external power supply for stable performance in high load applications

Applications:

• Robotic arms and robotic joints

• Line follower and mobile robots

• RC cars, boats, airplanes

• Automation systems and actuators

• Camera pan-tilt systems

• DIY engineering and electronics projects

• Industrial control mechanisms

• Smart home automation devices

Package Includes:

• 1 × MG996R Metal Gear Servo Motor
